Venduto

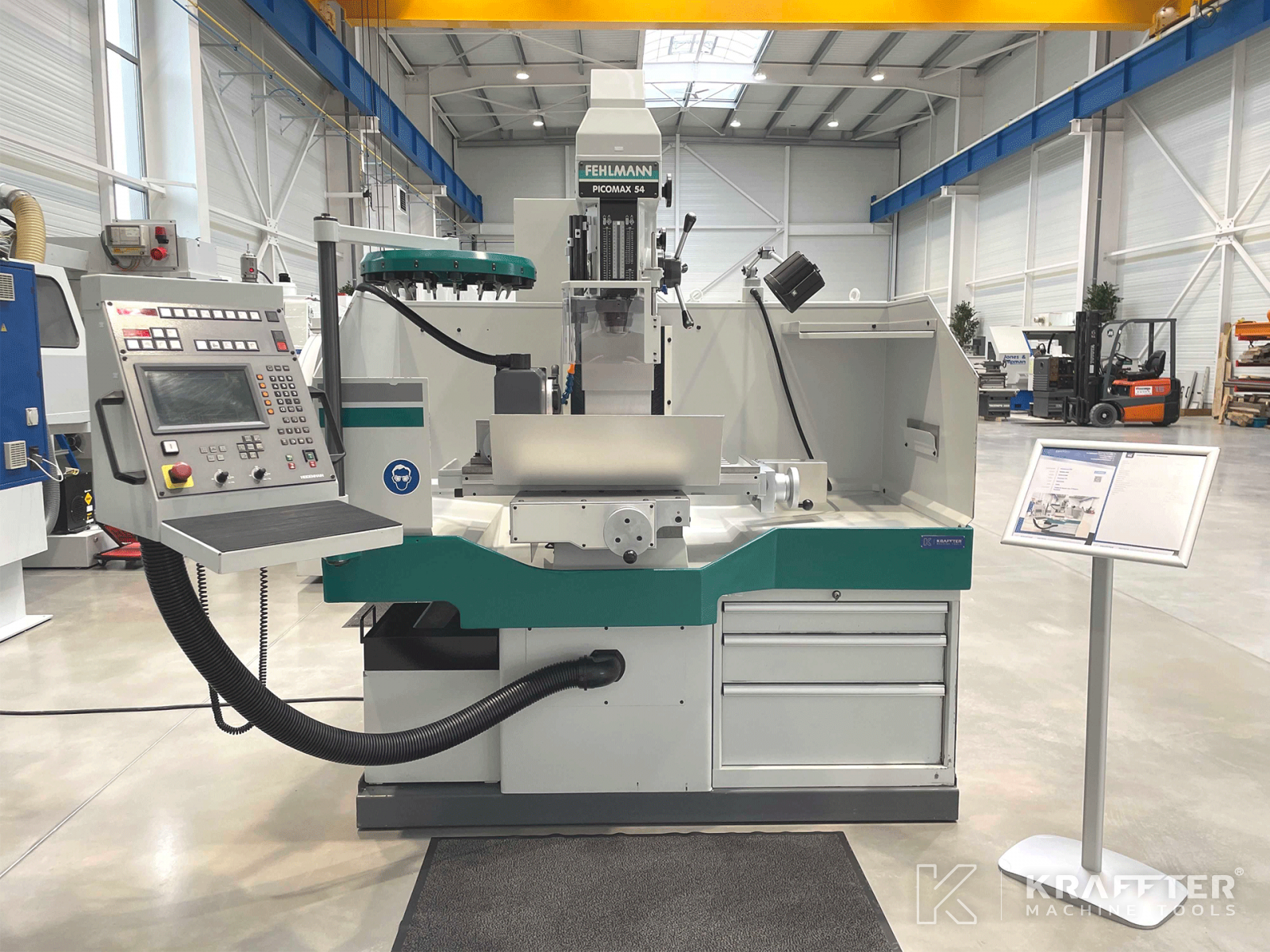

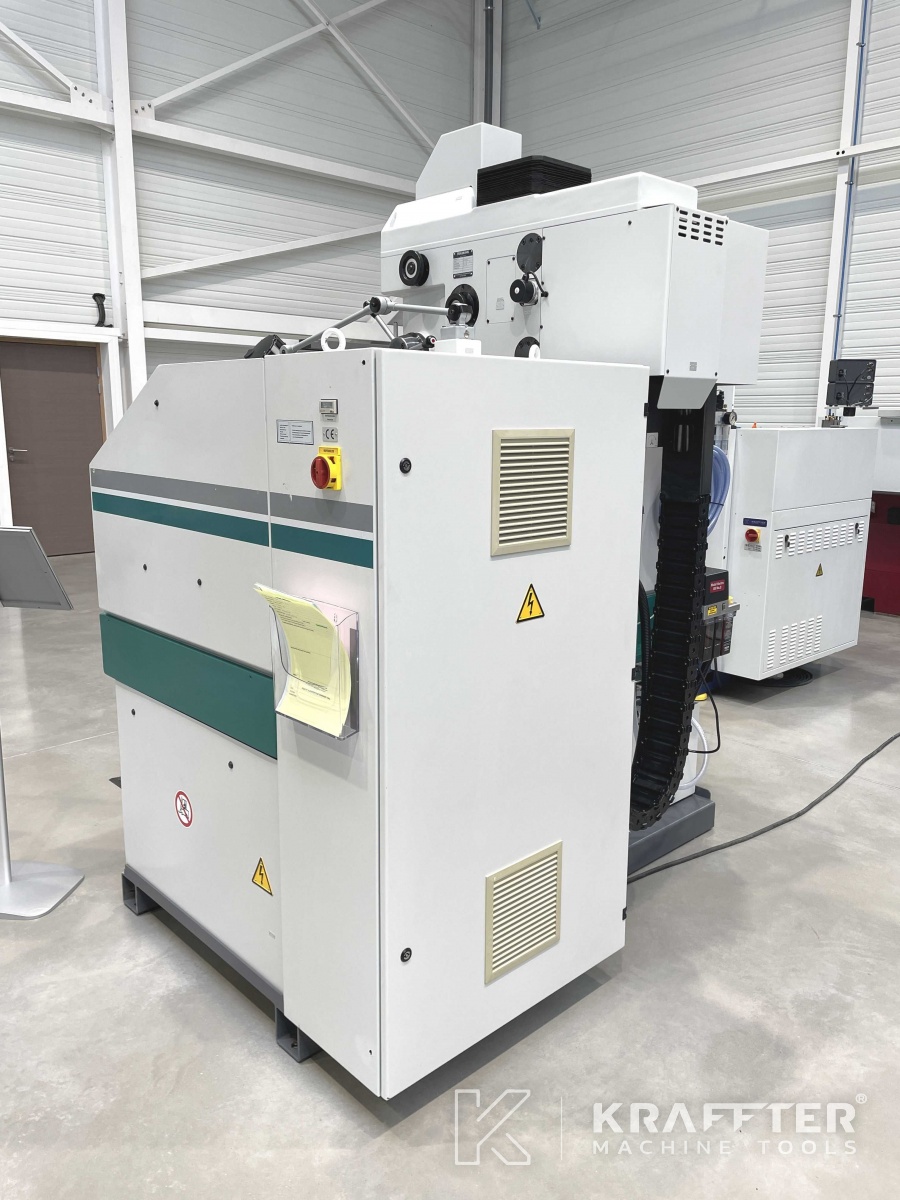

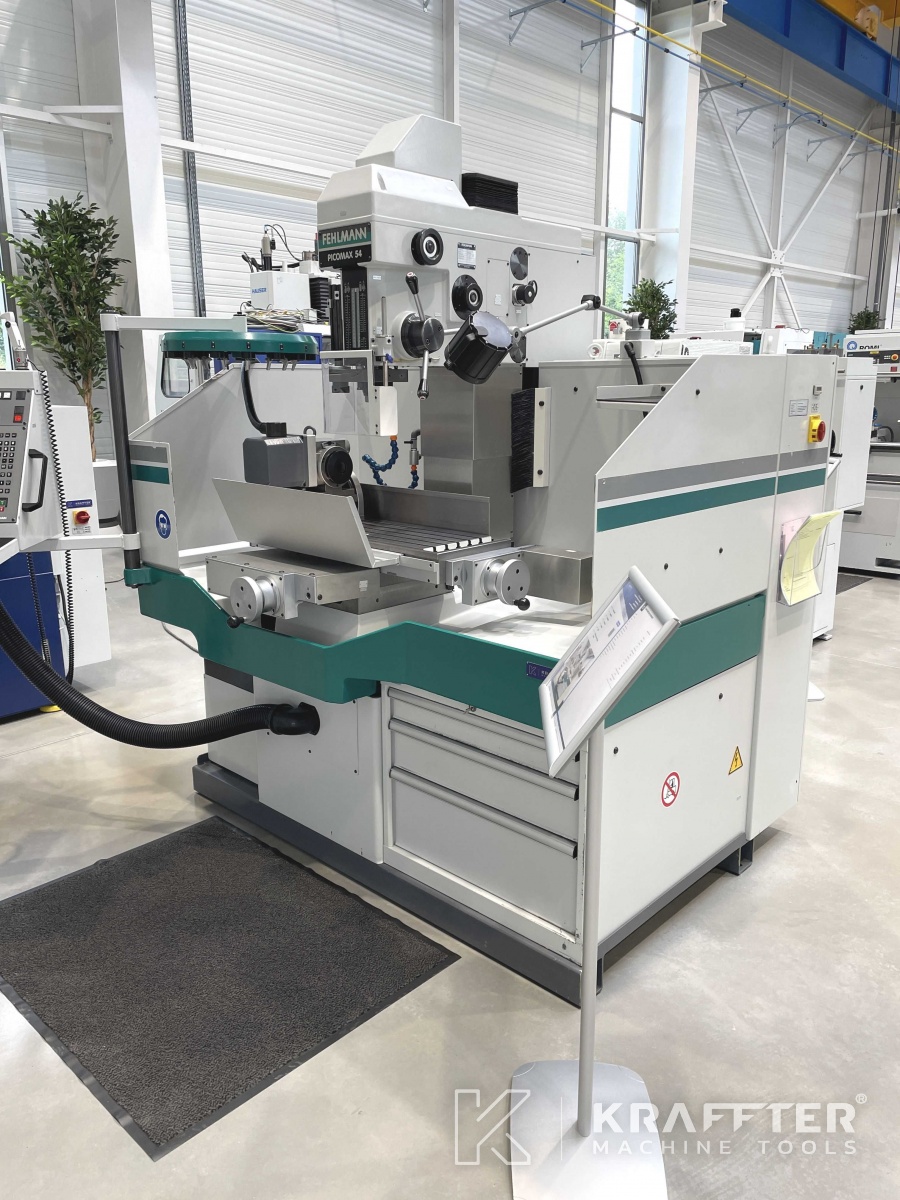

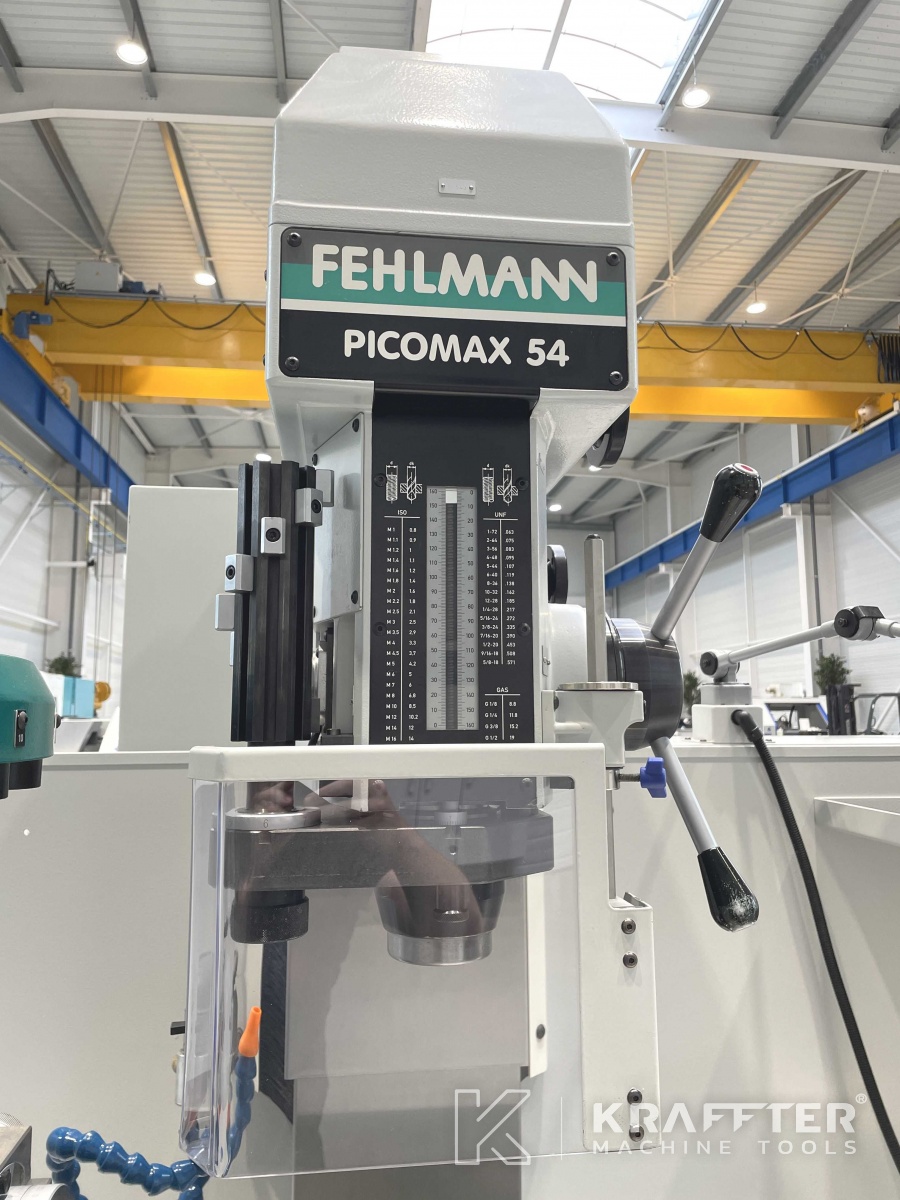

Tipo di macchina: Fresatrice CNC
Marca : FEHLMANN
N° de stock: 20689-998

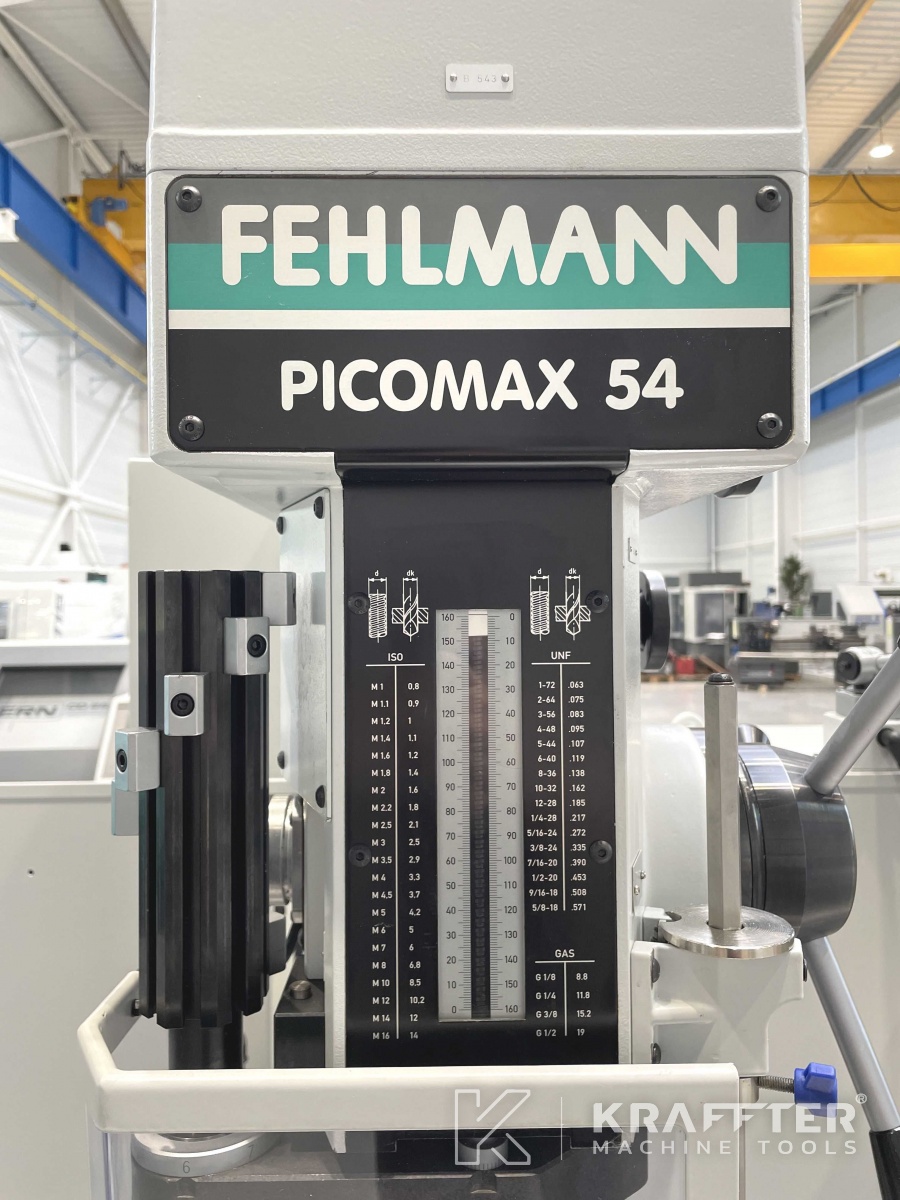

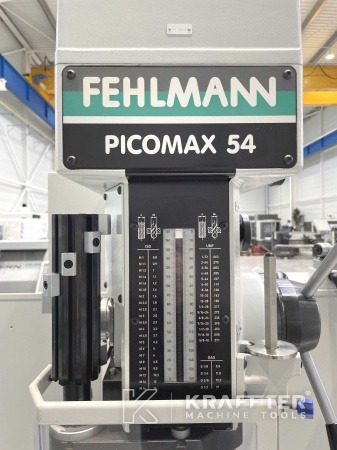

Modello : Picomax 54
Anno : 2002
Posizione : 73240 St-Genix-les-Villages, FRANCE
MACCHINA UTENSILE VENDUTA
Interessato a un modello simile?
Lasciaci i tuoi recapiti:
Caratteristiche tecniche
N. serie.
14002140

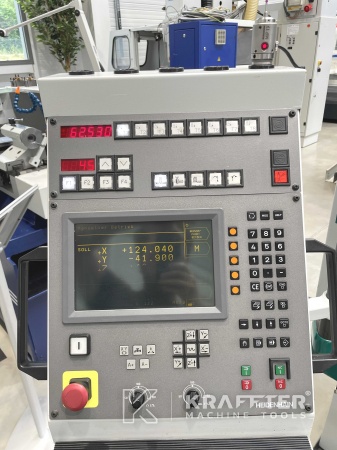

Tipo di CN

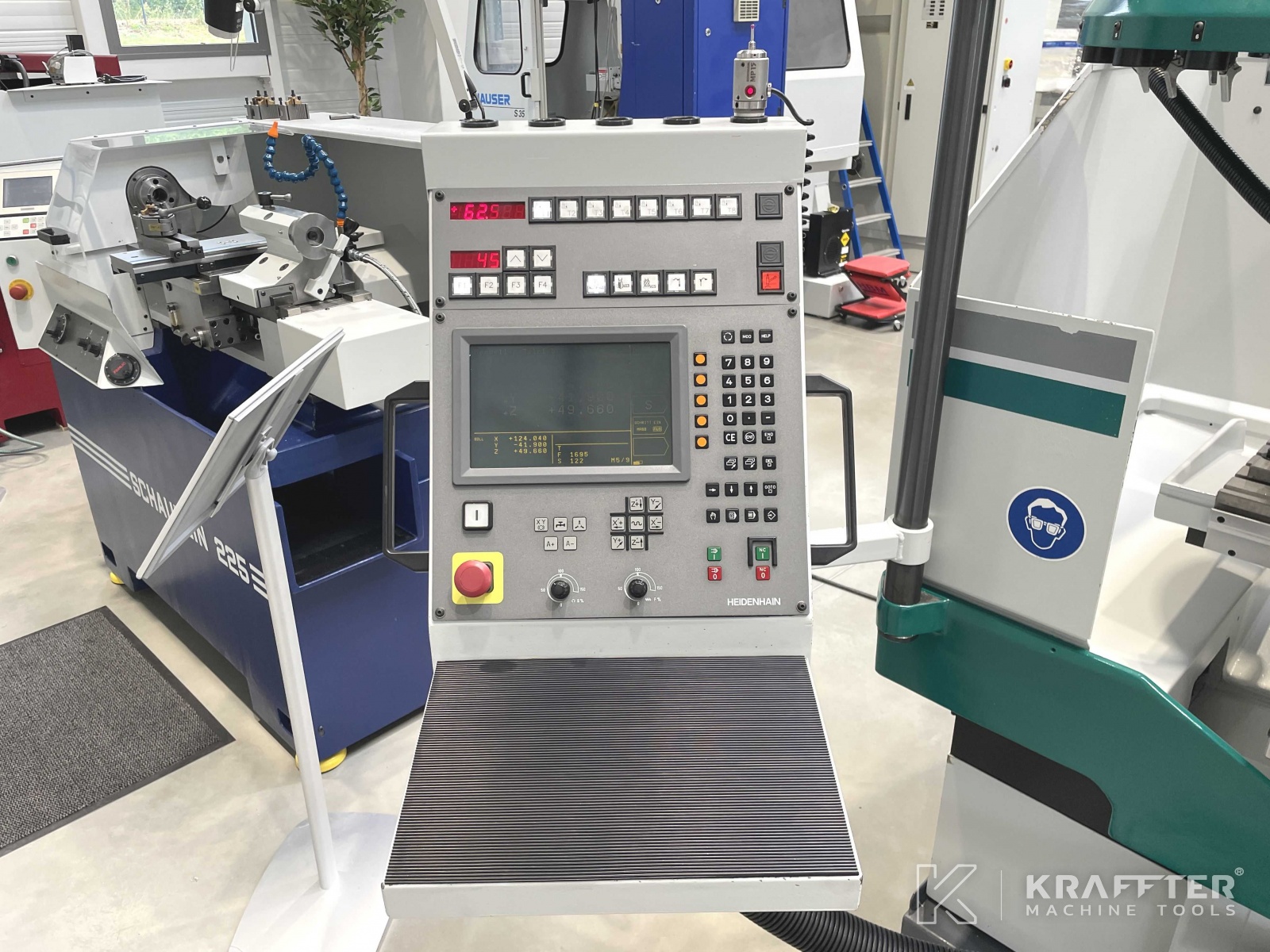

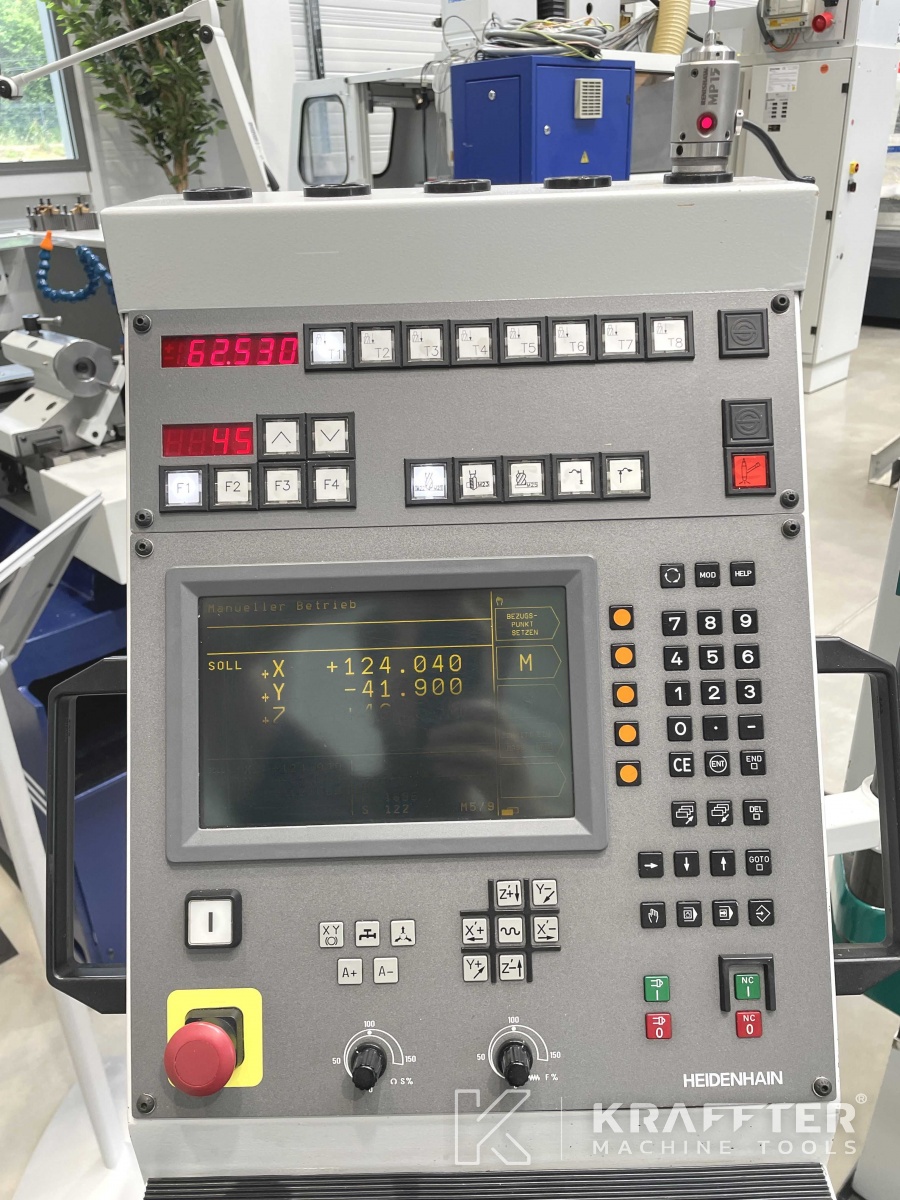

HEIDENHAIN TNC 310
Numero di assi
4
Corsa dell'asse X
500 [mm]
Corsa dell'asse Y
260 [mm]
Corsa dell'asse Z
490 [mm]
Corsa del manicotto di foratura
160 [mm]
Distanza massima mandrino/tavola
610 [mm]

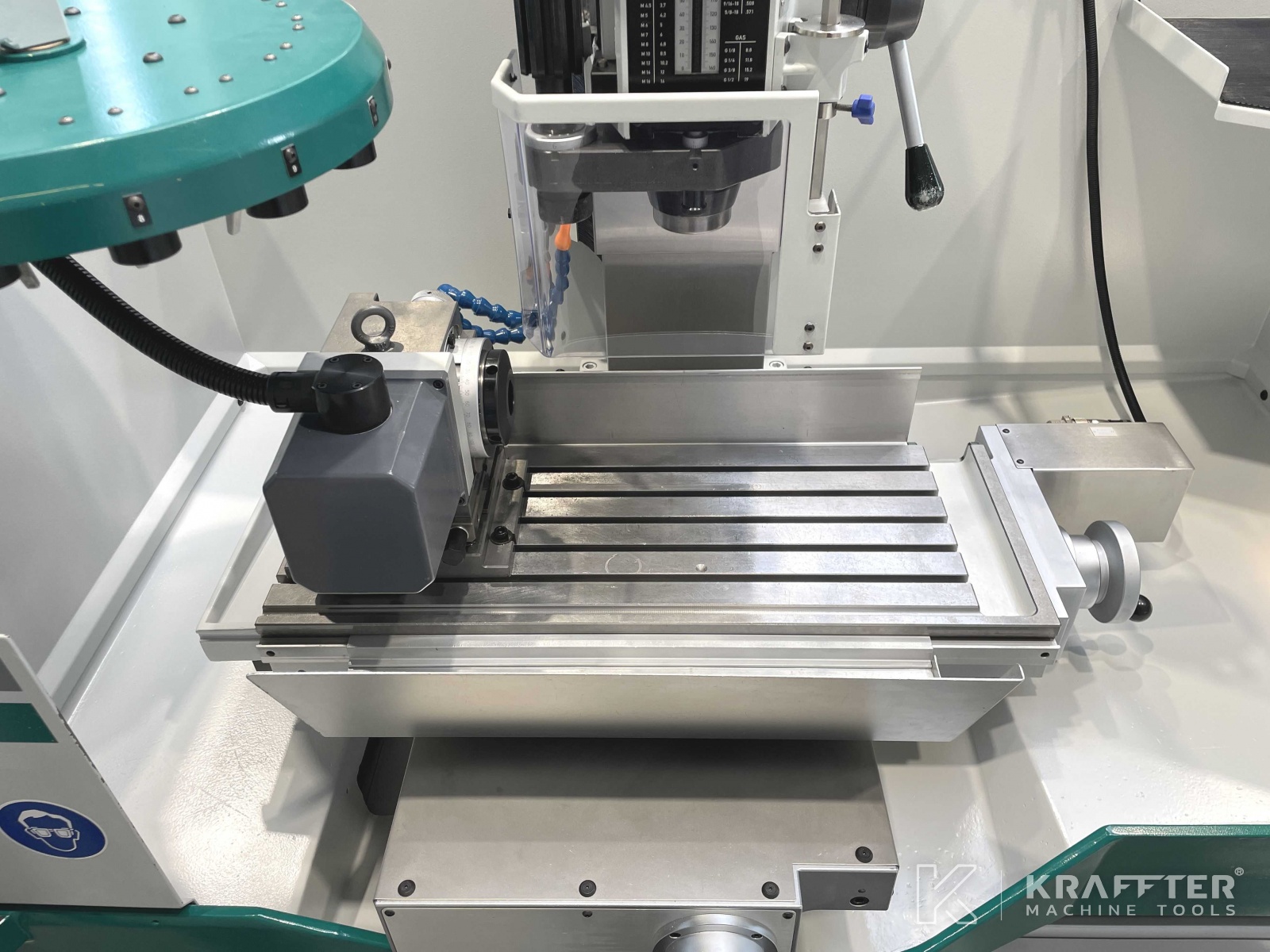

Lunghezza del tavolo
880 [mm]
Larghezza del tavolo
320 [mm]
Peso massimo ammissibile sul tavolo
300 [Kg]
Attacco mandrino
SF32
Velocità minima mandrino
100 [giri/min]
Massima velocità mandrino
9000 [giri/min]
Tastatore pezzo
RENISHAW MP15

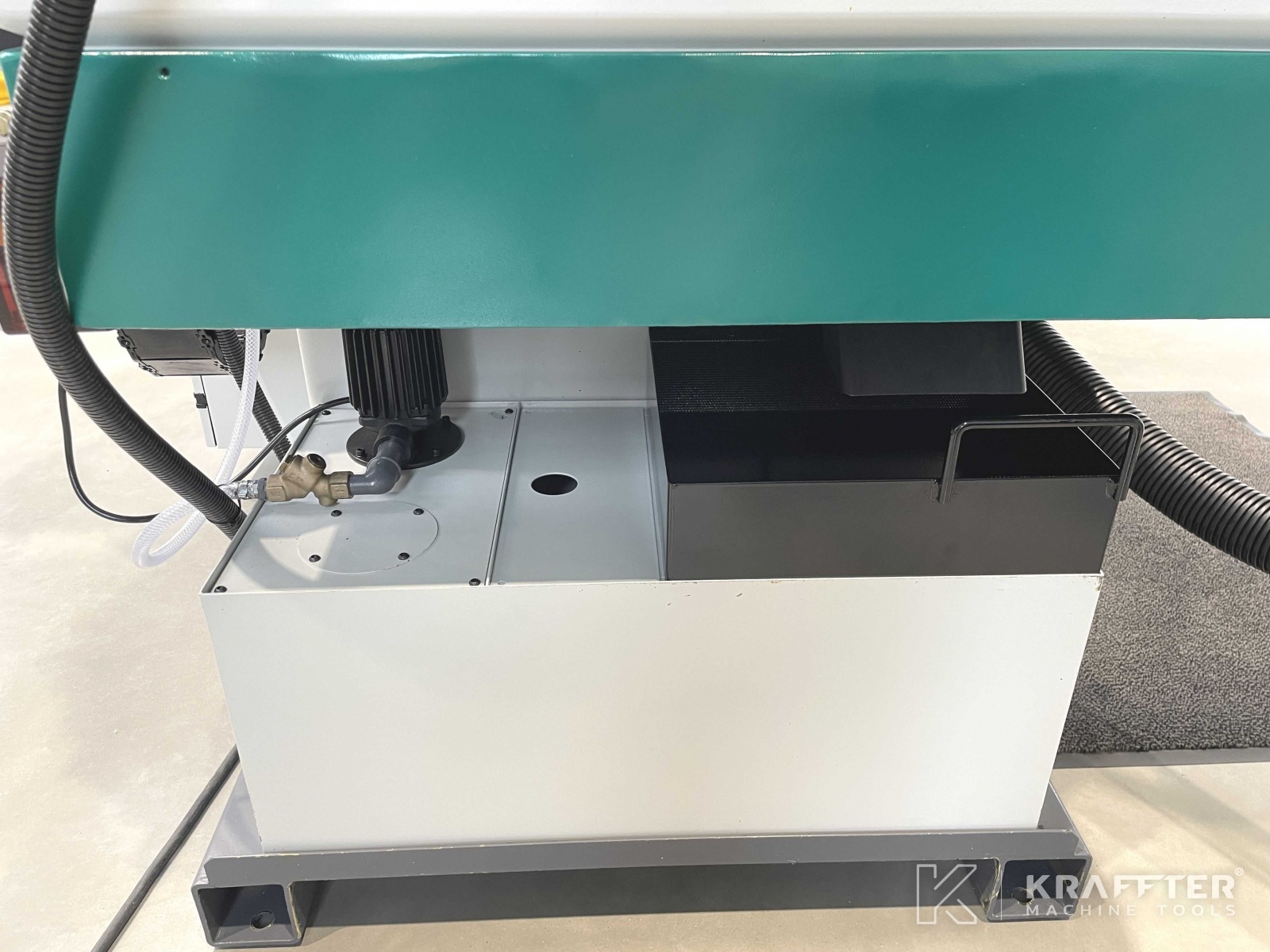

Capacità del vassoio di irrigazione
100 [l]

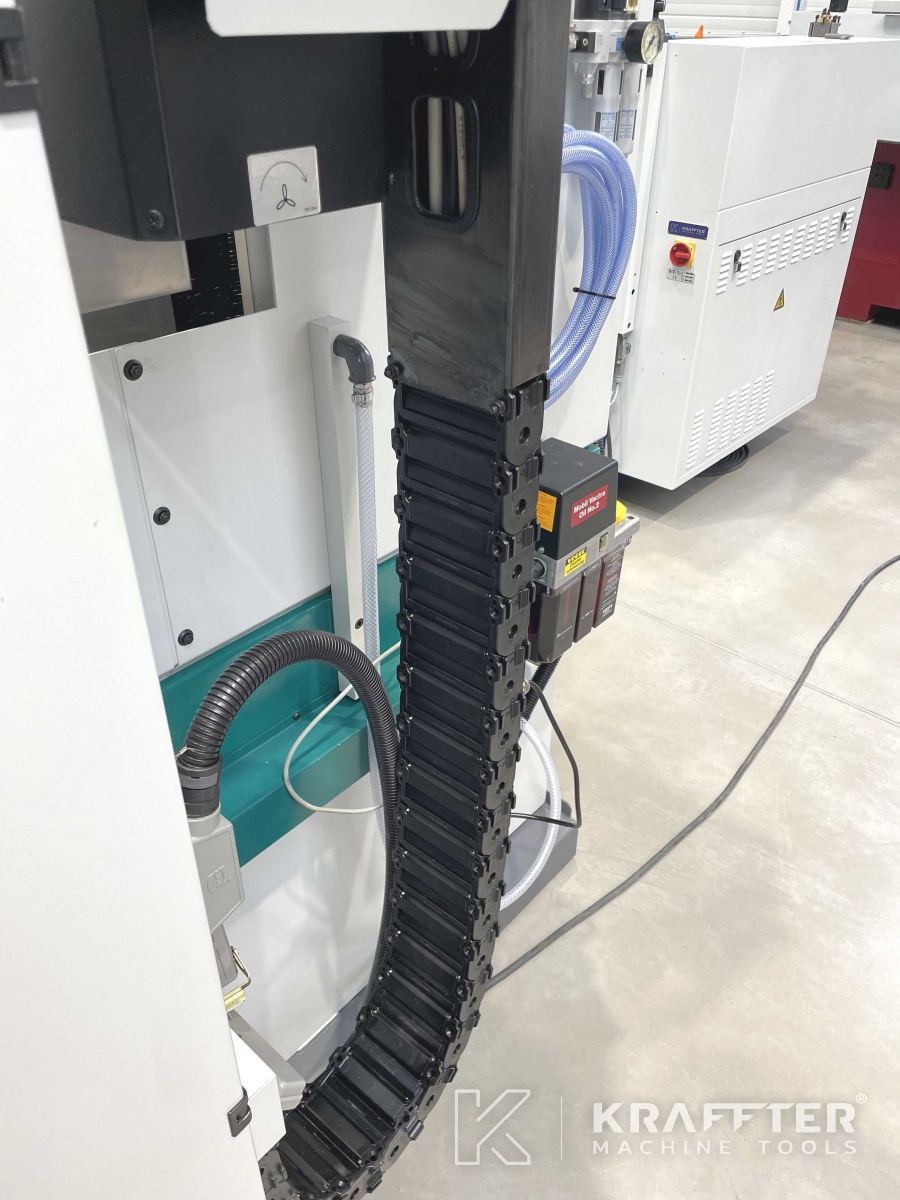

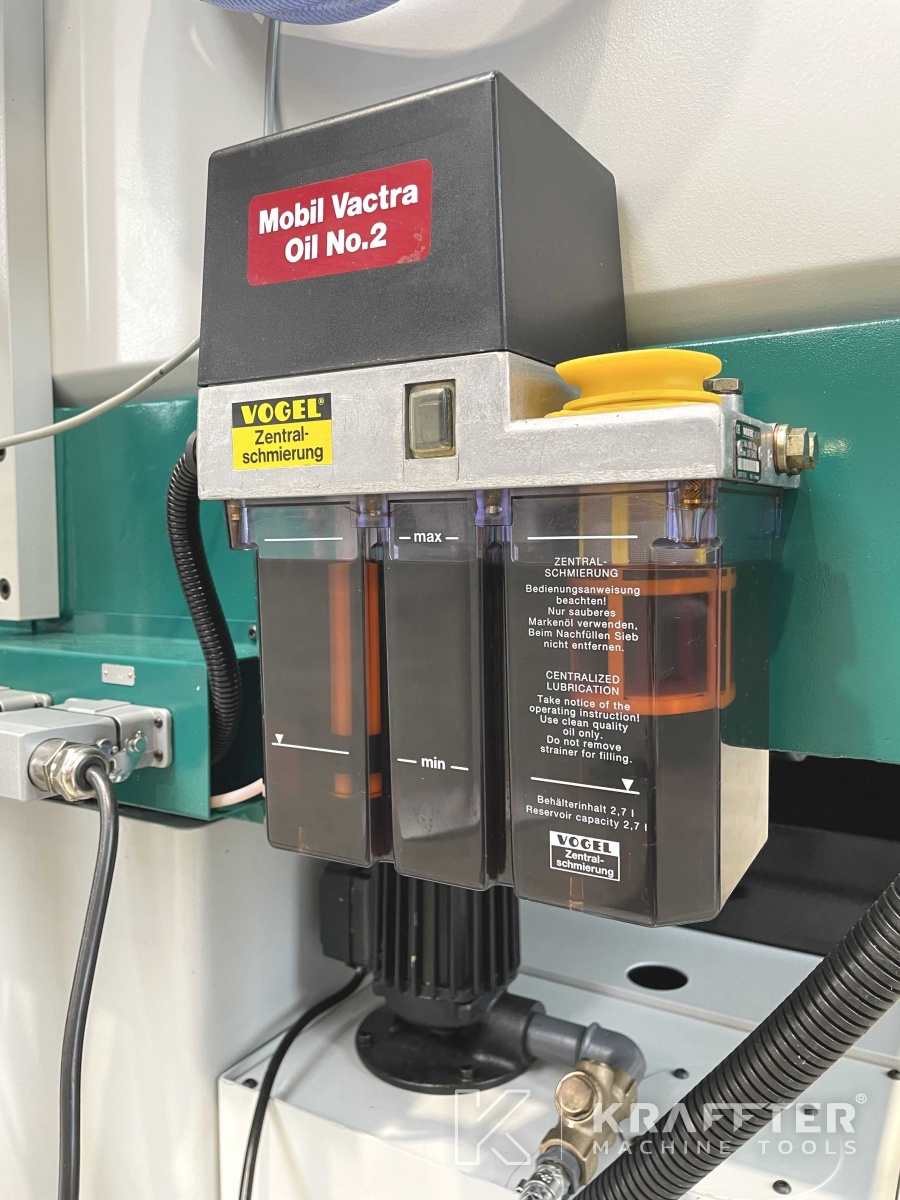

Lubrificazione centralizzata
Automatique - WILLY VOGEL
Tensione di alimentazione
400 [V]
Dimensioni
2200 x 2100 x 2250 [mm]
Peso
2450 [Kg]

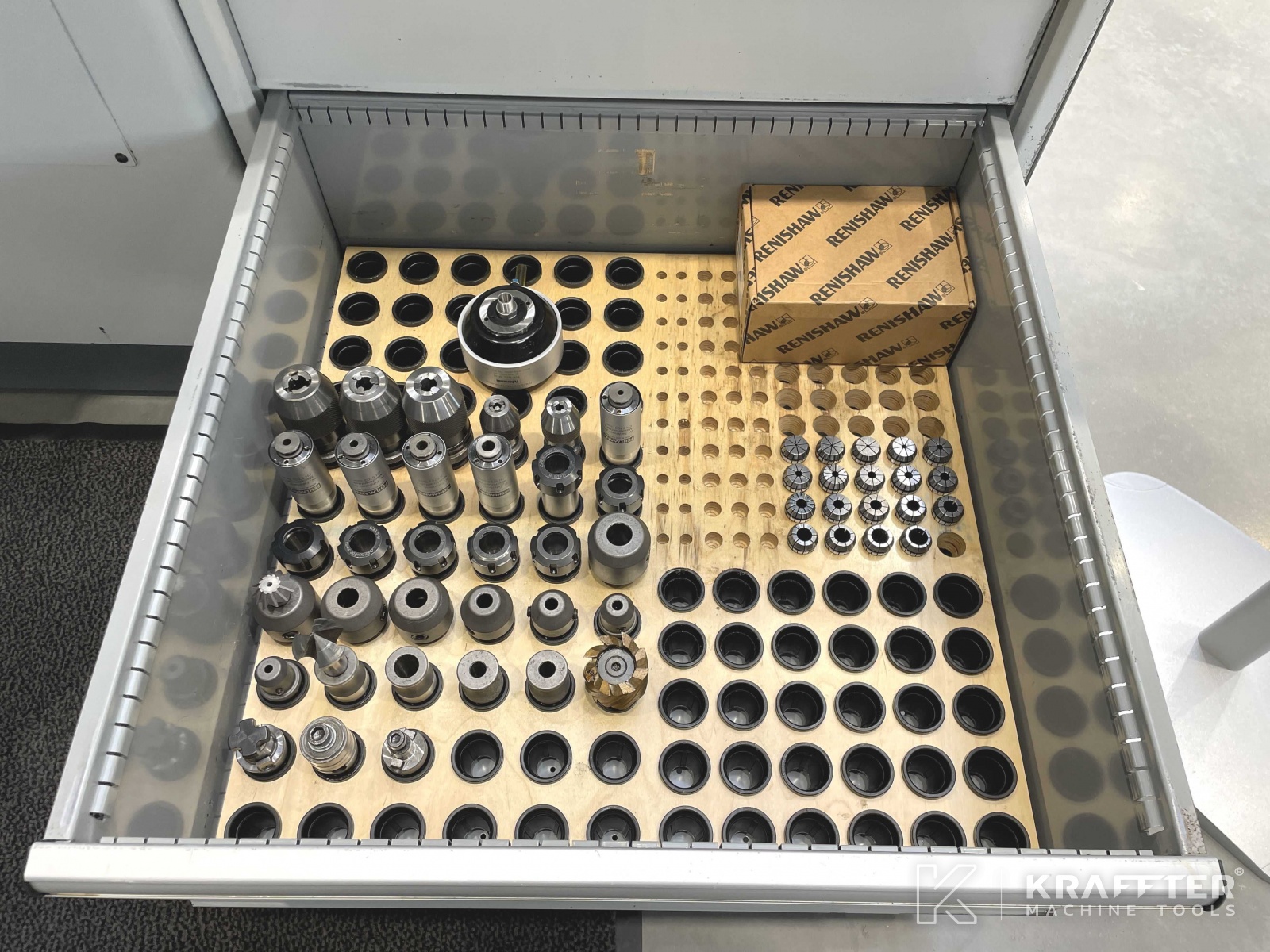

Ulteriori informazioni

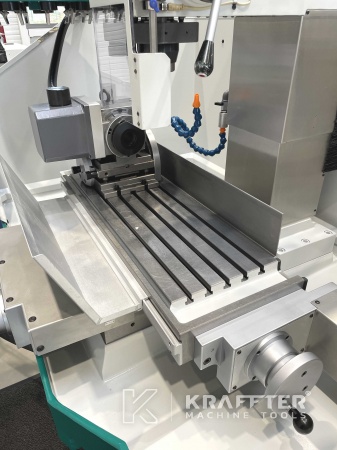

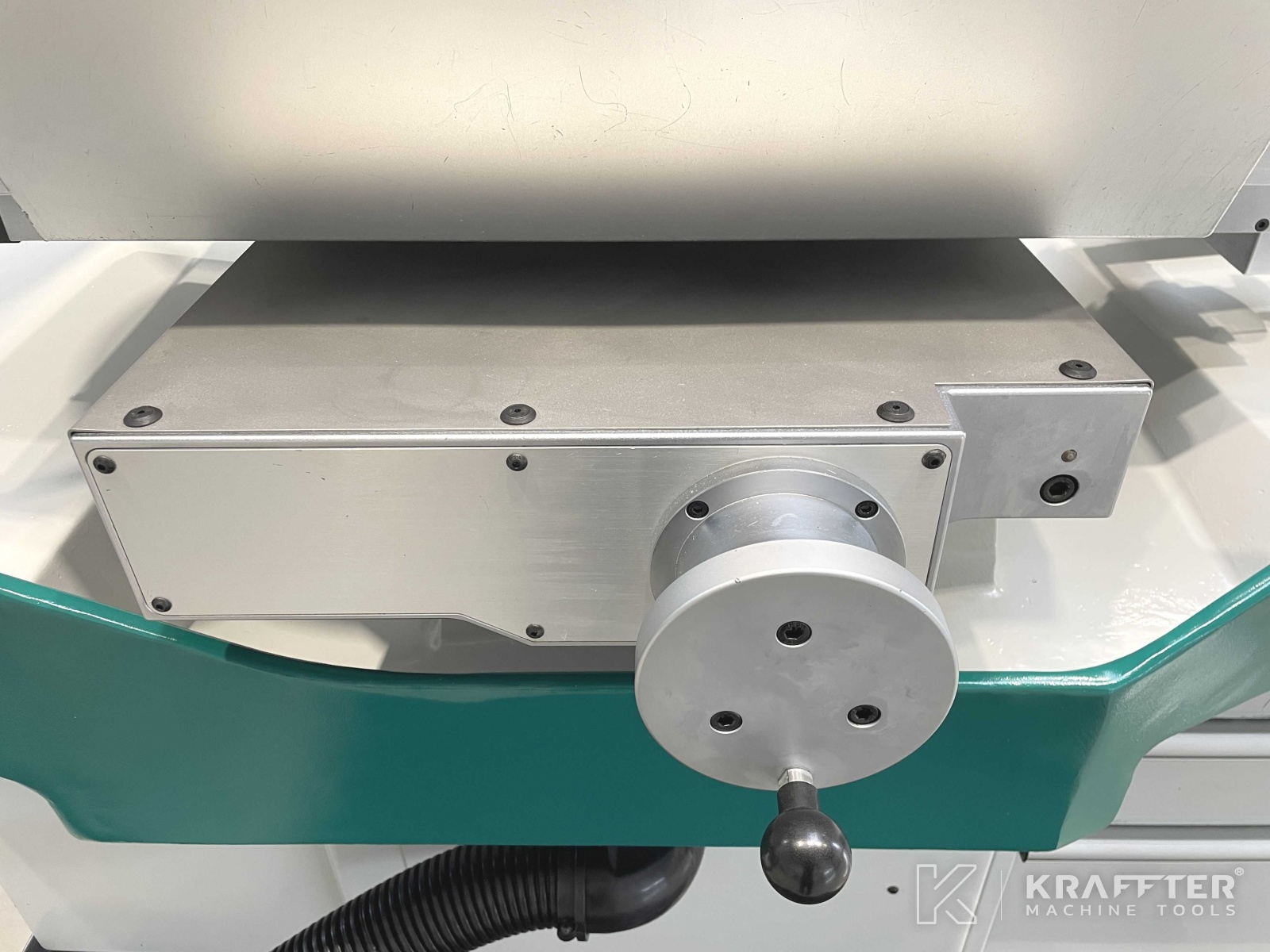

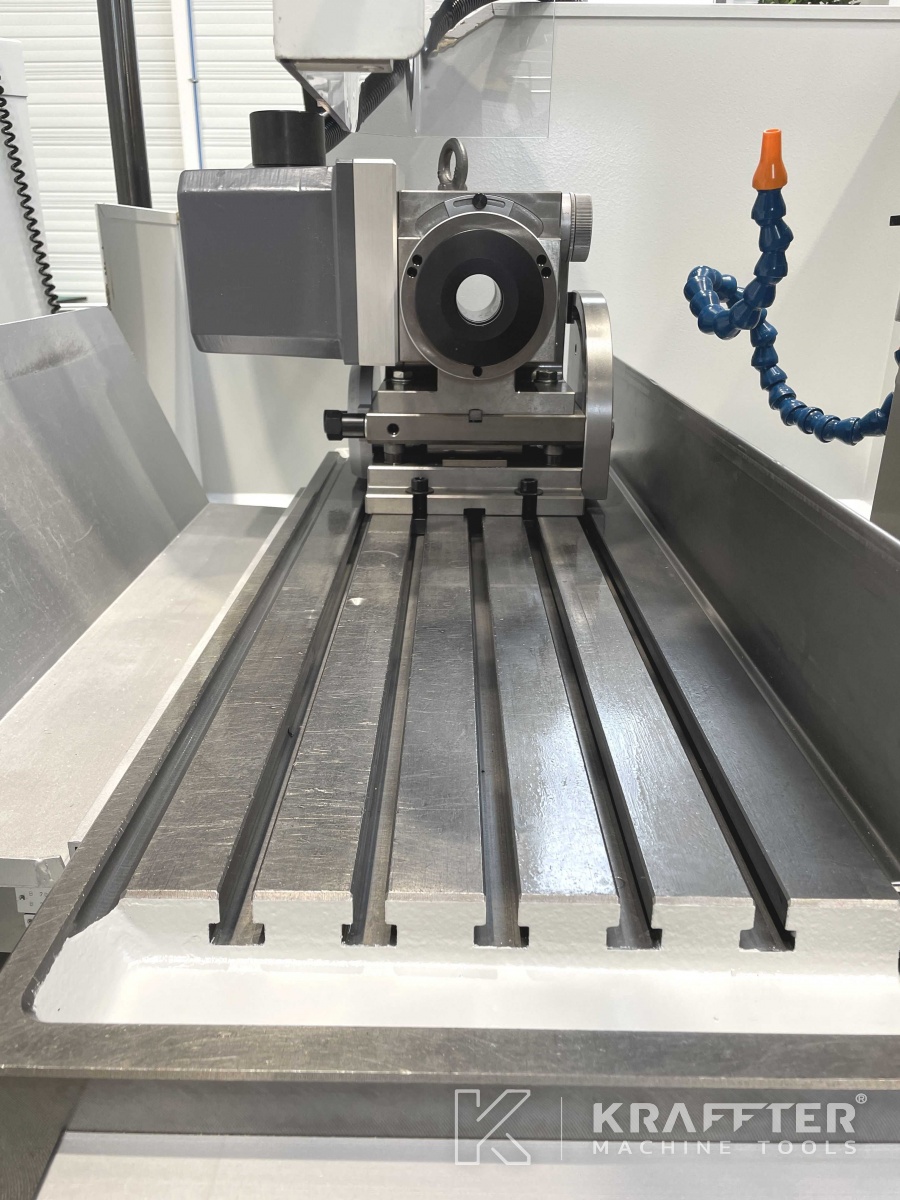

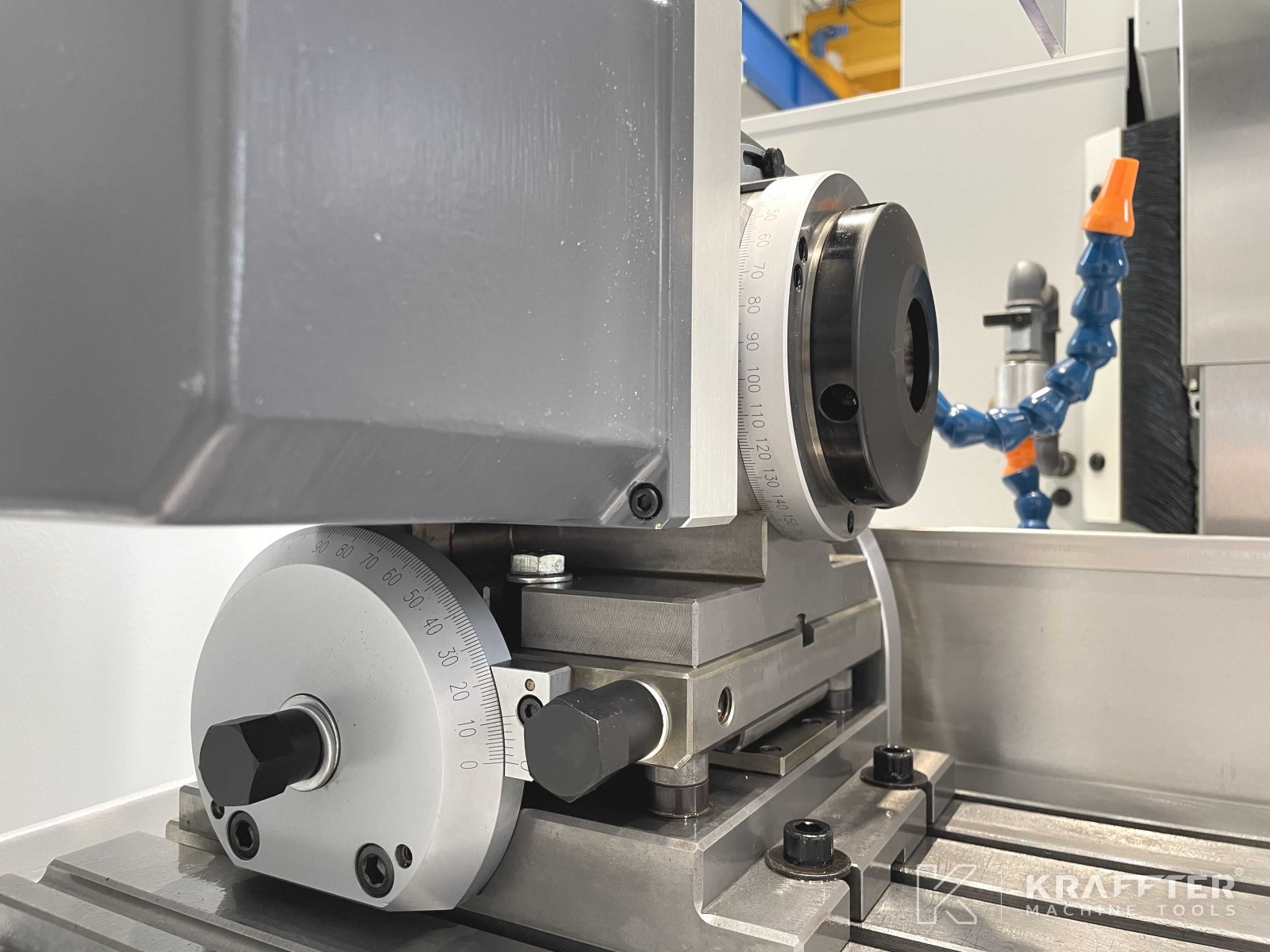

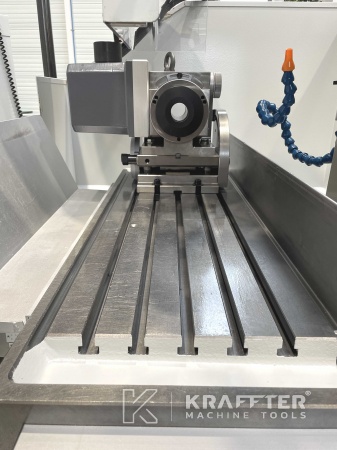

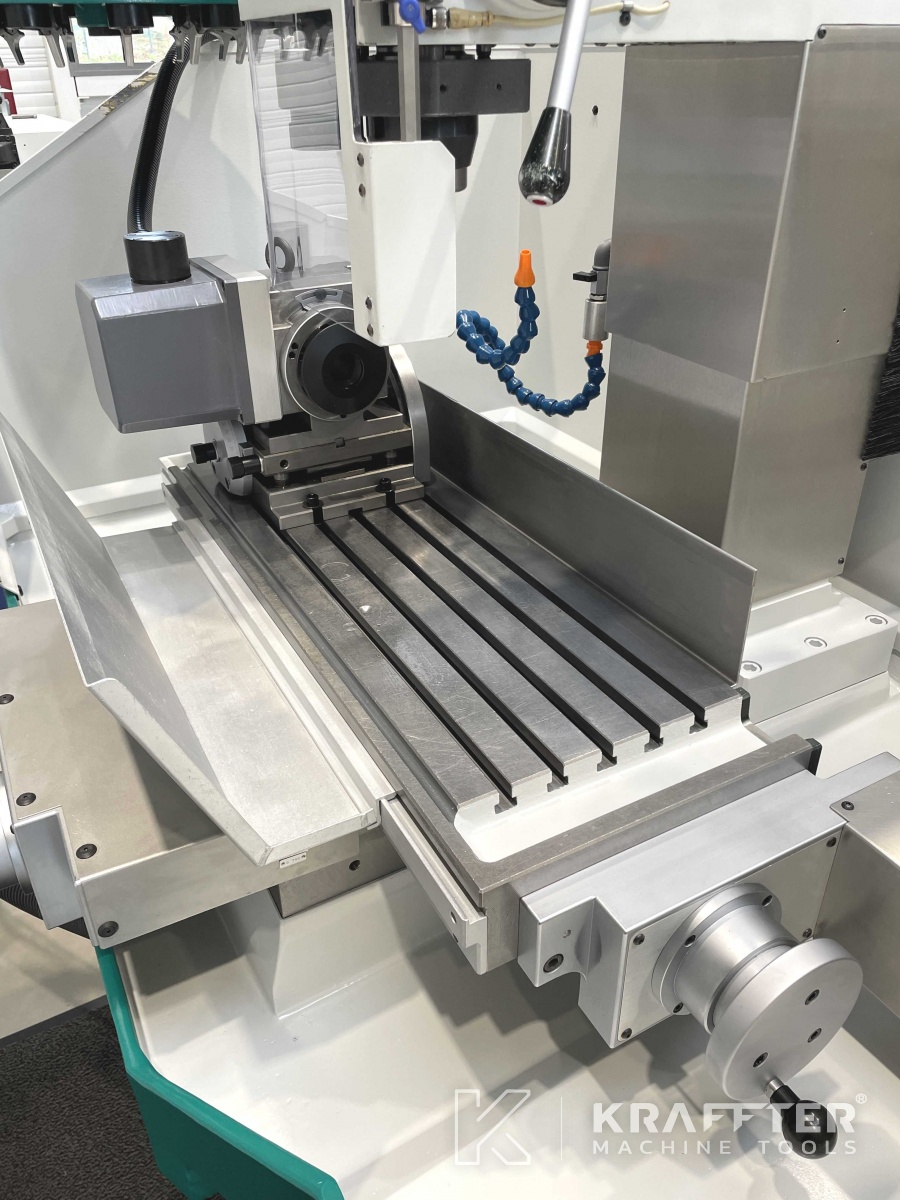

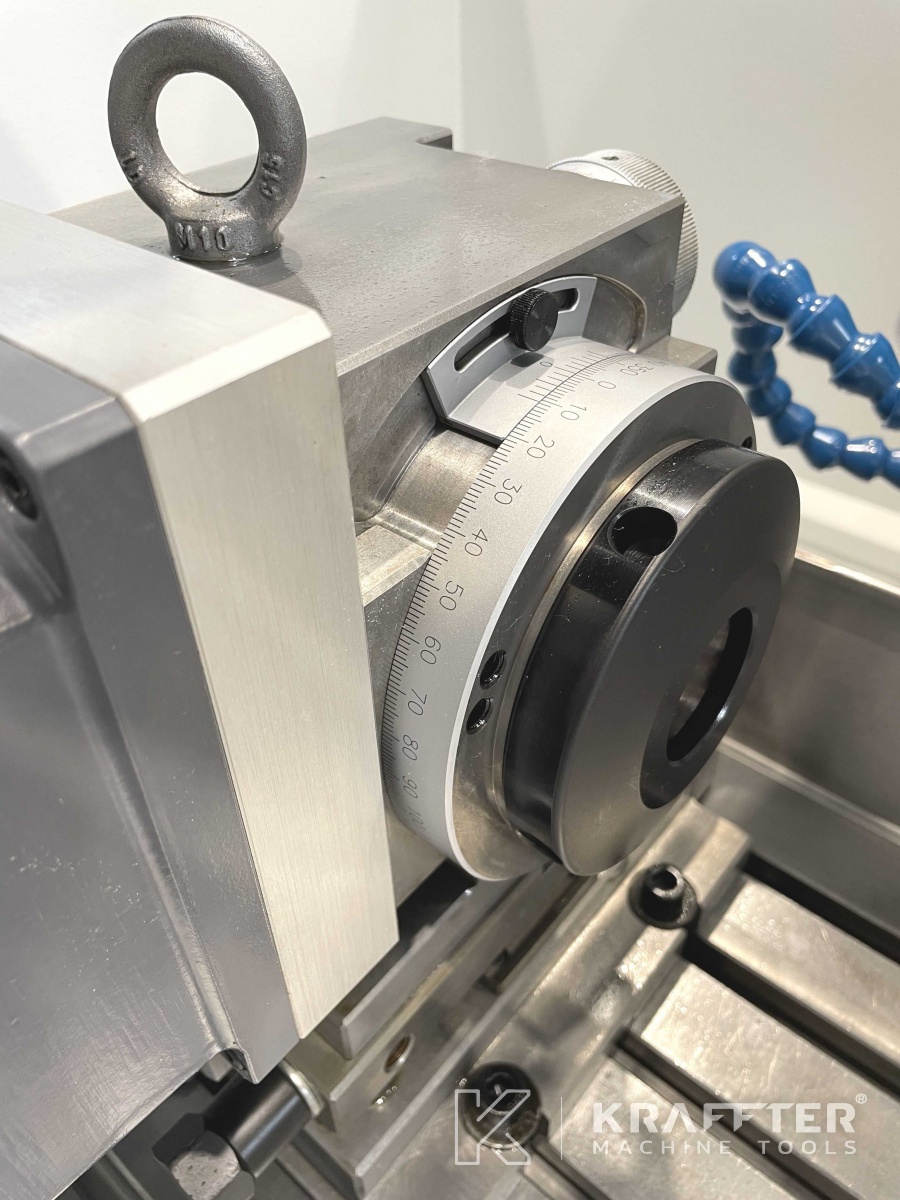

x1 4th axis FEHLMANN type AT100 CNC AC for F38 collets - indexation 0.001°

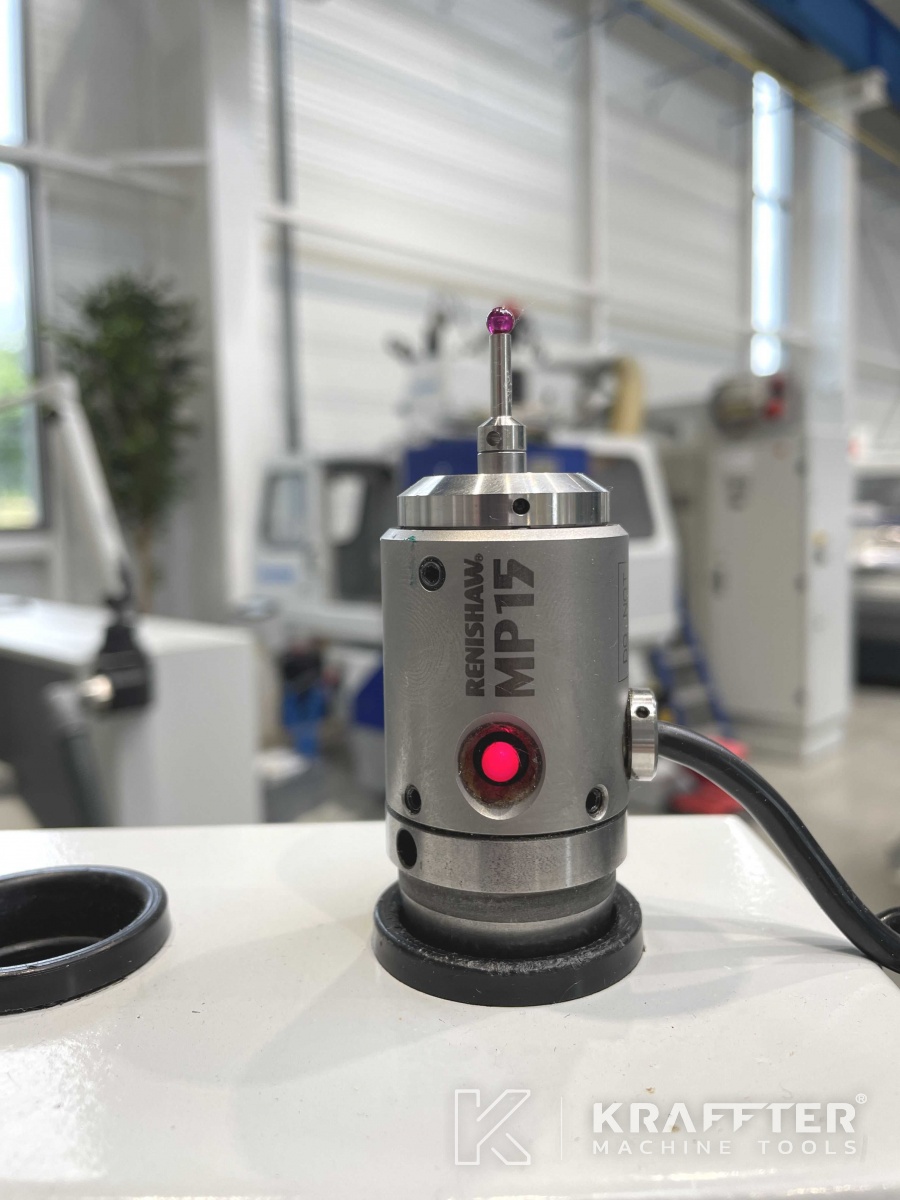

x1 RENISHAW MP15 3D touch probe
x1 speed-up head type NX6 SF32 (multiplied number revolution 6x) - max. revolution : 25'000 rpm

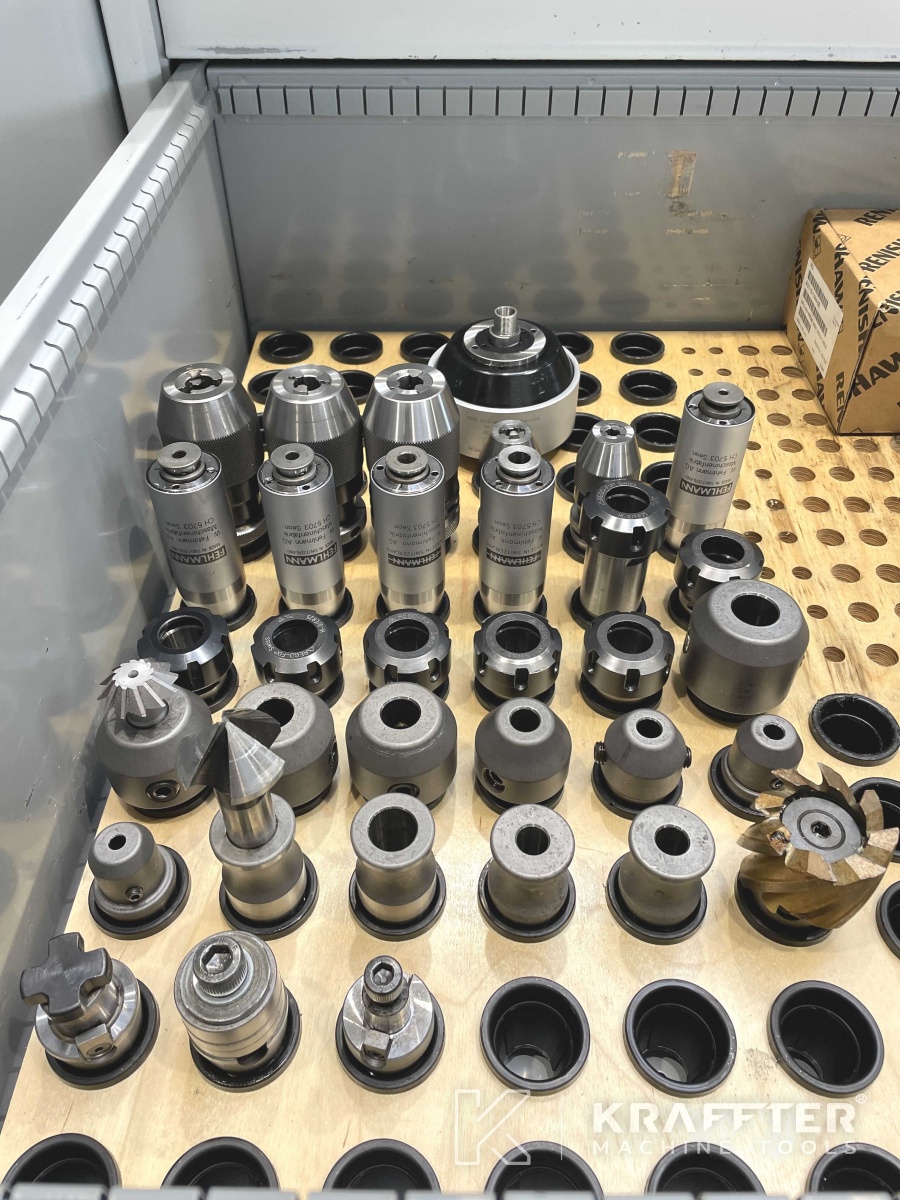

x2 reduction sleeve attachments SF32 to MT2 with tenon
x2 reduction sleeve attachments SF32 to MT1 with tenon
x3 precision keyless drill chucks ALBRECHT 1-13 [mm]
x2 precision keyless drill chucks ALBRECHT 0-6.5 [mm]
x6 collet chucks ESX25 with locking nut
x1 collet chucks ESX25 with locking nut - extended
x1 tapping head with preset slipping clutch with axial float in one dircetion only M4
x1 tapping head with preset slipping clutch with axial float in one dircetion only M5
x1 tapping head with preset slipping clutch with axial float in one dircetion only M6
x1 tapping head with preset slipping clutch with axial float in one dircetion only M8
x1 tapping head with preset slipping clutch with axial float in one dircetion only M10
x1 milling chuck Ø8 [mm]
x1 milling chuck Ø10 [mm]
x1 milling chuck Ø12 [mm]
x3 milling chucks Ø16 [mm]
x1 milling chuck Ø20 [mm]
x4 milling chucks (for milling cutter of different internal diameters)

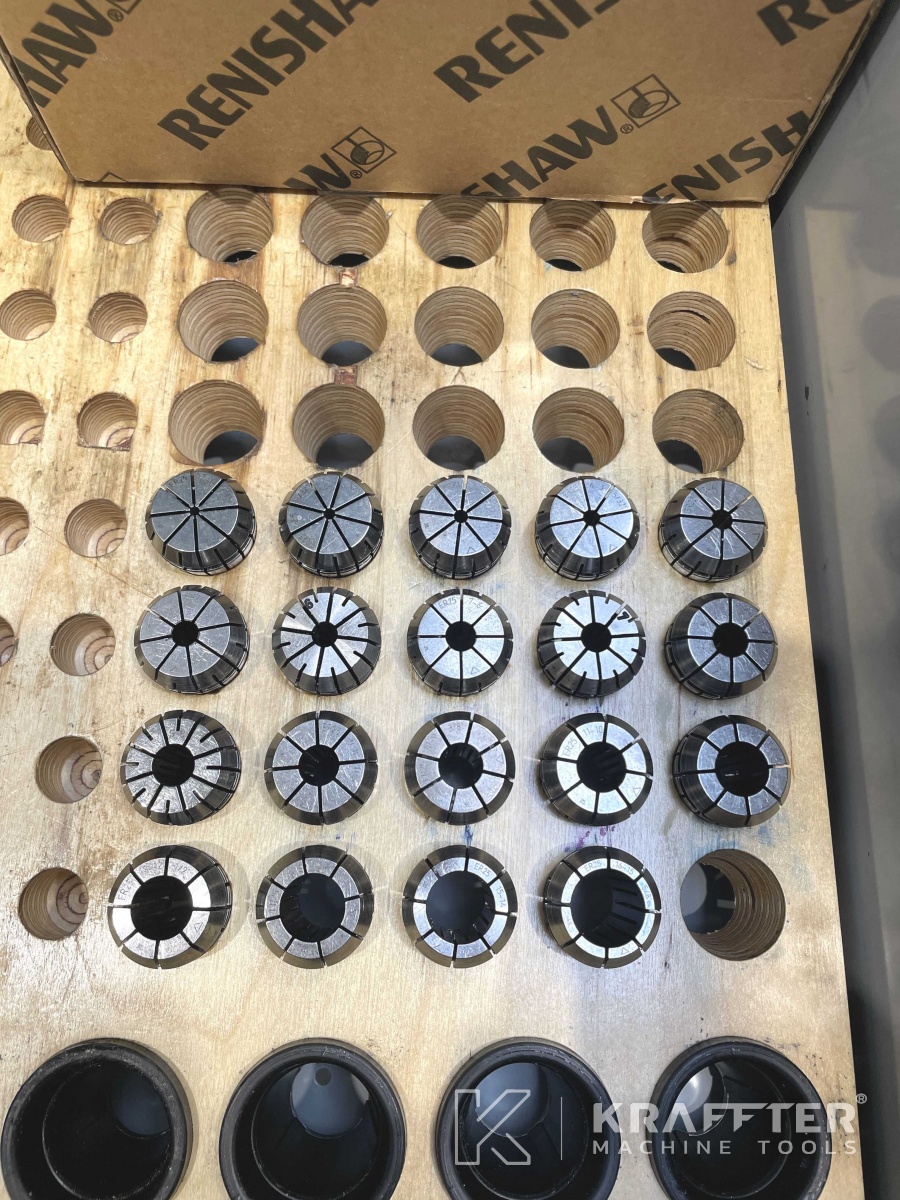

x1 collet ER25 Ø2-1 [mm]
x1 collet ER25 Ø2.5 [mm]
x1 collet ER25 Ø3-2 [mm]
x1 collet ER25 Ø4-3 [mm]
x1 collet ER25 Ø5-4 [mm]
x1 collet ER25 Ø6-5 [mm]
x1 collet ER25 Ø6 [mm]
x1 collet ER25 Ø7-6 [mm]
x1 collet ER25 Ø7 [mm]
x1 collet ER25 Ø8-7 [mm]
x2 collets ER25 Ø9-8 [mm]
x1 collet ER25 Ø10-9 [mm]
x1 collet ER25 Ø11-10 [mm]
x1 collet ER25 Ø12-11 [mm]
x1 collet ER25 Ø13-12 [mm]
x1 collet ER25 Ø14-13 [mm]
x1 collet ER25 Ø15-14 [mm]
x1 collet ER25 Ø16-15 [mm]

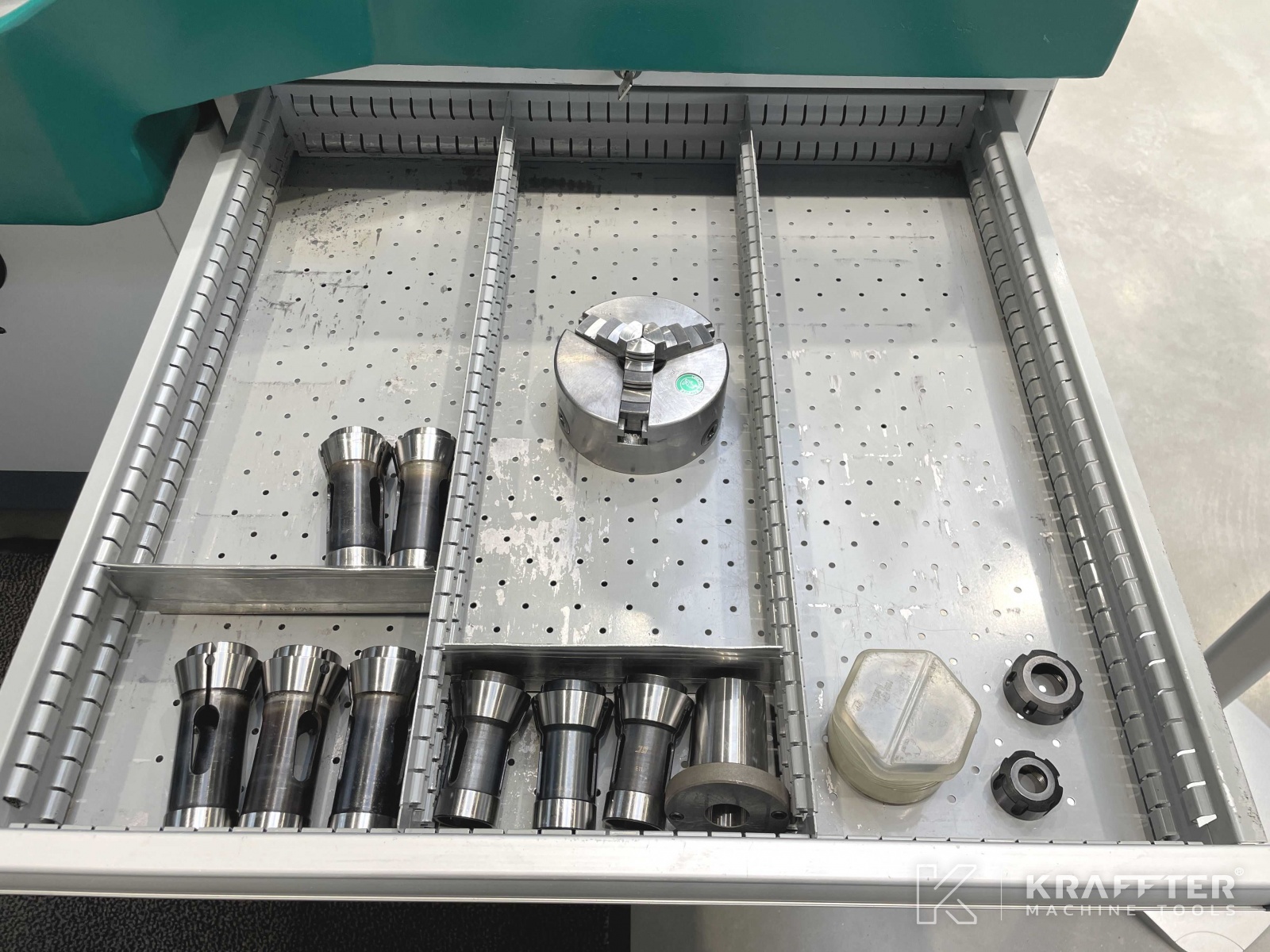

x1 F38 collet for 4th axis AT100 CNC AC Ø6 [mm]
x1 F38 collet for 4th axis AT100 CNC AC Ø8 [mm]
x1 F38 collet for 4th axis AT100 CNC AC Ø10 [mm]
x1 F38 collet for 4th axis AT100 CNC AC Ø16 [mm]
x1 F38 collet for 4th axis AT100 CNC AC Ø20 [mm]
x1 concentric 3 jaw chuck Ø125 [mm]
x1 WALDMANN lamp - 8500K

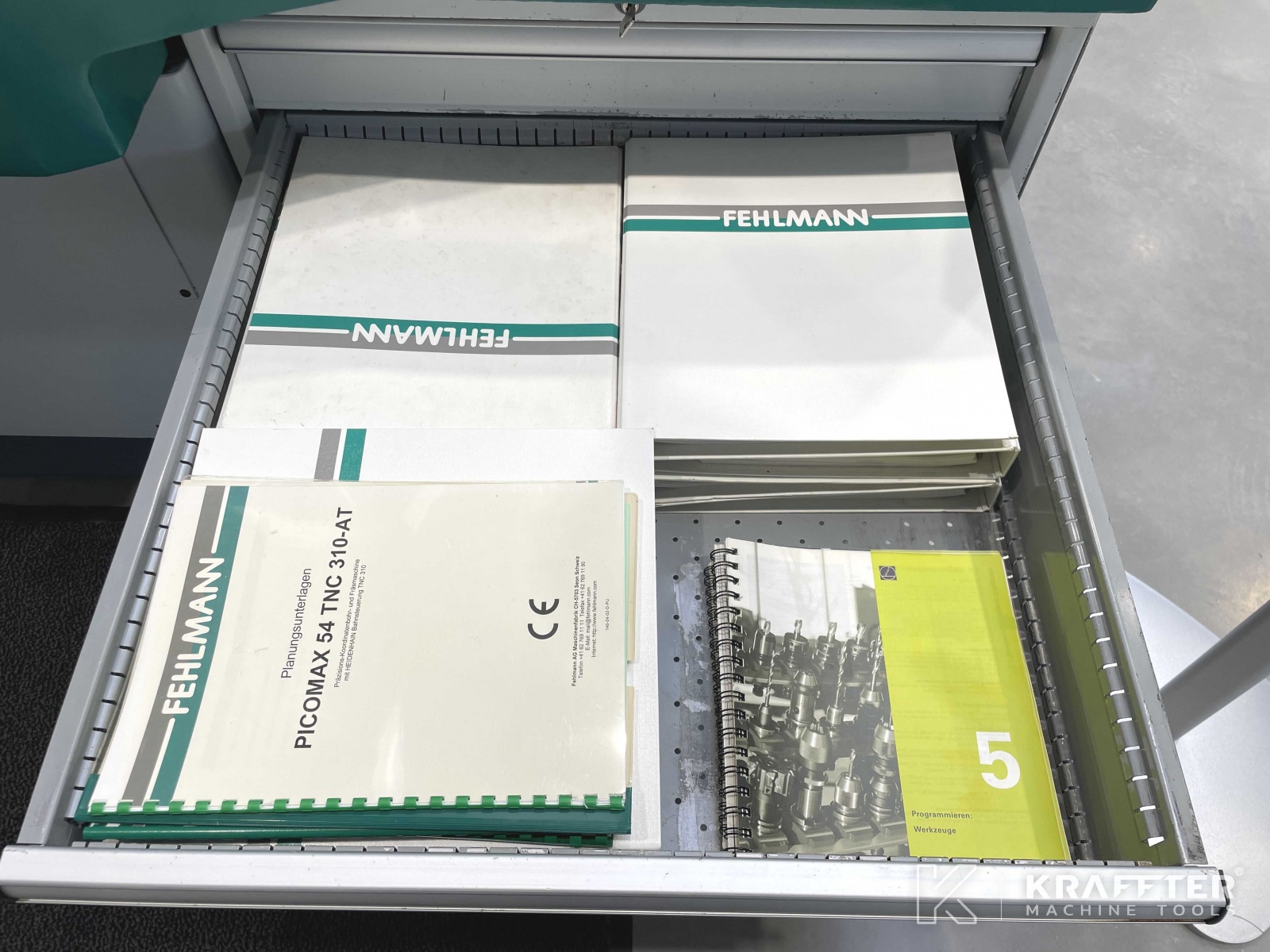

x1 users & maintenance manual (in German & French)
x1 programming manual FEHLMANN / HEIDENHAIN TNC 310 (in German & French)
x1 electrical wiring diagram manual
