Venduto

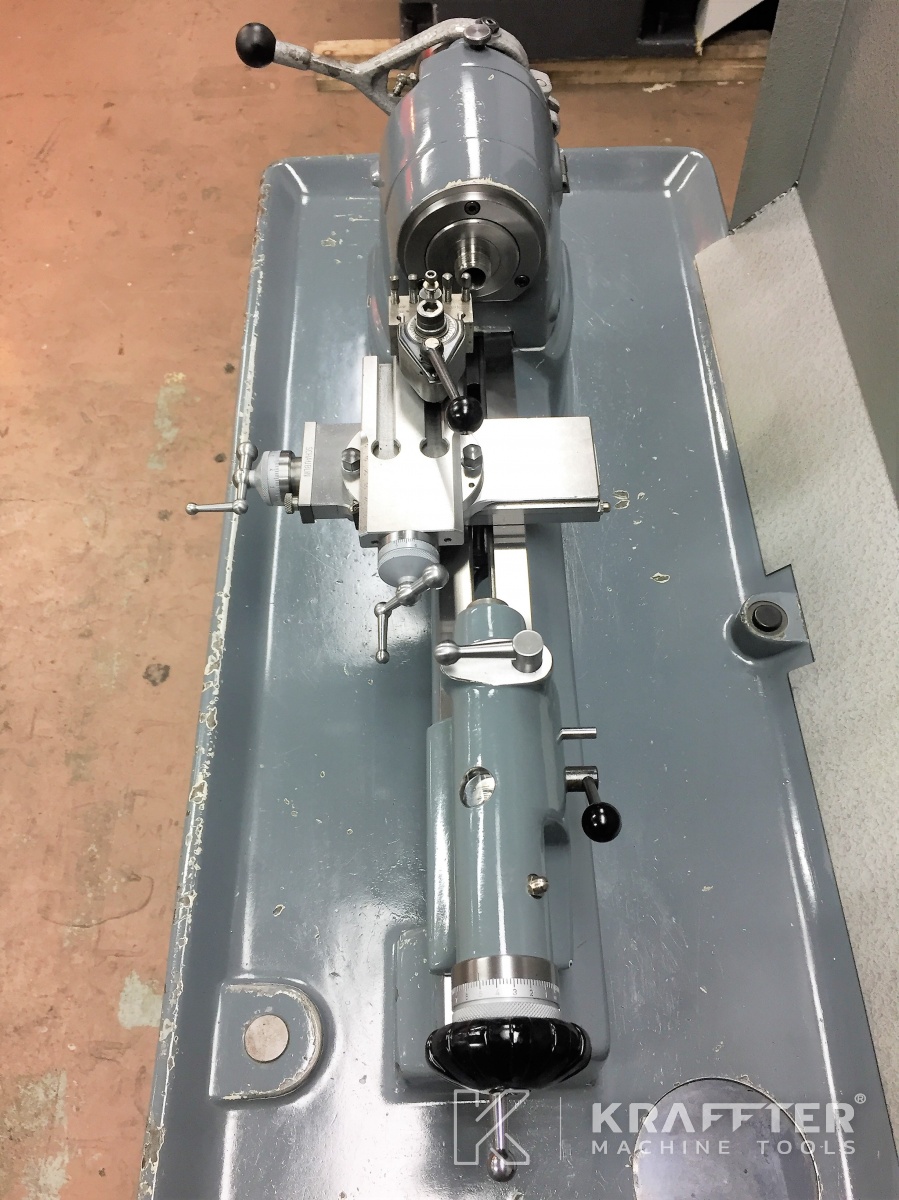

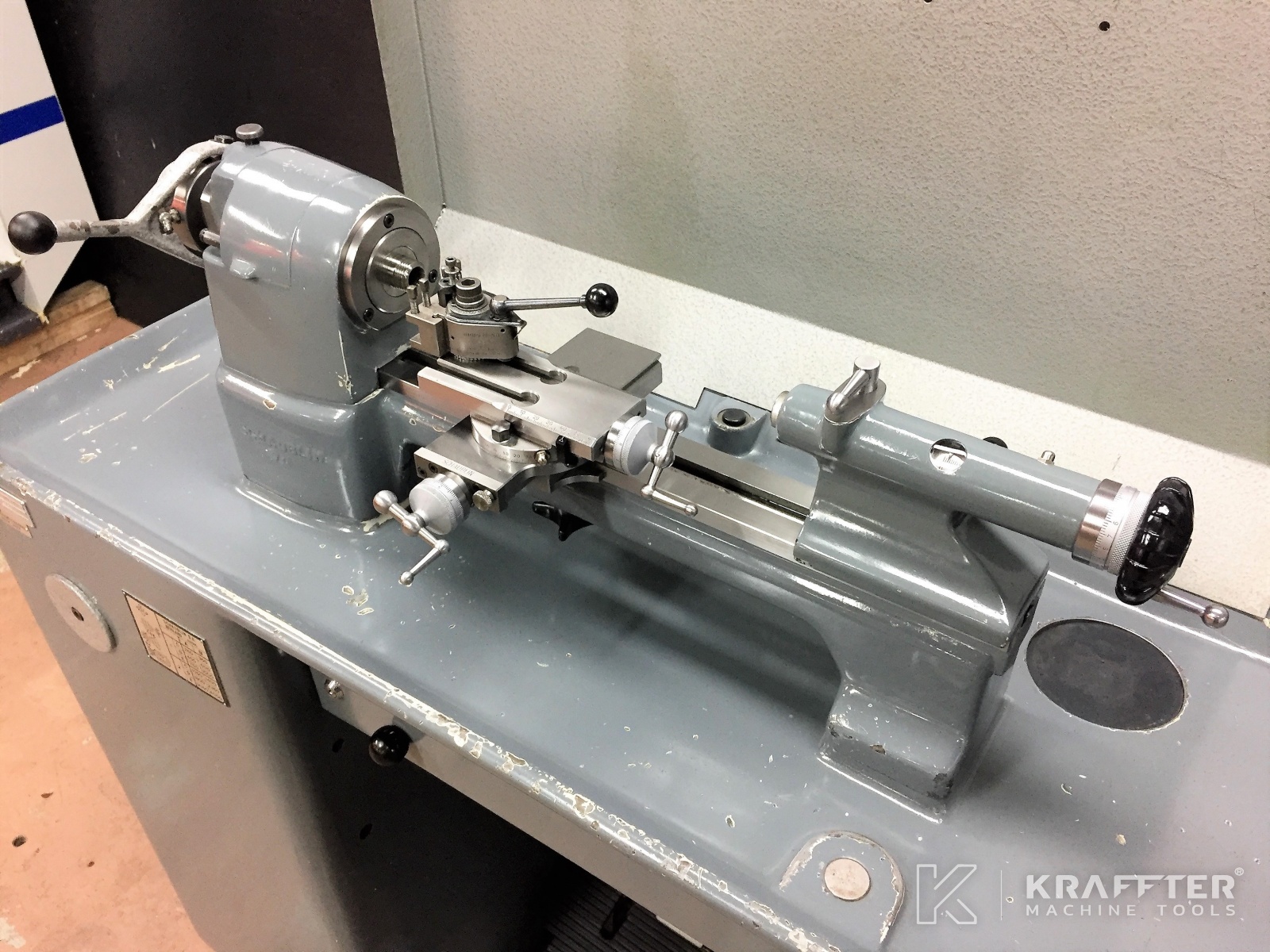

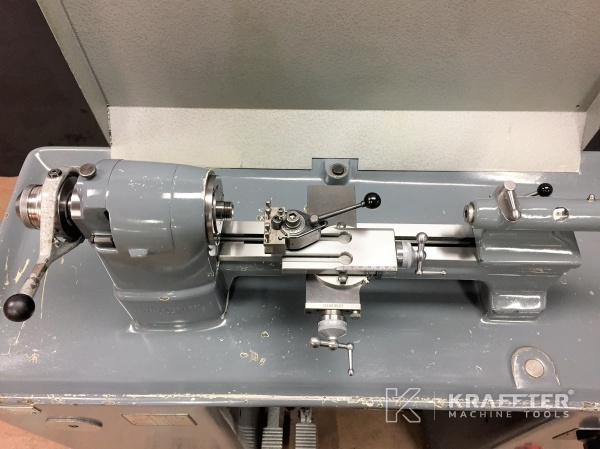

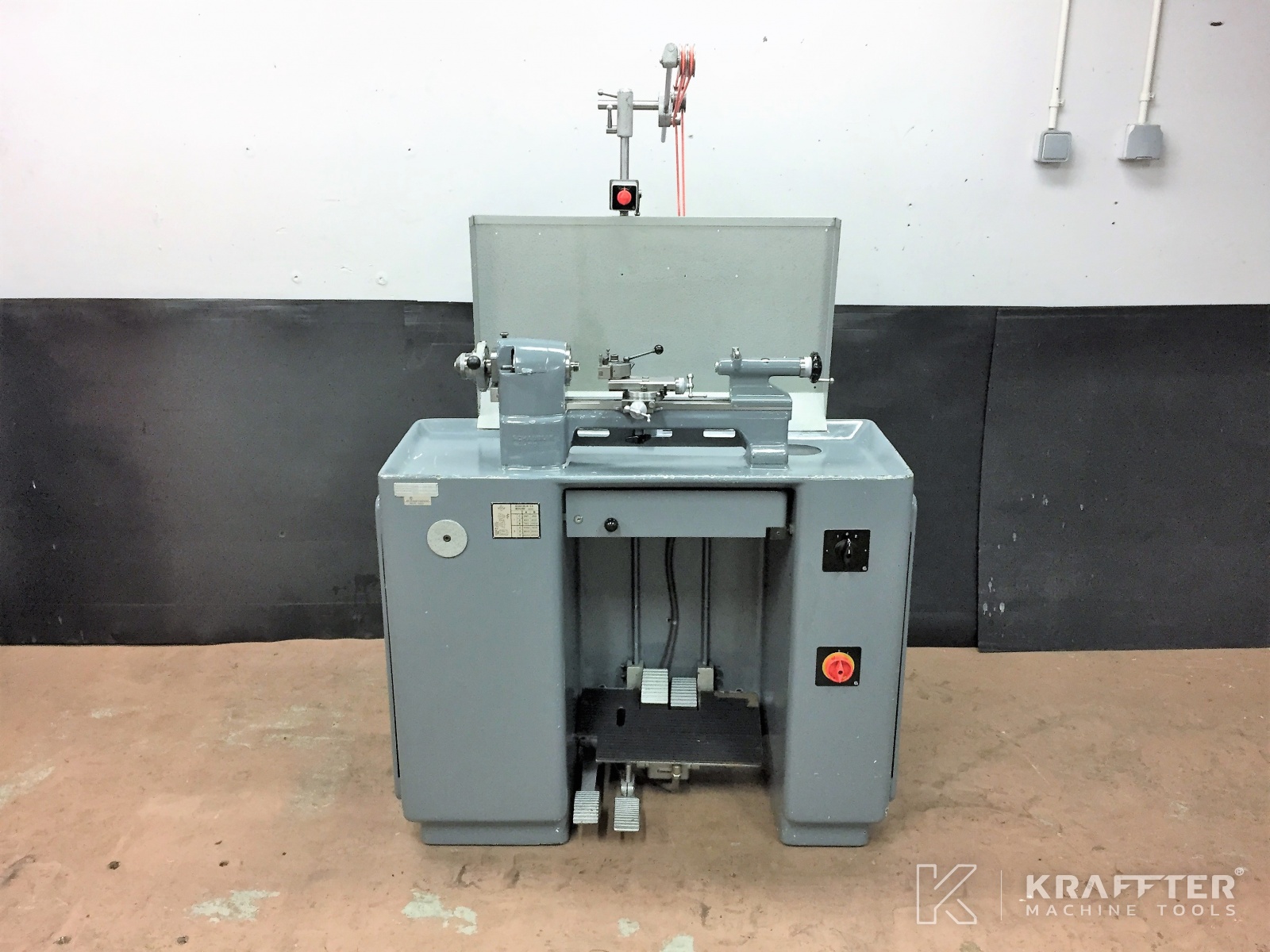

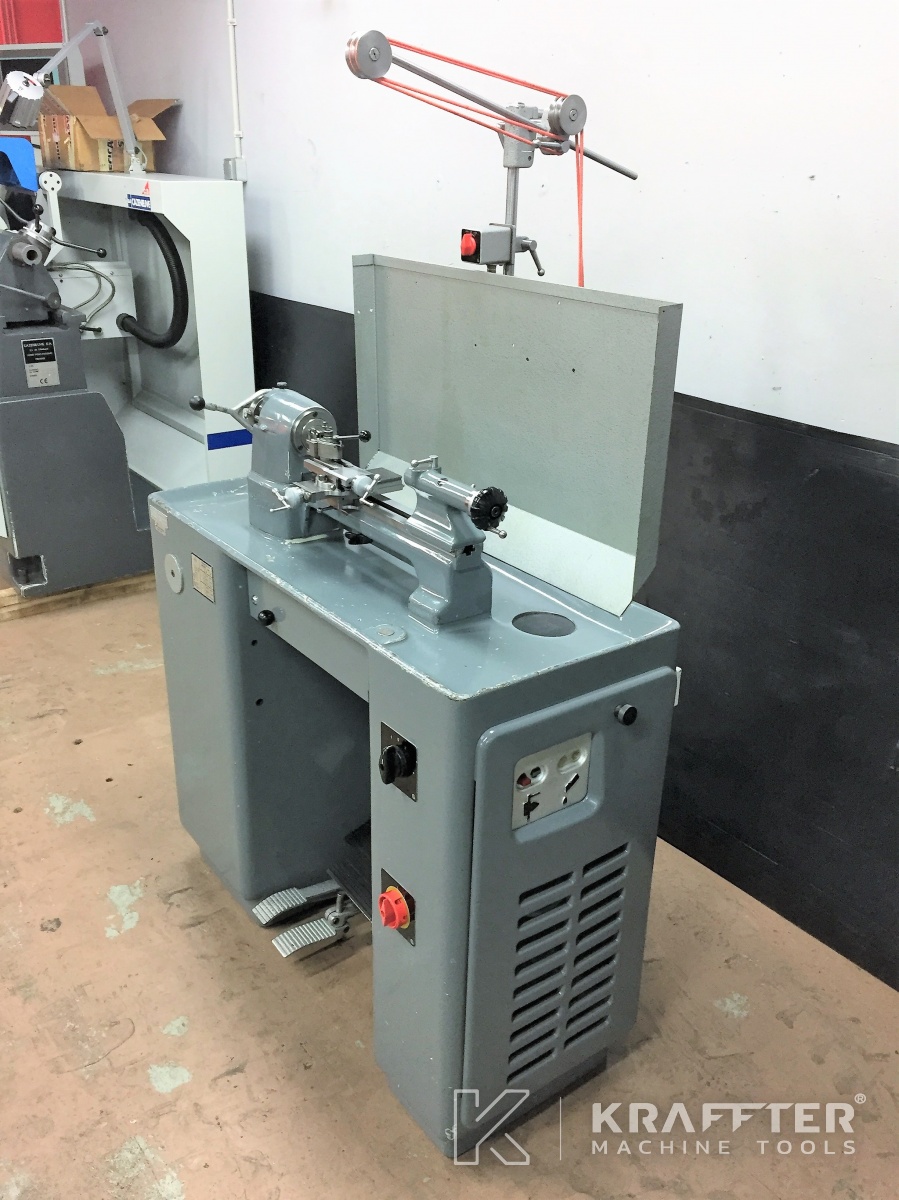

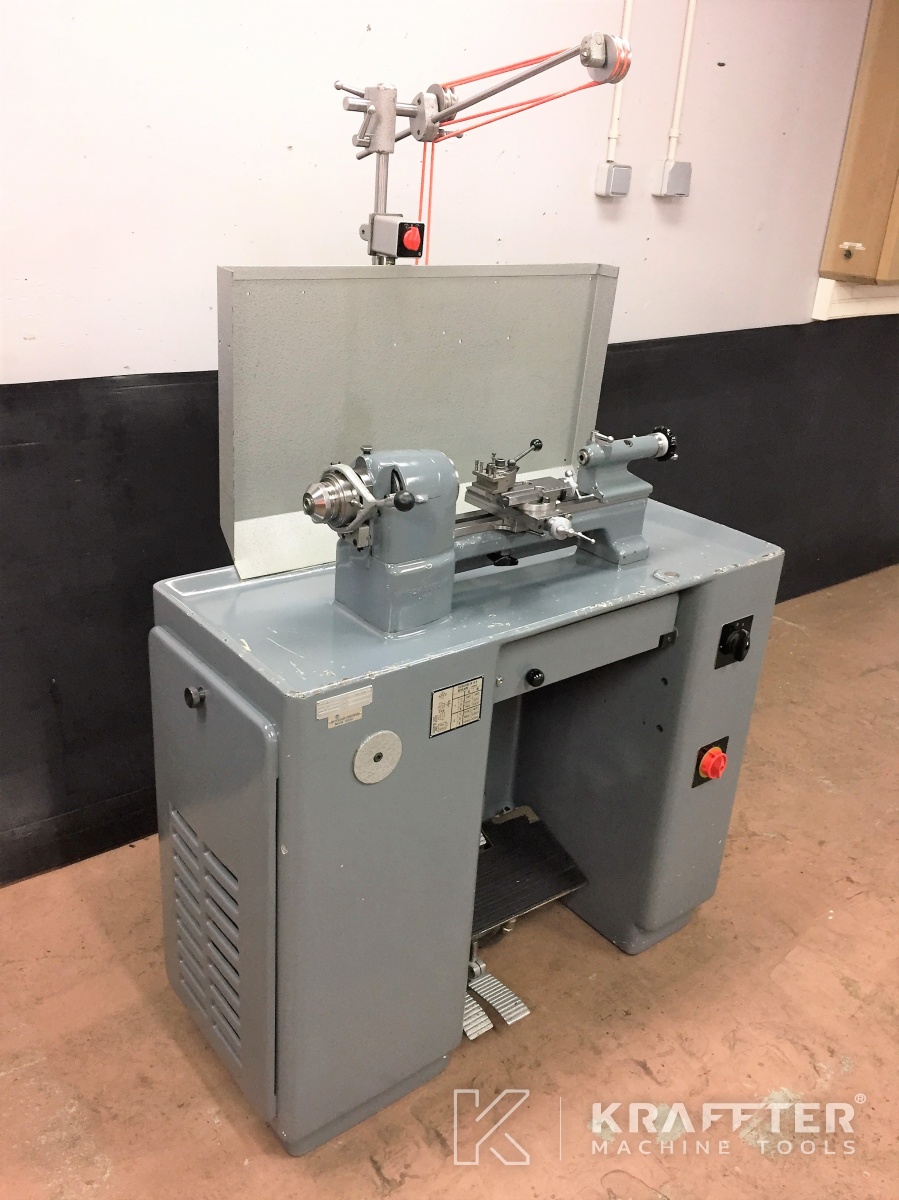

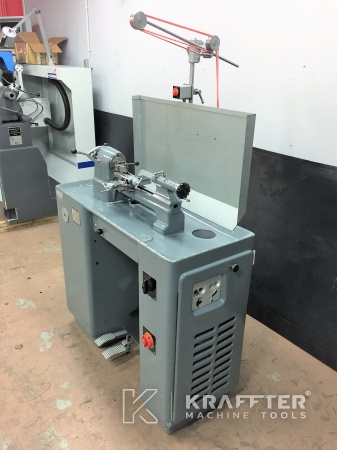

Tipo di macchina: Tornio convenzionale
Marca : SCHAUBLIN
N° de stock: 20689-922
Modello : 70
Posizione : 73520 Saint-Béron, FRANCE
MACCHINA UTENSILE VENDUTA
Interessato a un modello simile?
Lasciaci i tuoi recapiti:
Caratteristiche tecniche
Numero di assi
2
Distanza tra punte
275 [mm]
Altezza delle punte
70
Diametro consentito sopra il carrello
85 [mm]
Mandrino fornito per pinze di serraggio
W12
Diametro passaggio mandrino
12 [mm]
Cono della contropunta
2°
Scatola filettatatura universale
No
Dispositivo di serraggio rapido delle pinze tramite leva
Sì
Numero di velocità del mandrino
6
Torretta
Multifix type Aa
Tensione di alimentazione
400 [V]
Dimensioni
1130 x 780 x 1670
Peso
350 [Kg]
Ulteriori informazioni

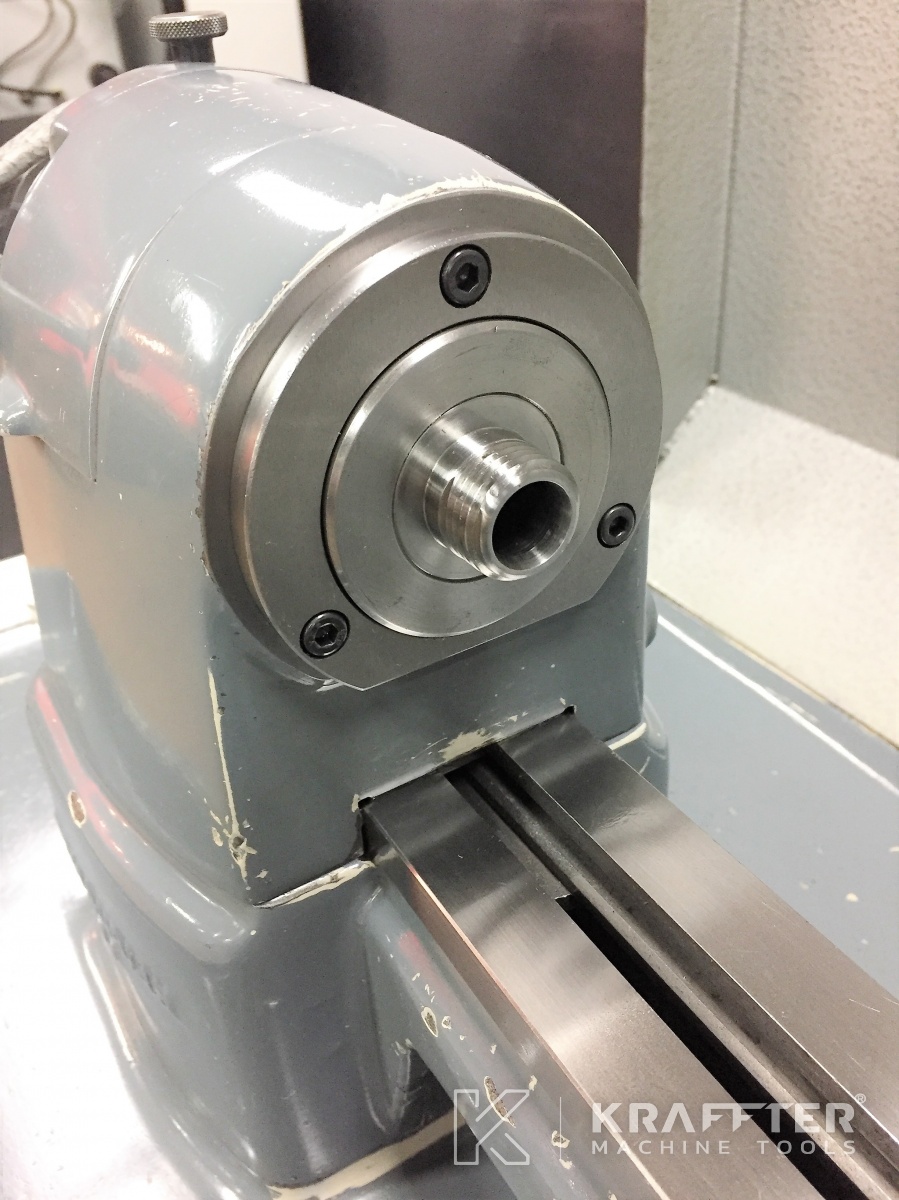

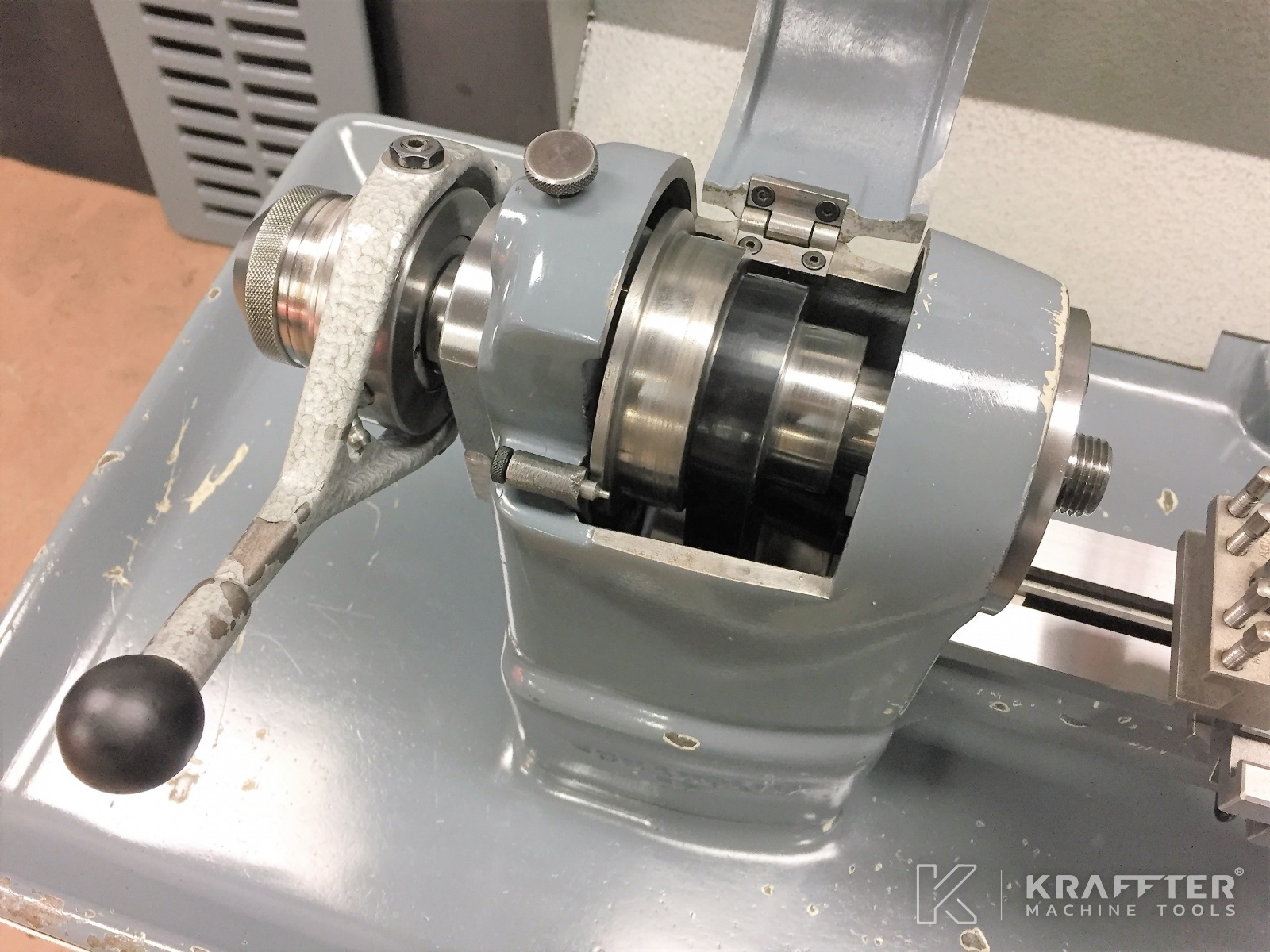

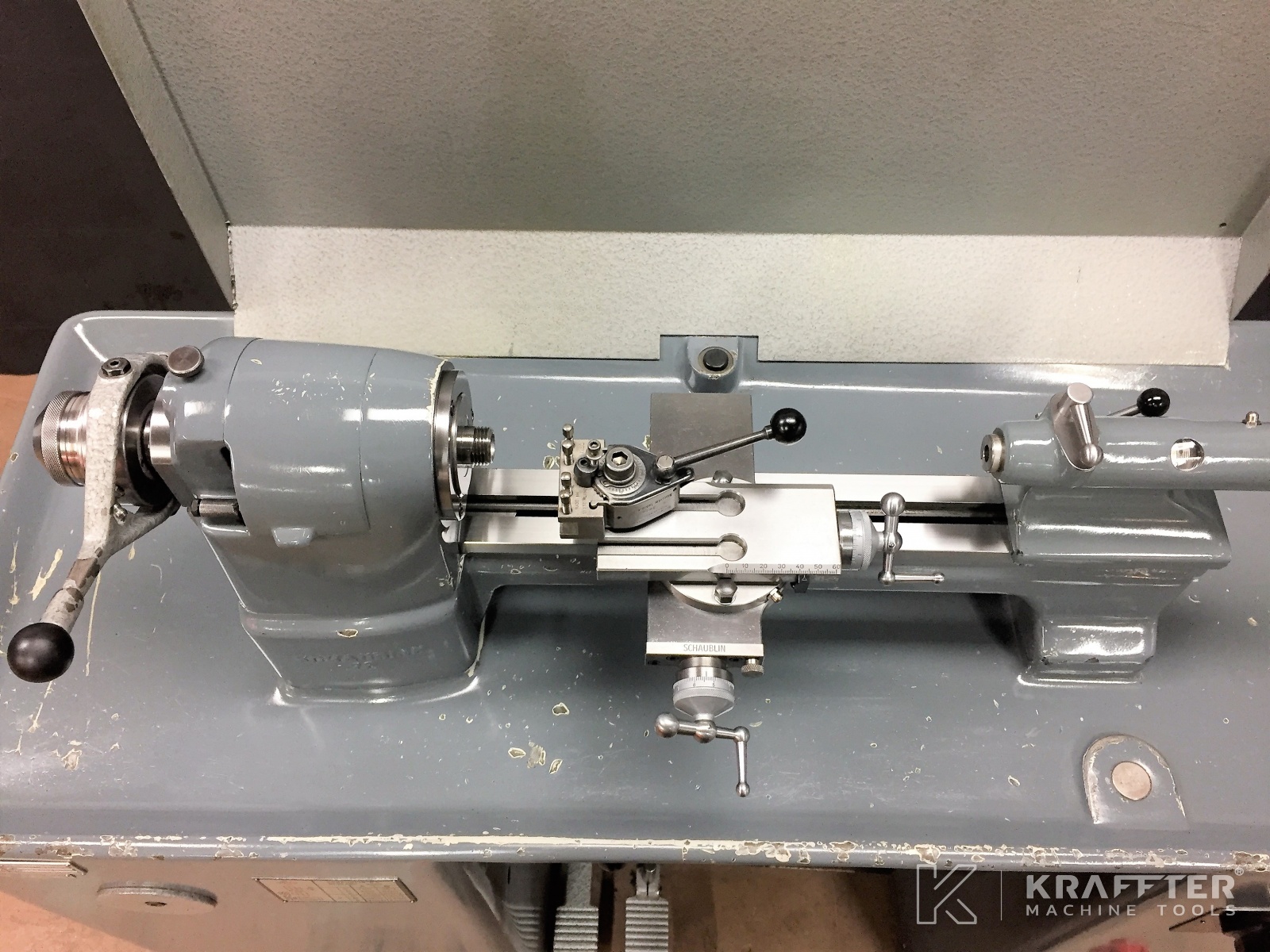

- 70-31 / 1 headstock W12 type spindle
- 70-12 / 1 bed

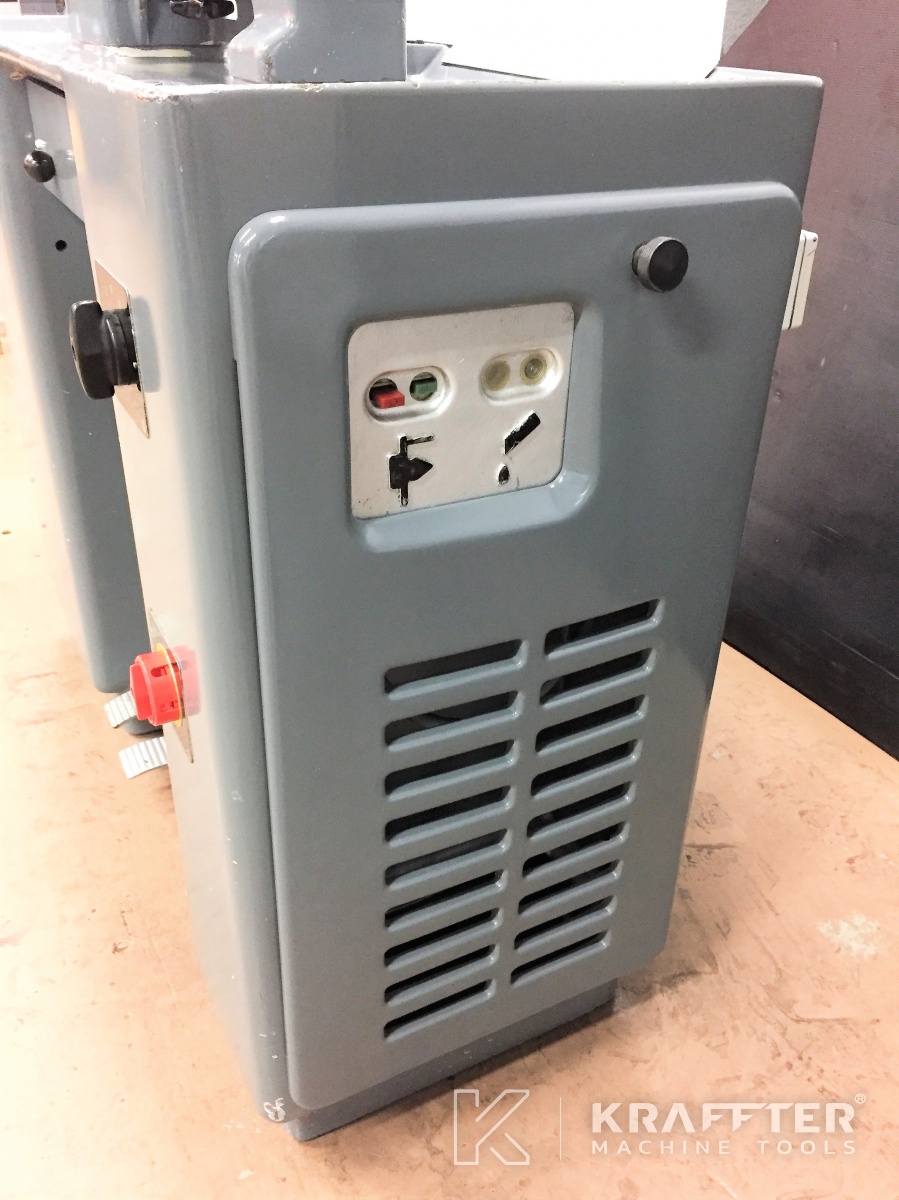

- 70-80 / 1 cast-iron base

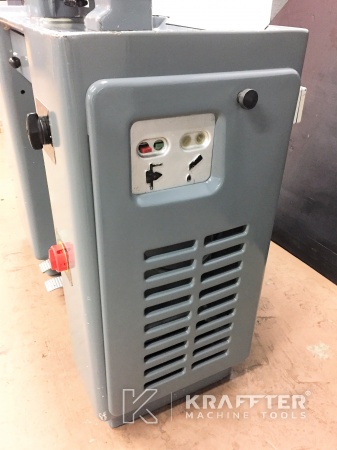

- 71017 / 1 commutating switch
- 70-81.030 / 1 coutershaft with clutch and brake
- 70-80.400 / 1 swivel drawer for accessories
- 102-81.400 / 1 sheetmetal guard

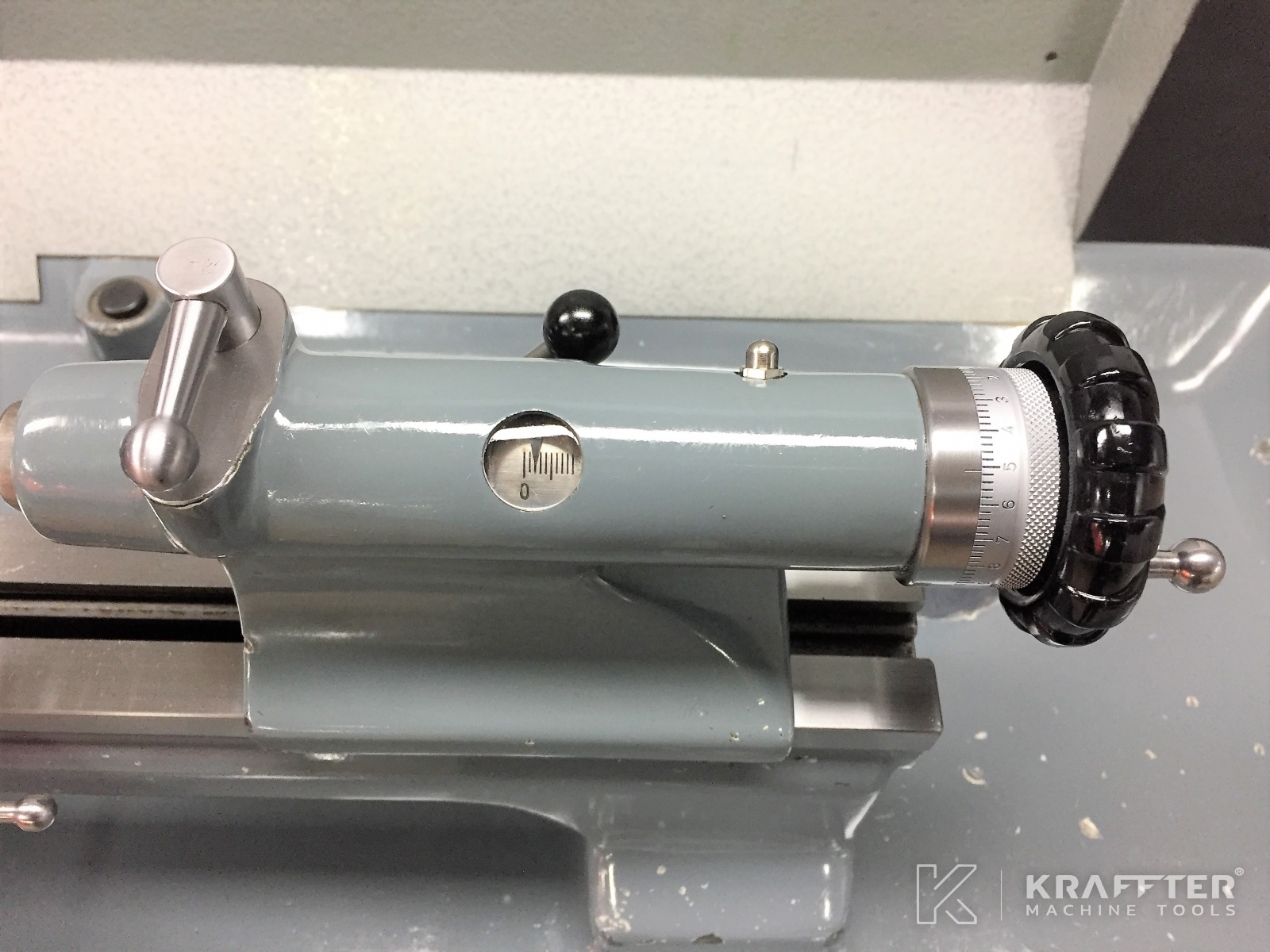

- 70-65 / 1 screw-operated tailstock

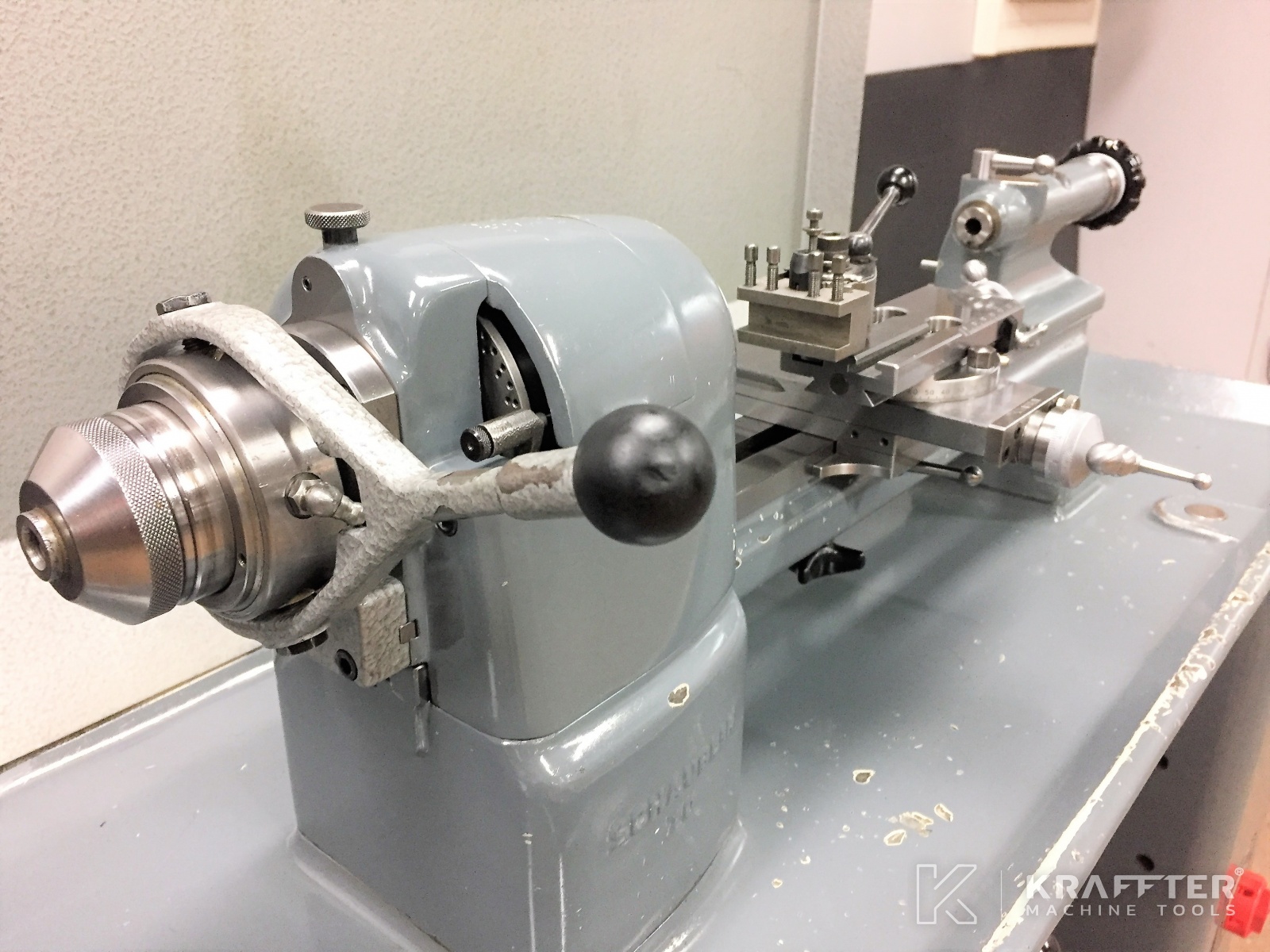

- 70-30.600 / 1 manual lever-operated quick-closing attachement (for W12 collets)

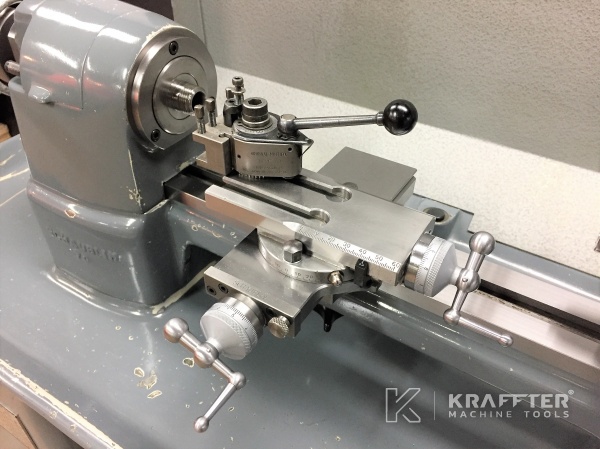

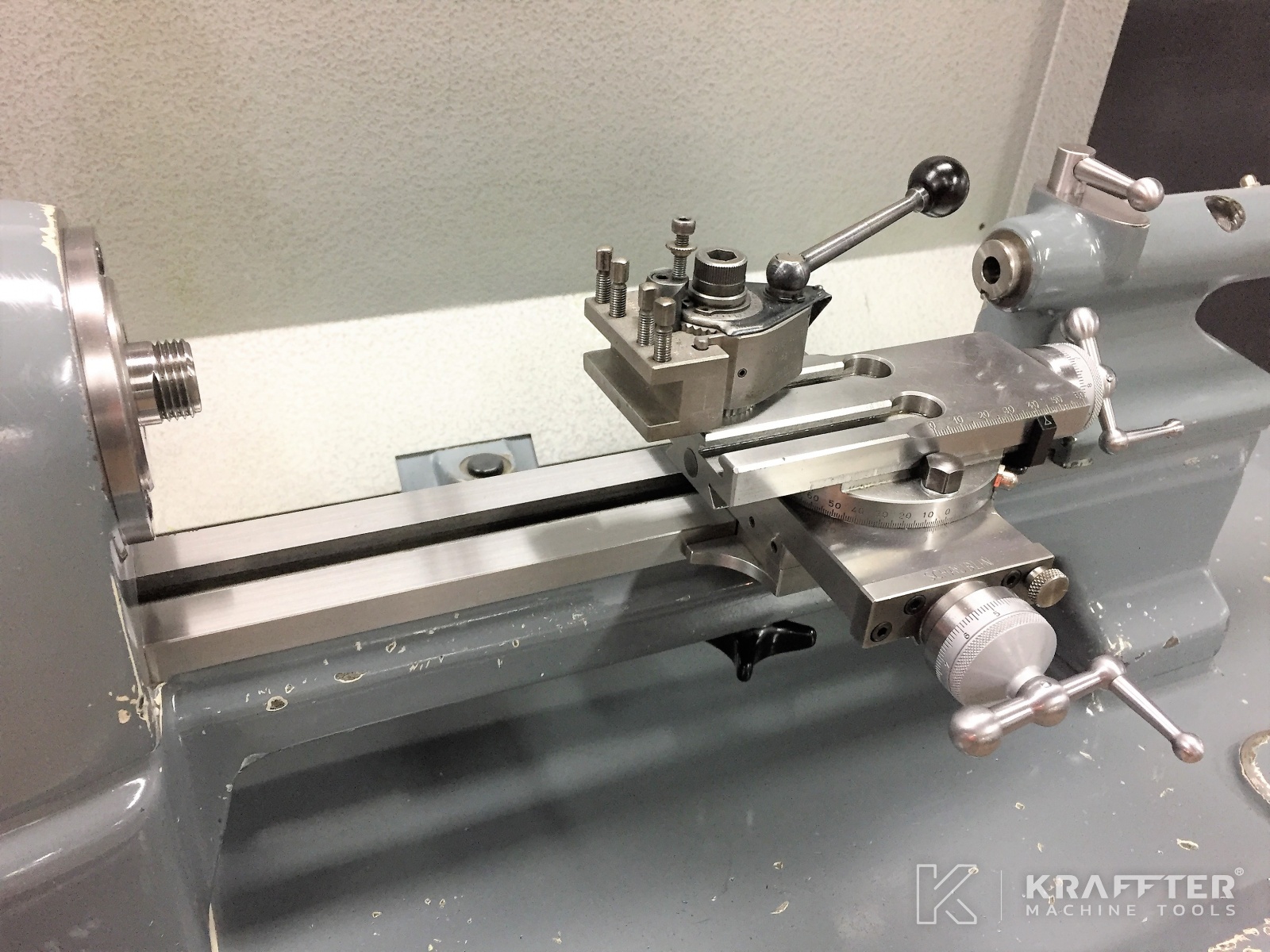

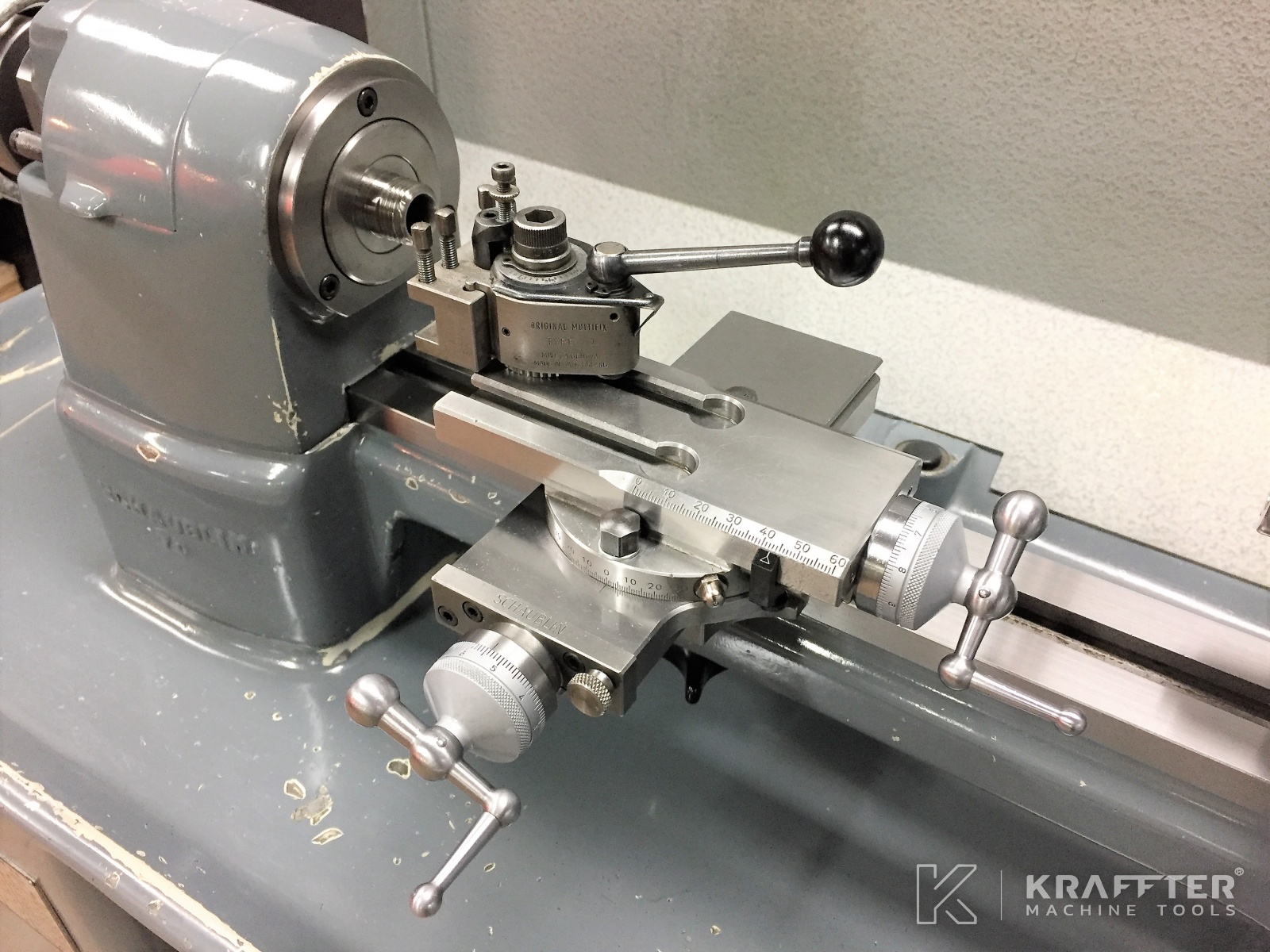

- 70-45 / 1 screw operated-carriage (new screws and nuts on both 2 axis)
- 70-10.100 / 1 rod for fixing of the carriage
- 1 three-phase motor 750/3000 [rpm]

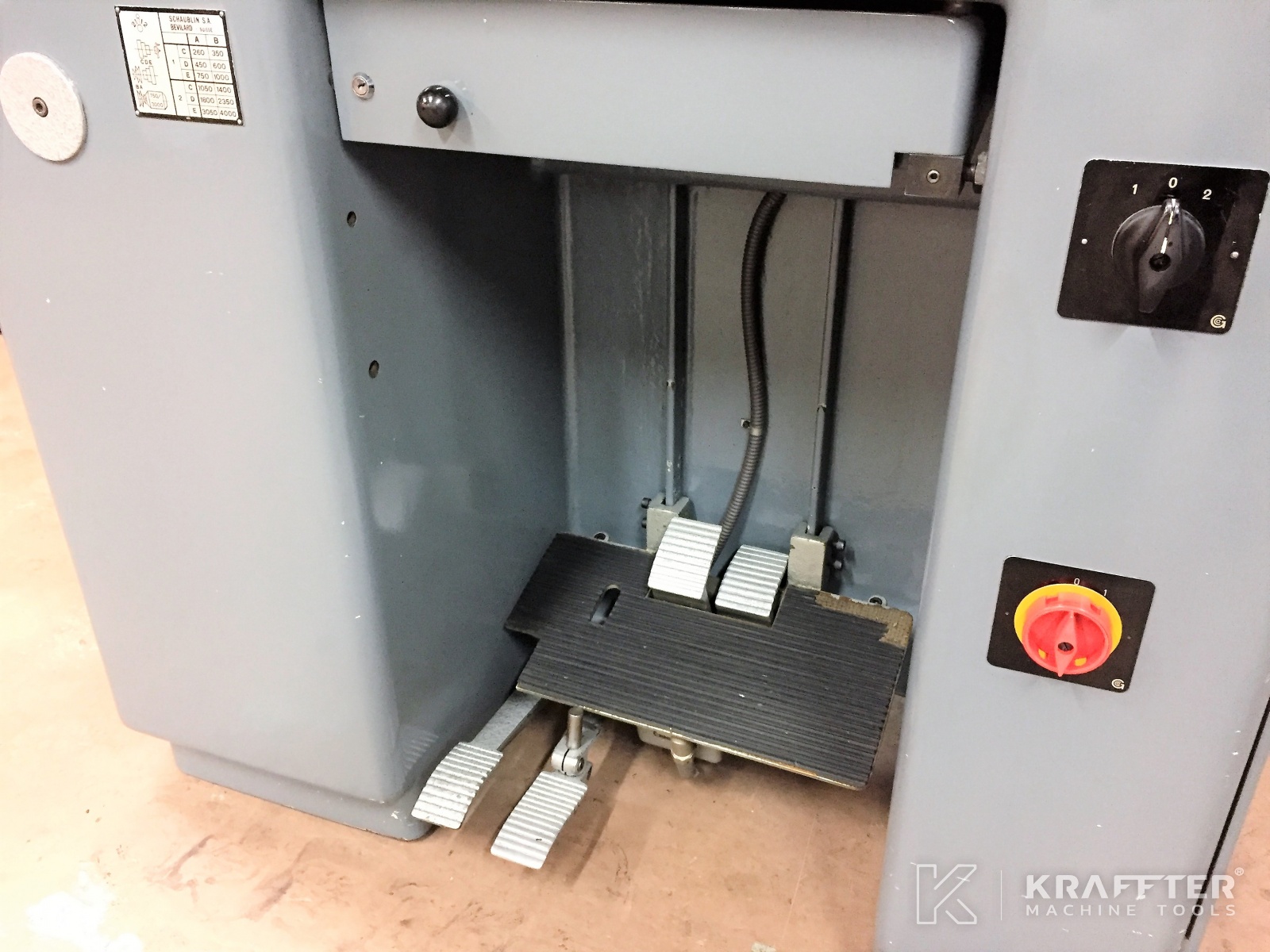

- 102-80.500 / 1 footrest with pedal-operated reversing switch 71025

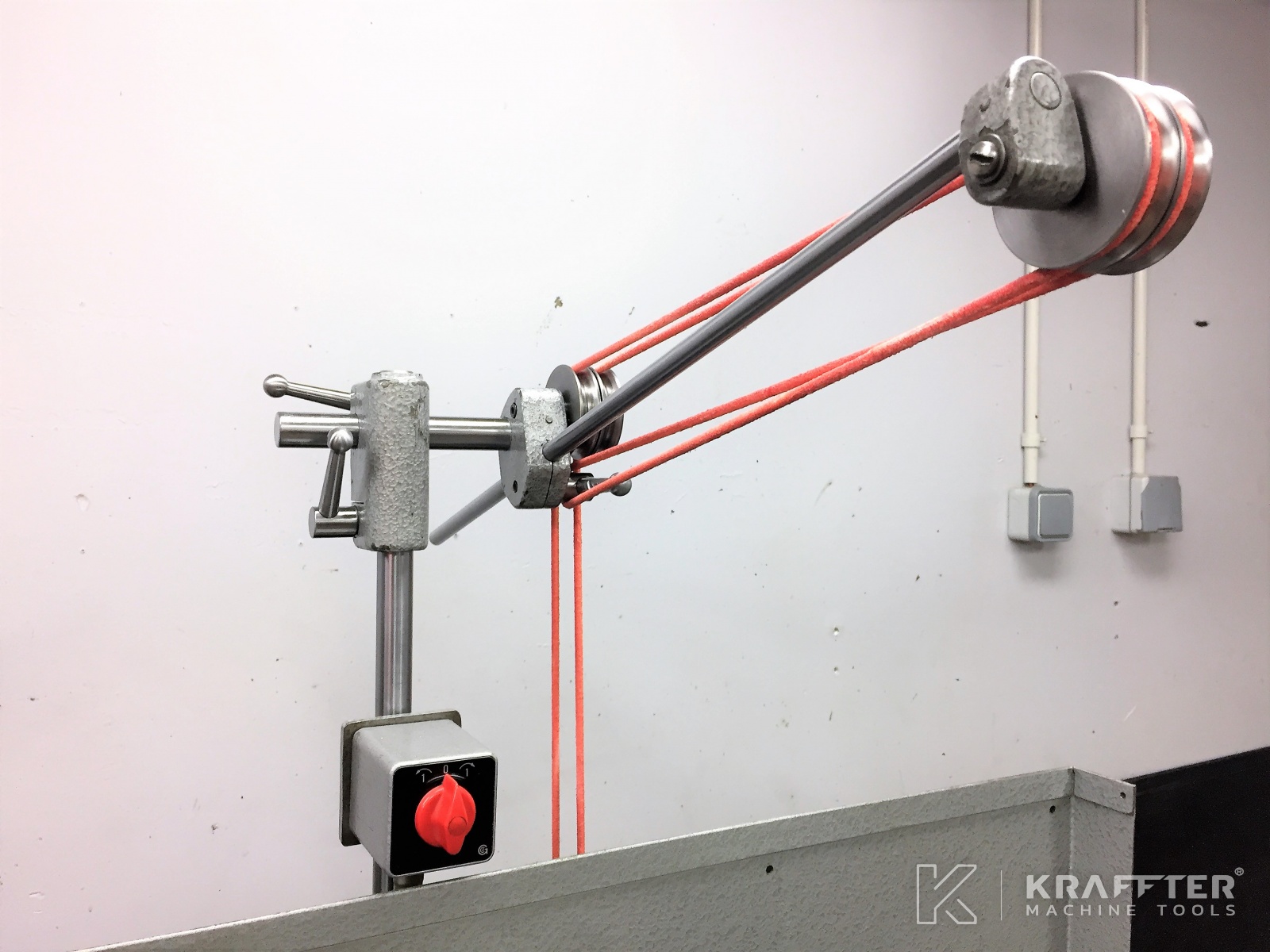

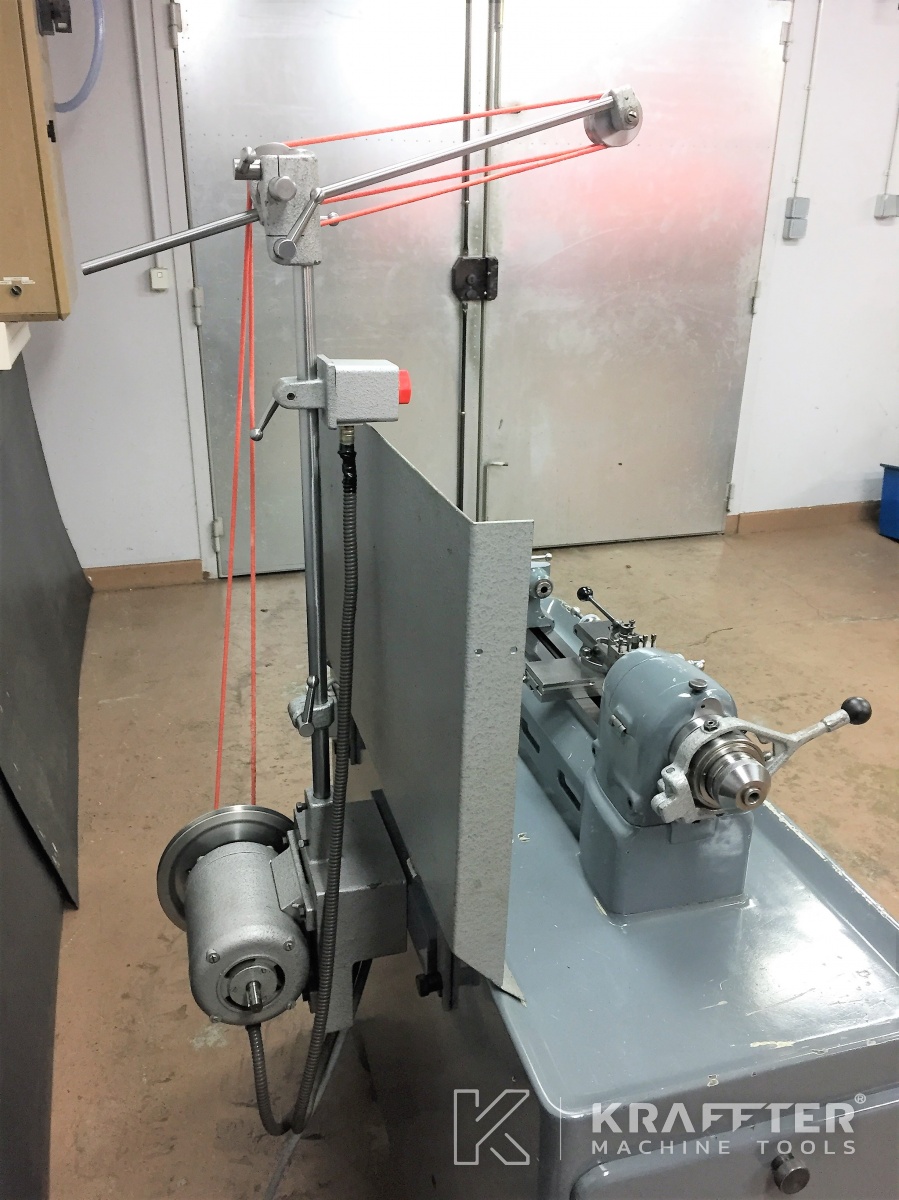

- 102-95.100/200 / 1 drive for milling and grinding attachements including a three-phase motor

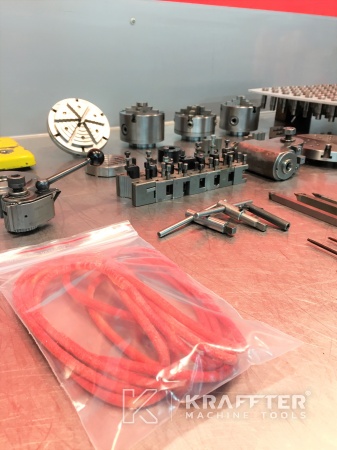

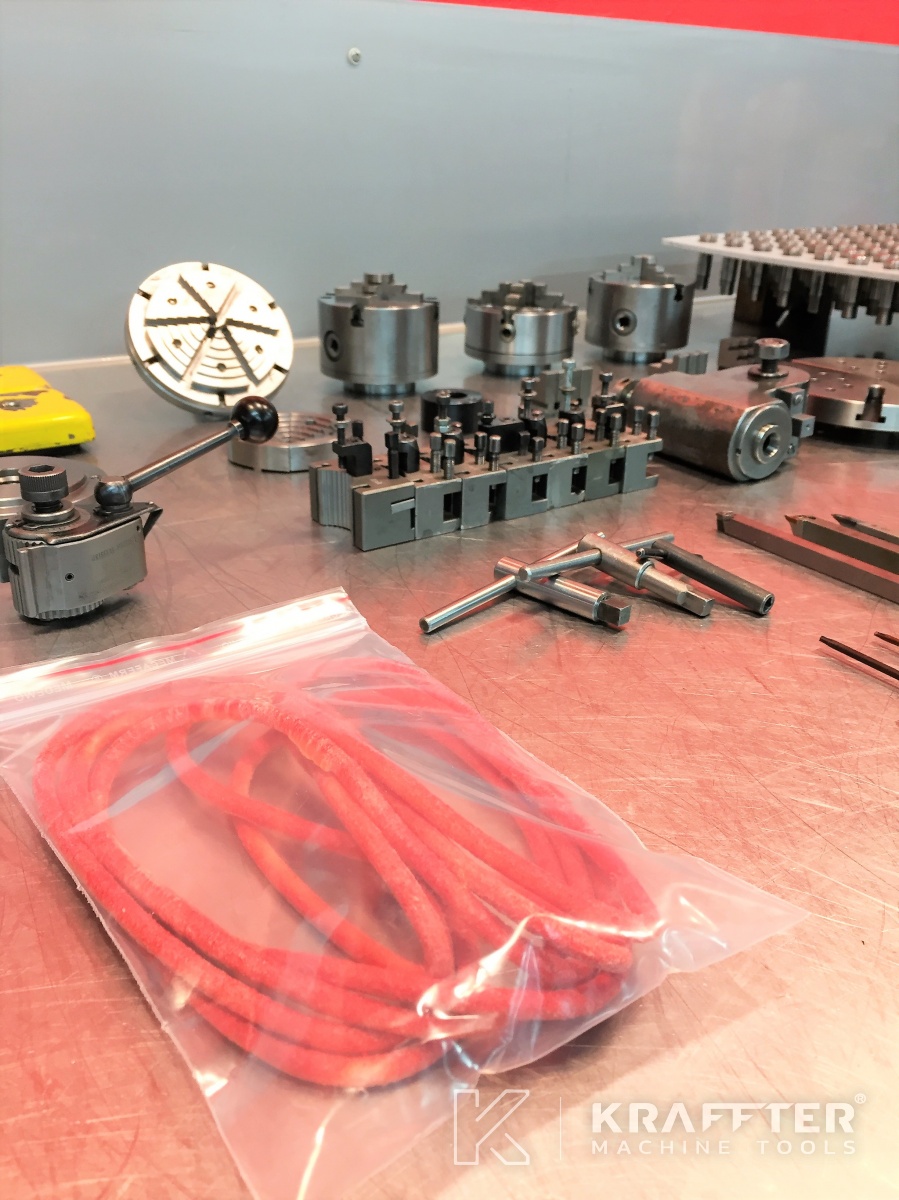

- 70-95.120 / 1 endless belt Ø6 [mm] for milling and grinding attachements – NEW
- 70-87.550 / 1 grinding attachement for B6 type collets (needs a pulley for Ø6 [mm] belt to be operationnal)

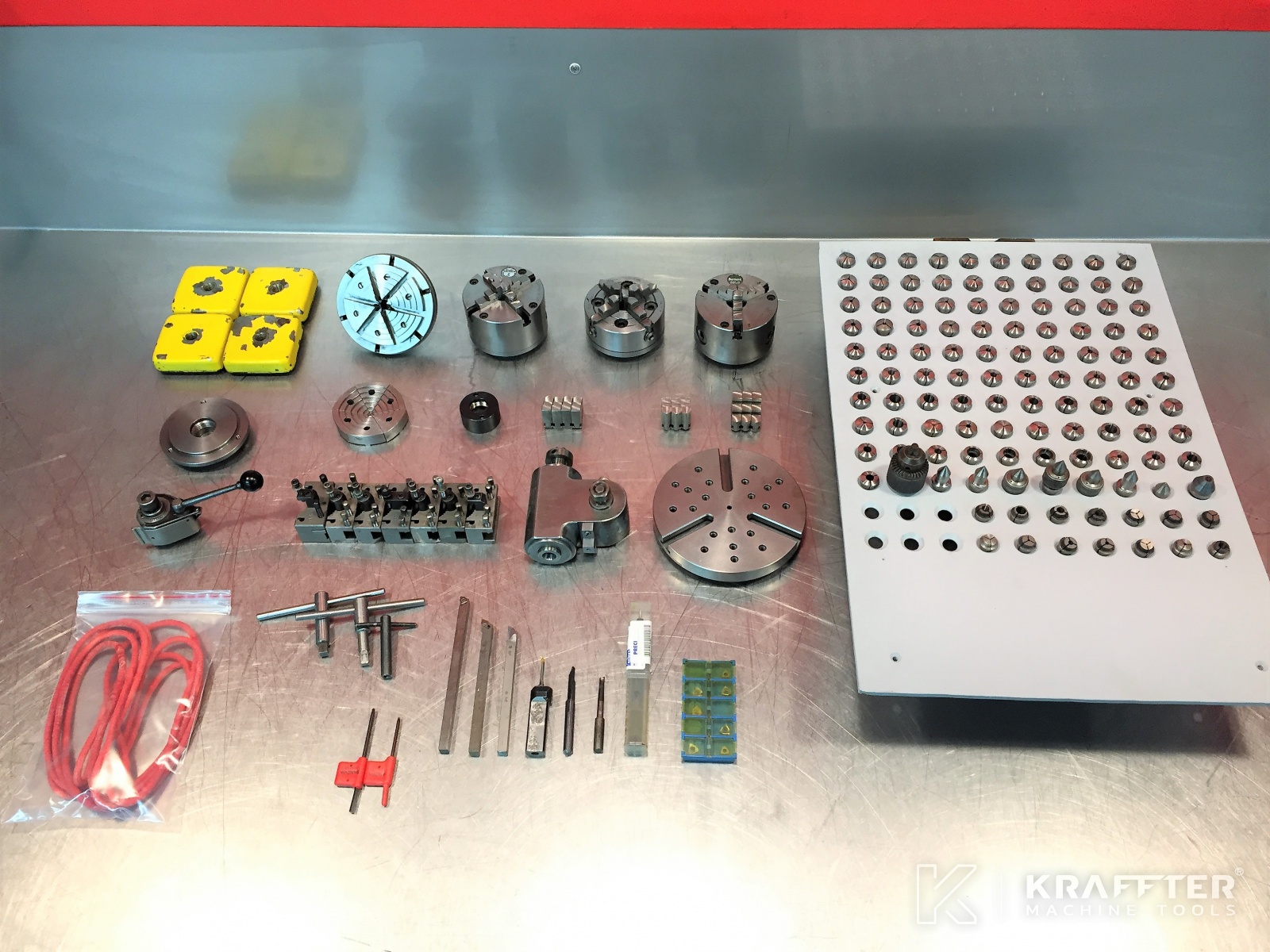

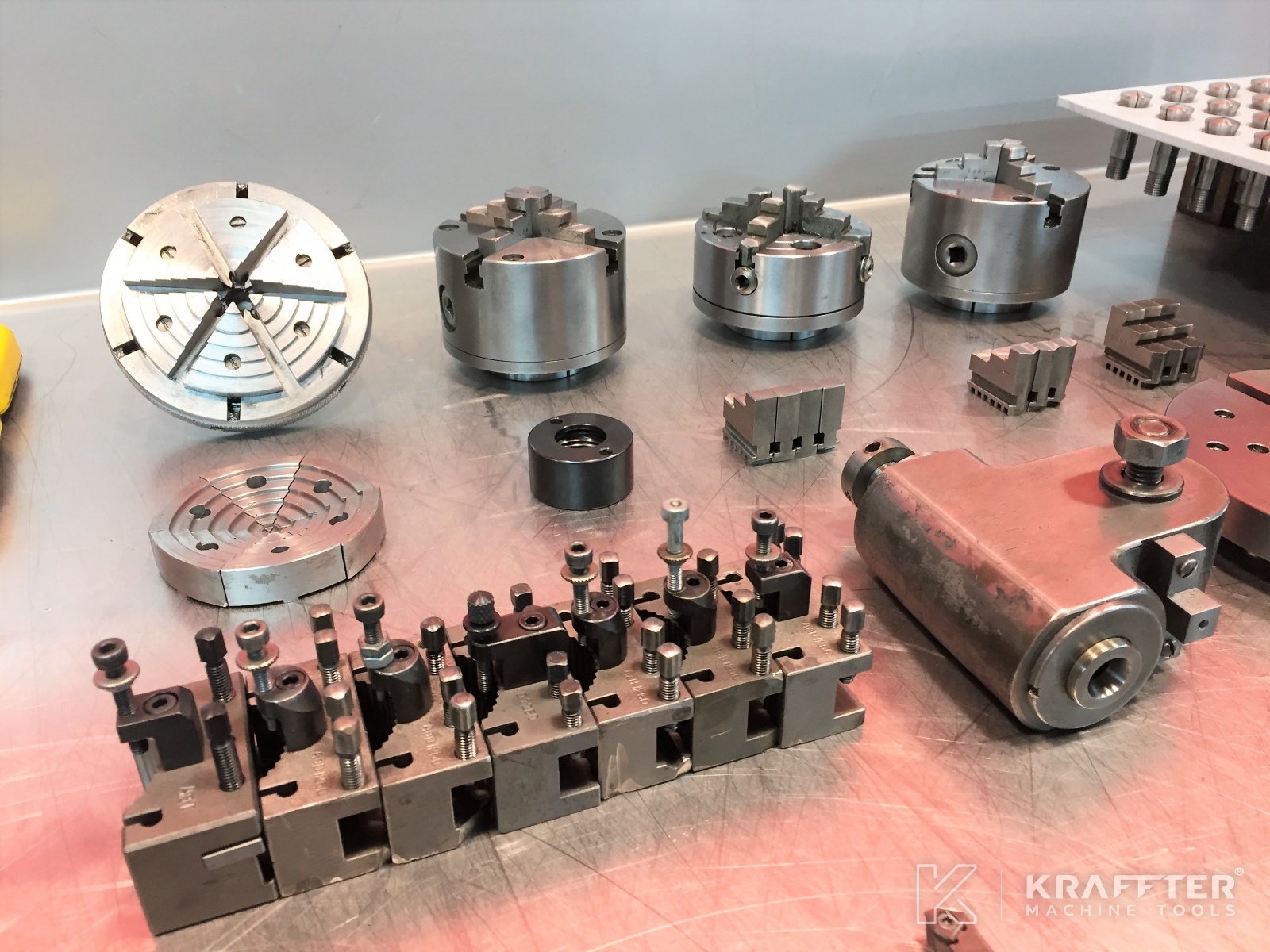

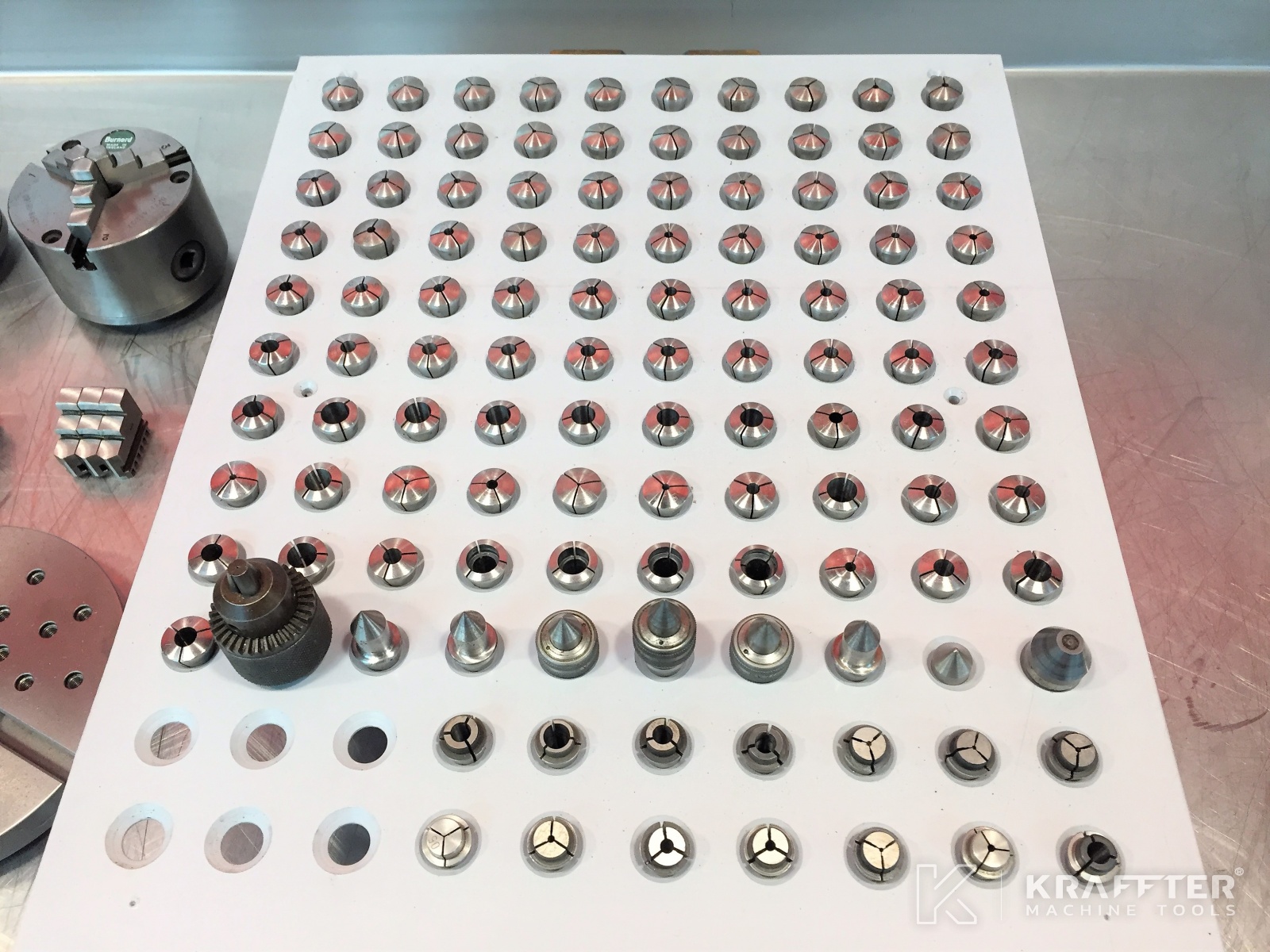

- 91 collets type W12 from Ø0.20 to 12.00 [mm]
- 1 faceplate Ø138 [mm] with 3 radial T slots of 7 [mm] and 21 M6 tapped holes

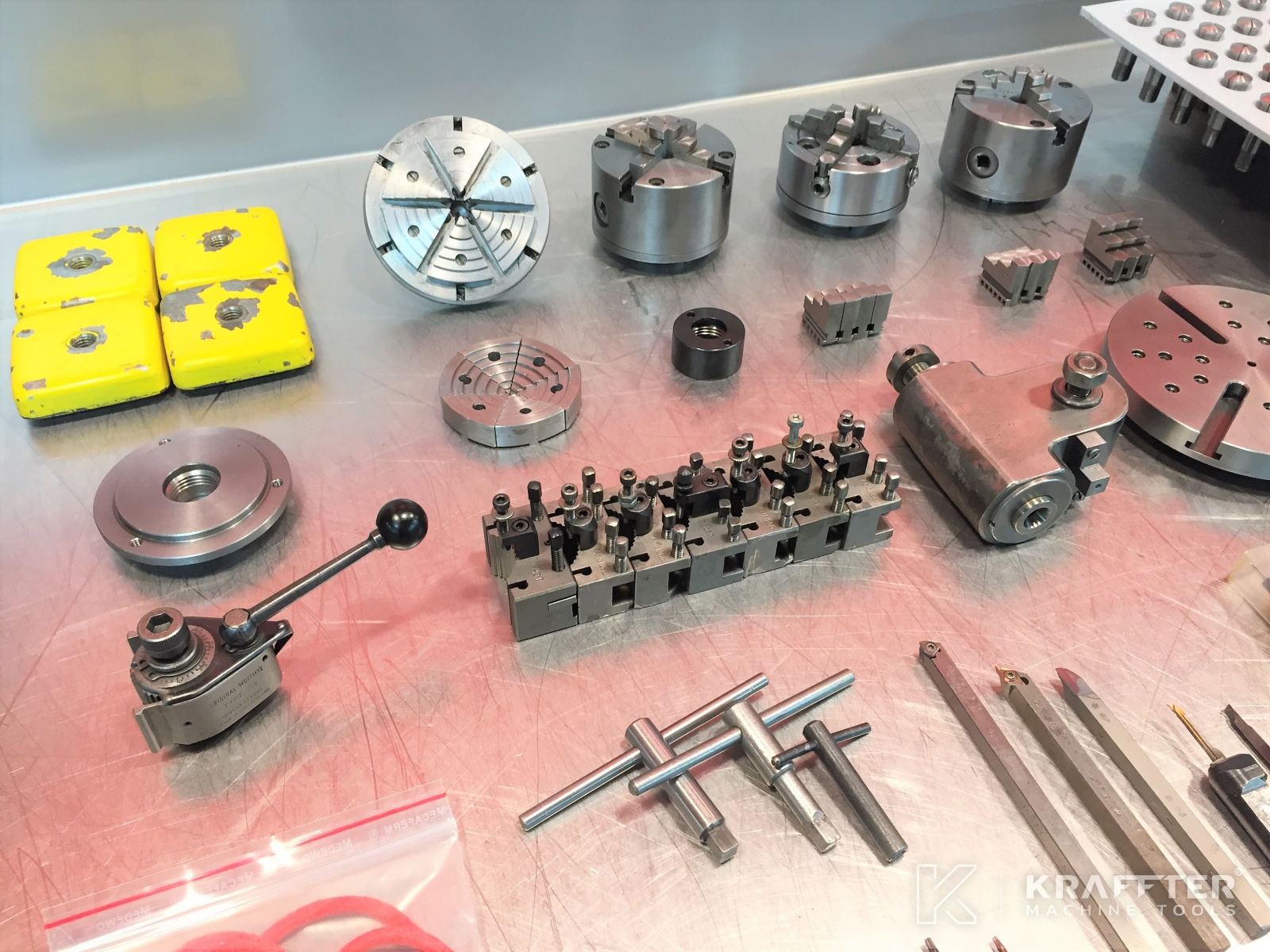

- 1 concentric 3 jaw chuck Ø80 [mm] PRATT BURNERD for internal and external gripping, mounted on adapter for spindle nose, with 1 safety ring
- 1 set of 3 internal hardened jaws for Ø80 [mm] PRATT BURNERD 3 jaw chuck
- 1 set of 3 external hardened jaws for Ø80 [mm] PRATT BURNERD 3 jaw chuck
- 1 concentric 4 jaw chuck Ø80 [mm] PRATT BURNERD for internal and external gripping, mounted on adapter for spindle nose, with 1 safety ring
- 1 set of 4 internal hardened jaws for Ø80 [mm] PRATT BURNERD 4 jaw chuck
- 1 set of 4 external hardened jaws for Ø80 [mm] PRATT BURNERD 4 jaw chuck
- 1 independent 4 jaw chuck Ø80 [mm] PRATT BURNERD, mounted on adapter for spindle nose, with 1 safety ring
- 70-46.200 / 1 quick-clamping turret MULTIFIX ORIGINAL SUISSE type Aa and its 2 locking levers
- 7 tools-holders MULTIFIX ORIGINAL SUISSE type Aa
- 70-74.100 / 1 drill chuck on arbor, shank taper 2°, chuck capacity from 0.3 to 6.4 [mm] with 1 locking lever
- 70-74.041 / 3 revolving male centers, 60° (with taper roller bearing), shank taper 2°
- 70-74.021 / 1 femalle center, 60°, shank taper 2°
- 70-25.001 / 3 male centers, 60° type W12
- 1 chucks 6 jaws Ø100 [mm] type B for external gripping type W12

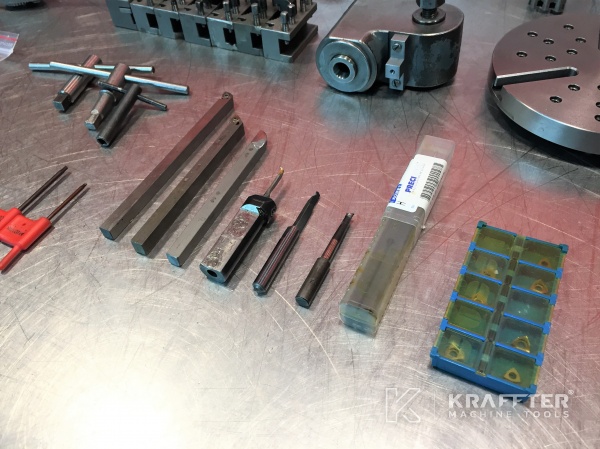

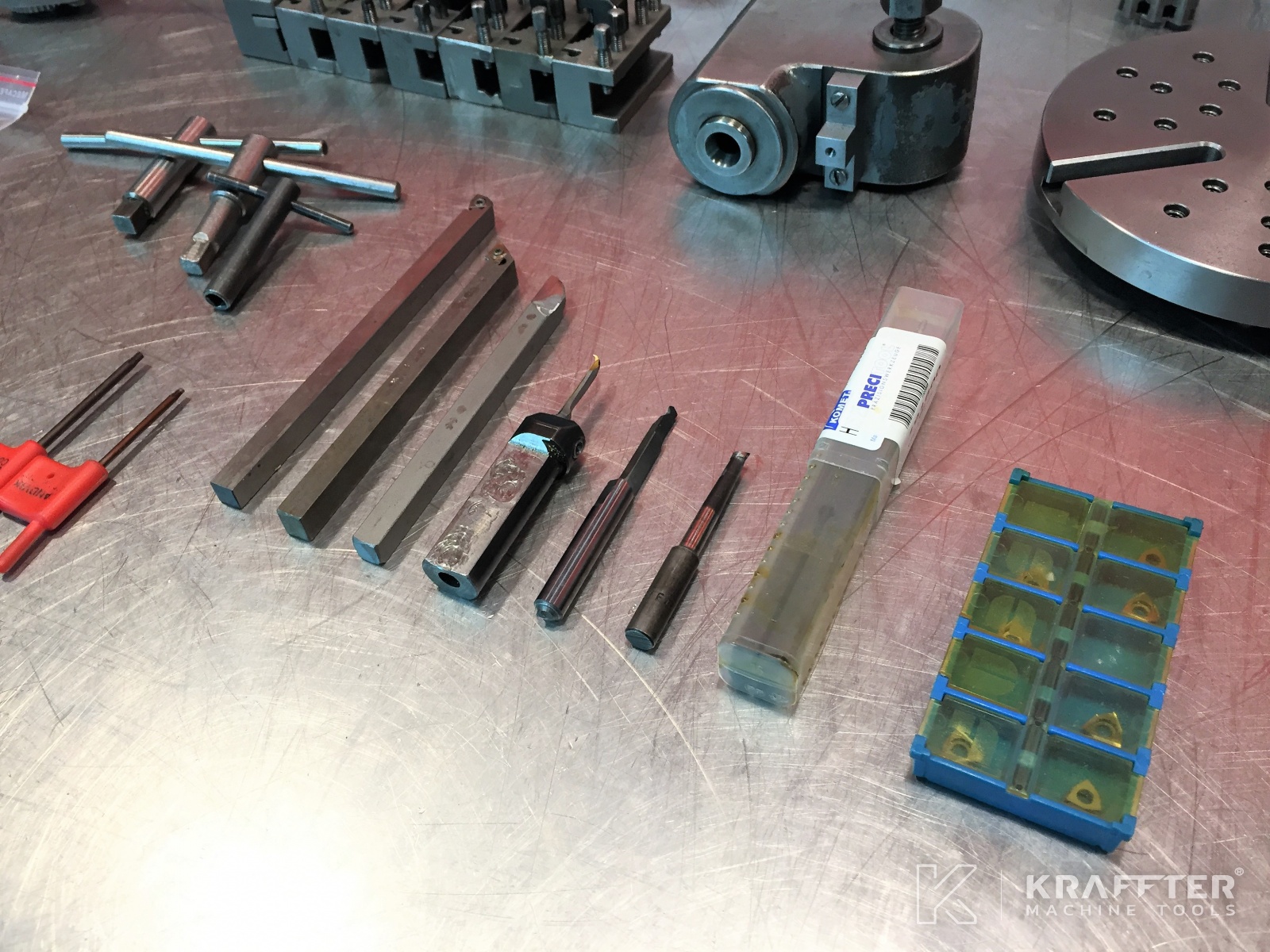

- Few cutting tools
- 4 rubber/metallic feet
