Venduto

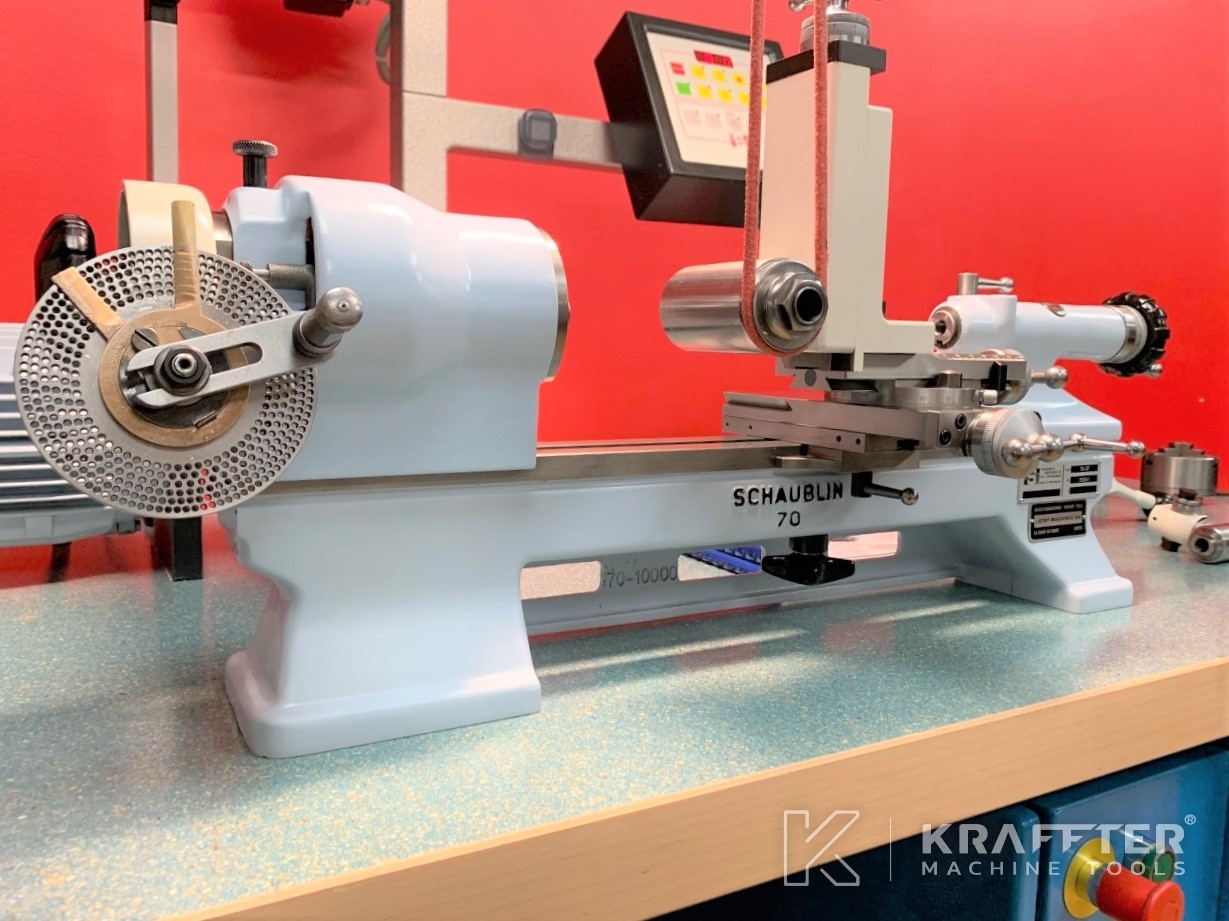

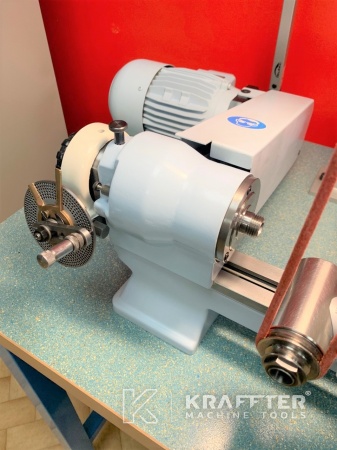

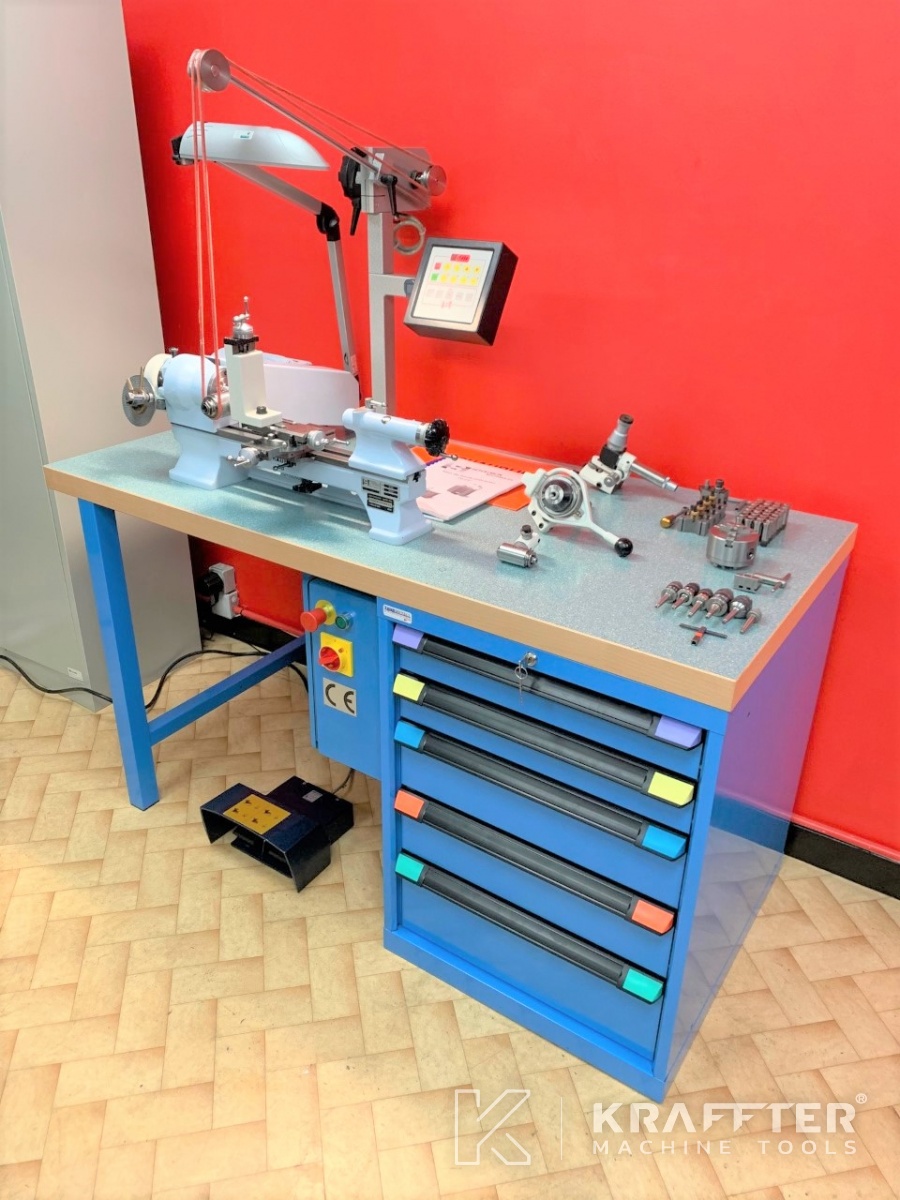

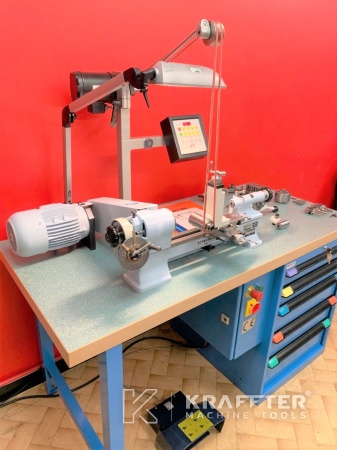

Tipo di macchina: Tornio convenzionale
Marca : SCHAUBLIN
N° de stock: 20689-949
Modello : 70-CF
Posizione : 73520 Saint-Béron, FRANCE
MACCHINA UTENSILE VENDUTA
Interessato a un modello simile?
Lasciaci i tuoi recapiti:
Caratteristiche tecniche
Numero di assi
2
Distanza tra punte
275 [mm]
Altezza delle punte
70
Diametro consentito sopra il carrello
85 [mm]
Mandrino fornito per pinze di serraggio
W12
Diametro passaggio mandrino
12 [mm]
Cono della contropunta
2°
Dispositivo di serraggio rapido delle pinze tramite leva
Sì
Torretta
Multifix type Aa
Tensione di alimentazione
400 [V]
Dimensioni
1500 x 700 x 1600
Peso
260 [Kg]

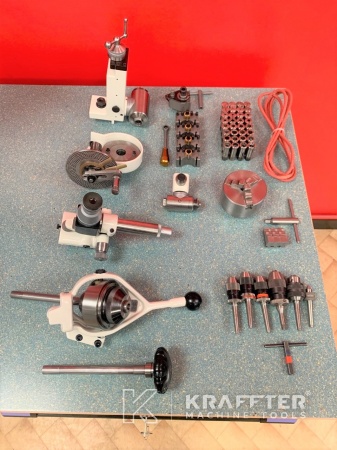

Ulteriori informazioni

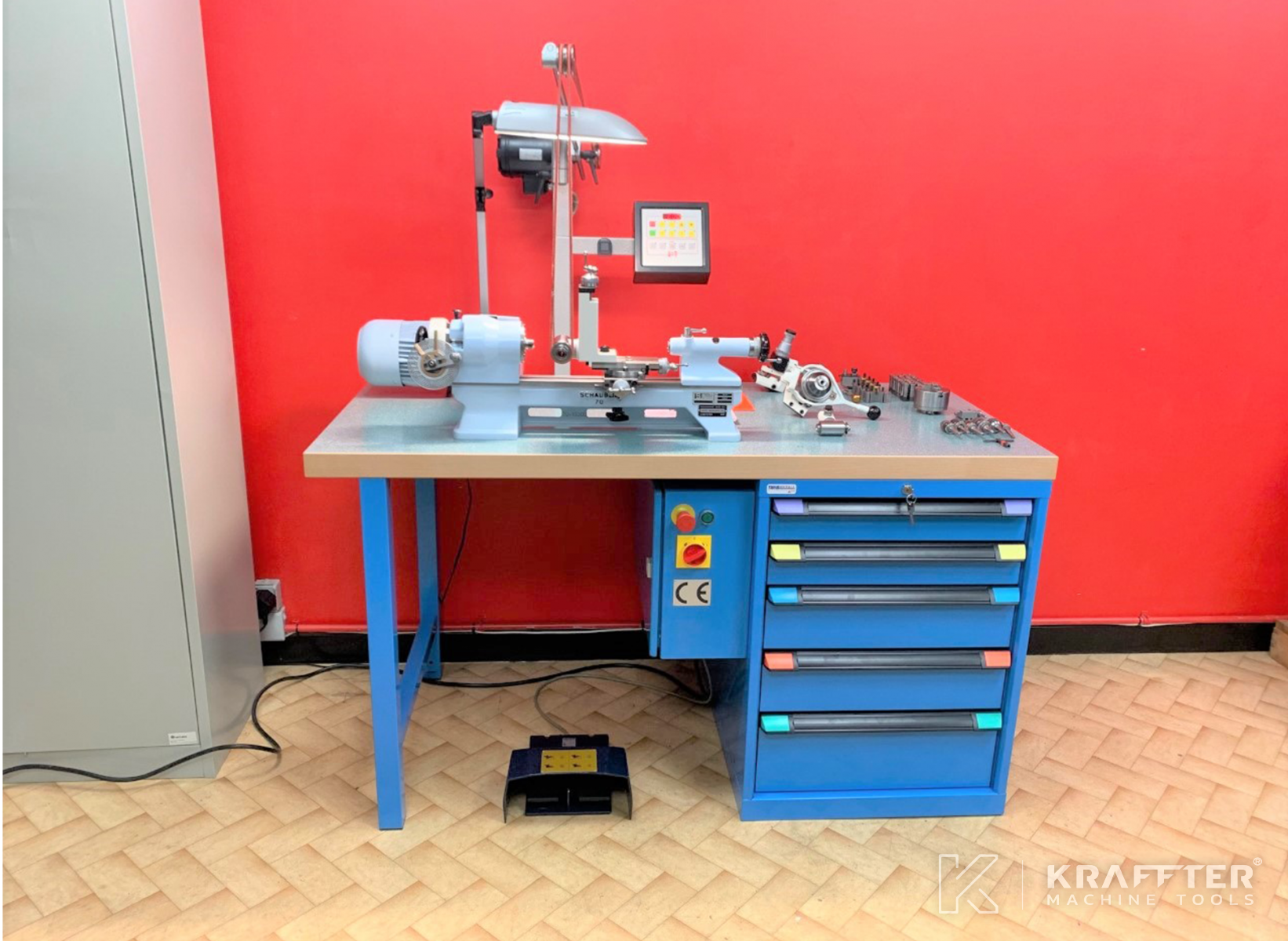

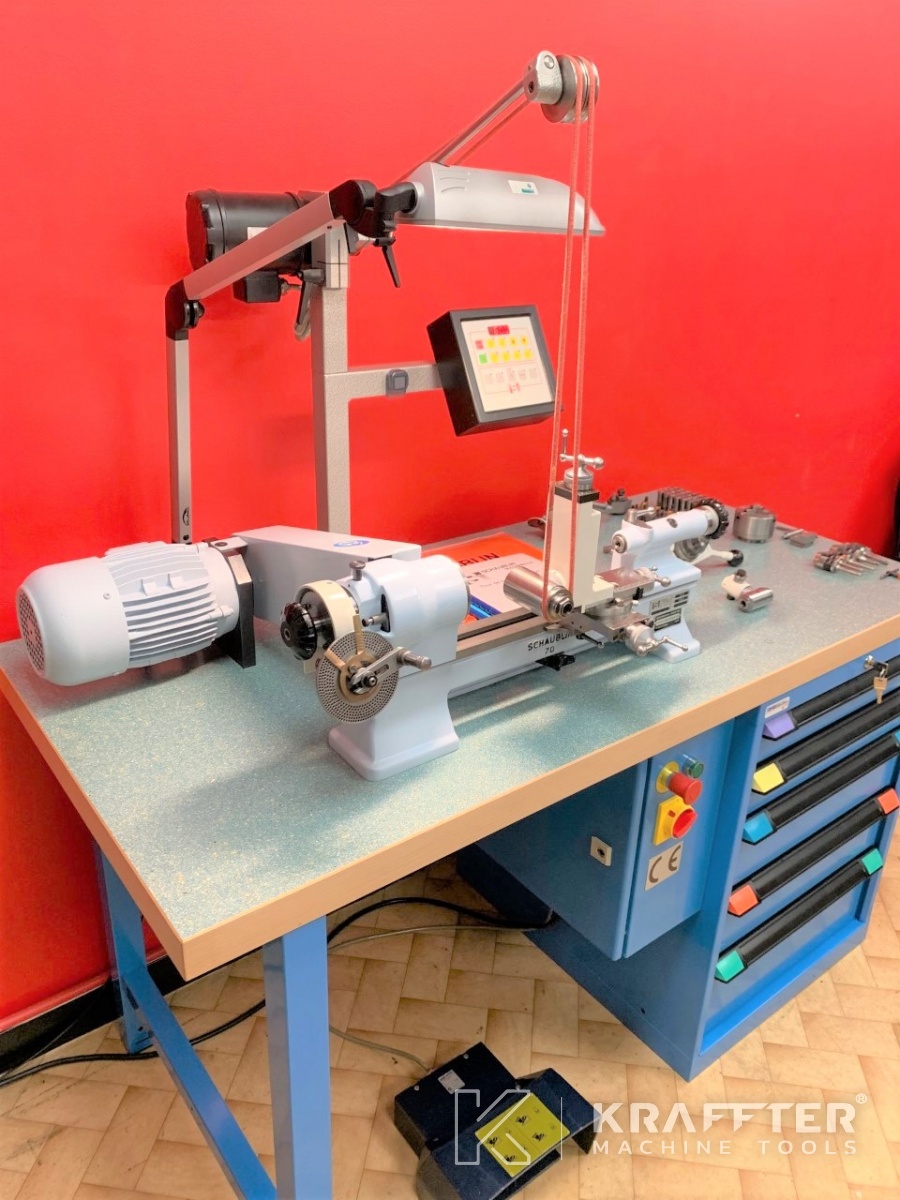

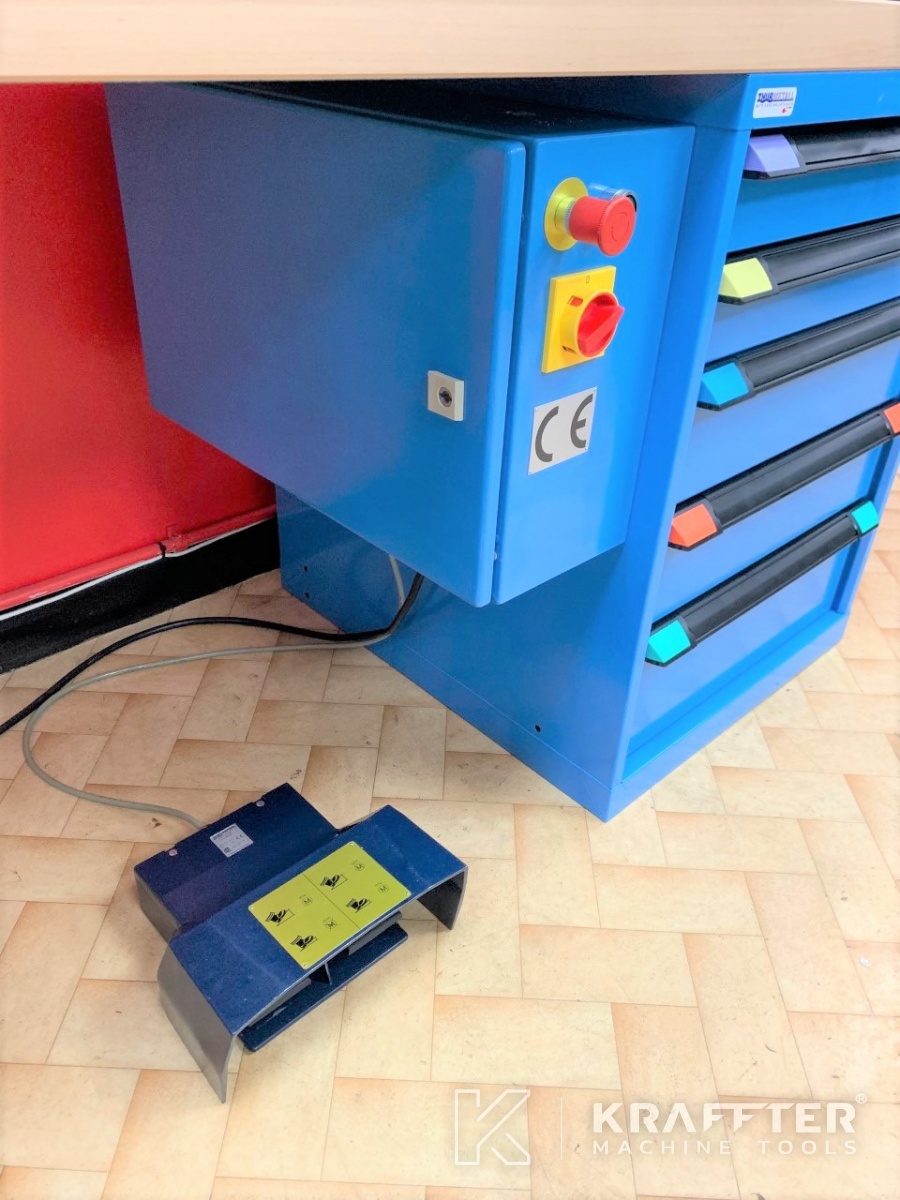

- 1 workbench THURMETALL (SWITZERLAND) 1500 x 700 [mm] – 5 drawers – colour RAL 5012 – blue urphen (thickness 50 mm)

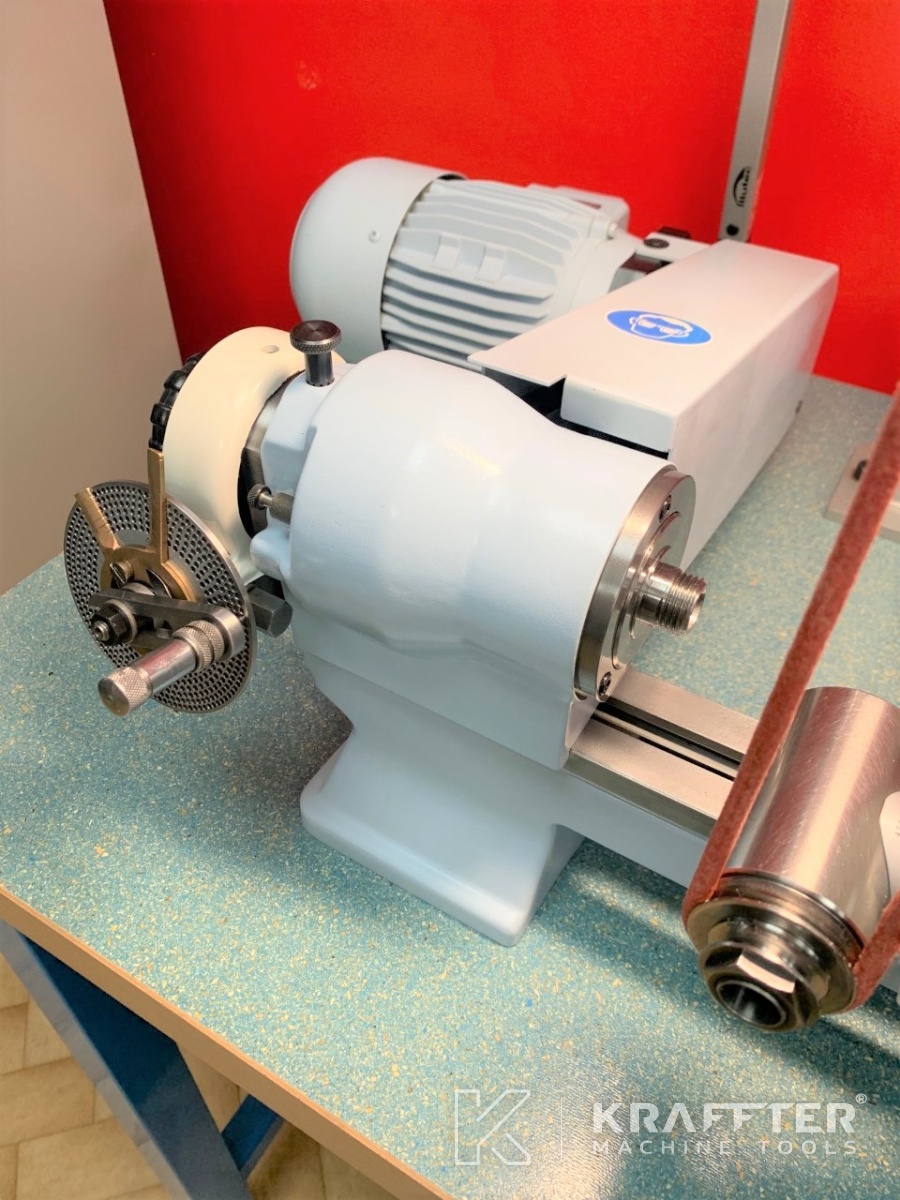

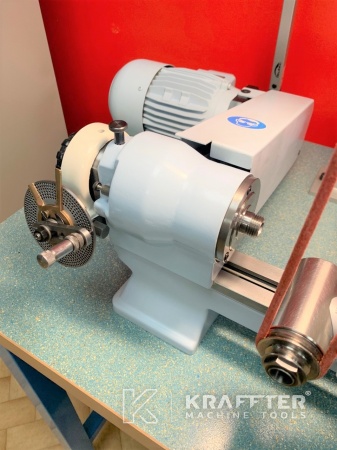

- 70-31 / 1 headstock for SCHAUBLIN W12 collets
- 70-12 / 1 bed

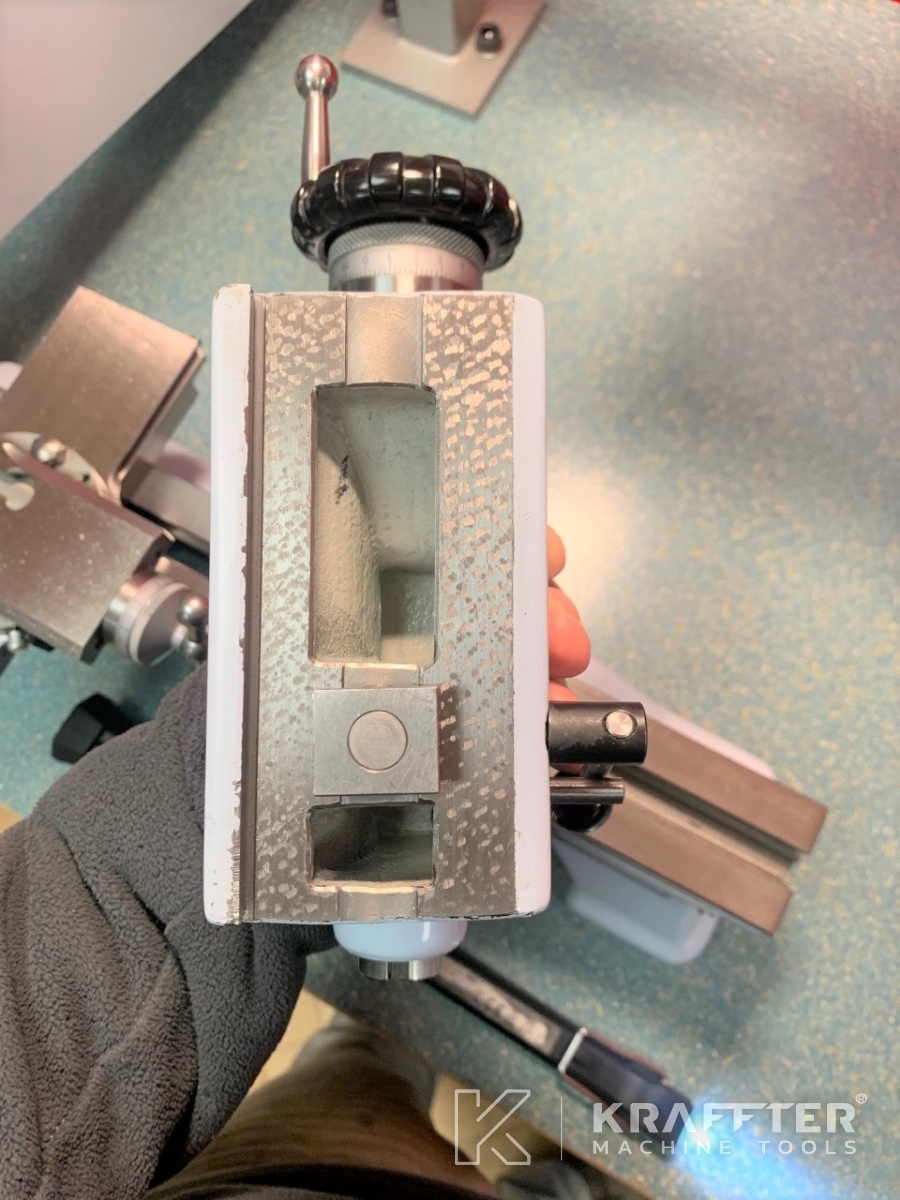

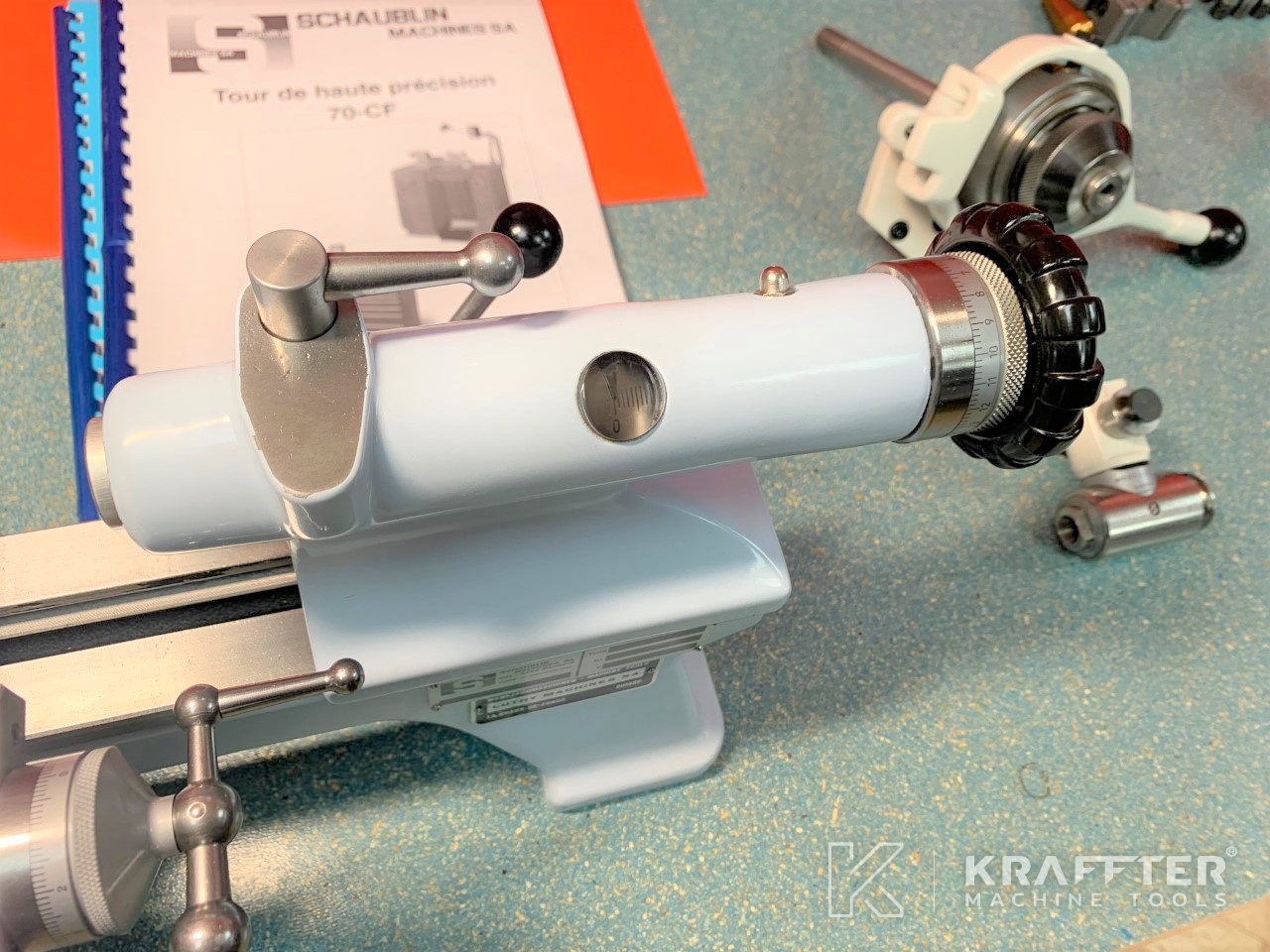

- 0070-65000-000 / 1 screw and handwhell operated tailstock with spindle 2°

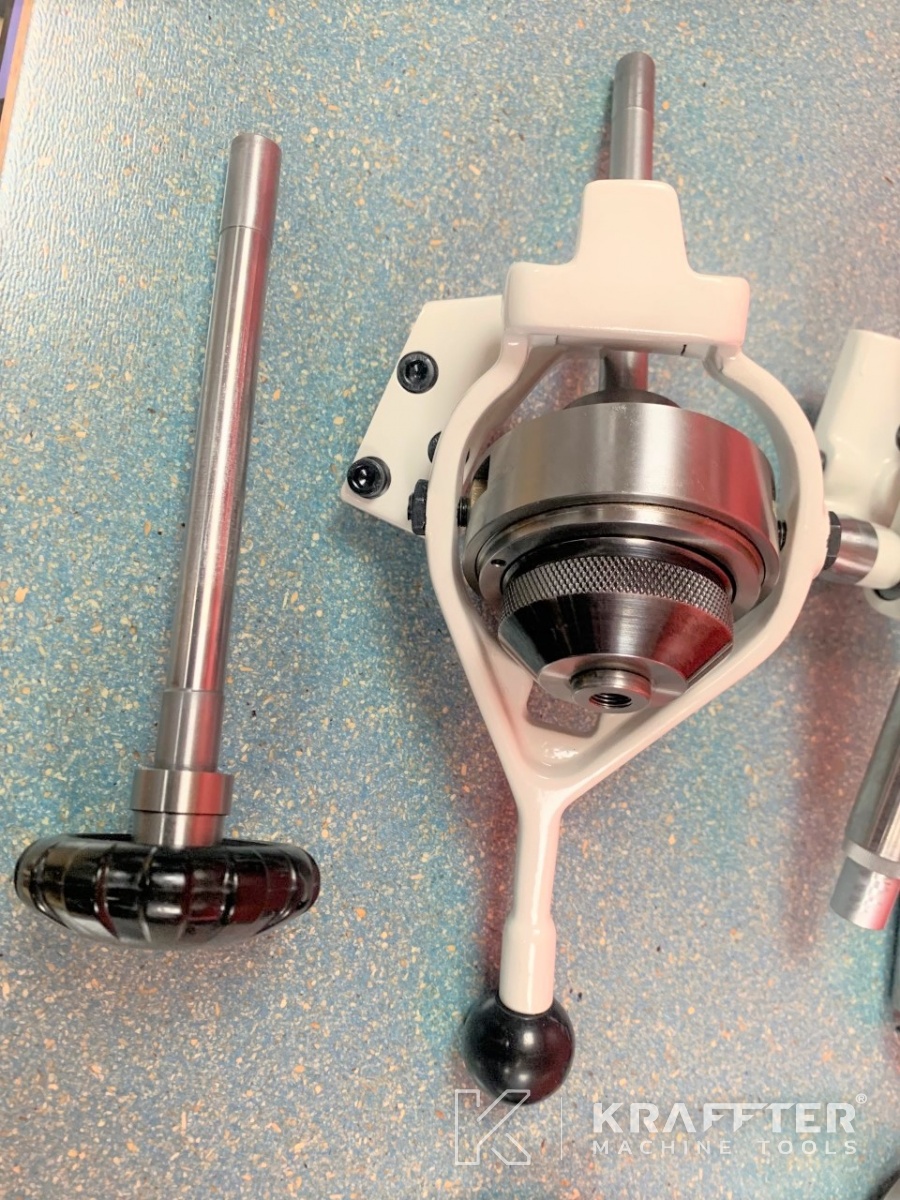

- 0270-30600-000 / 1 quick clamping device for SCHAUBLIN W12 collets

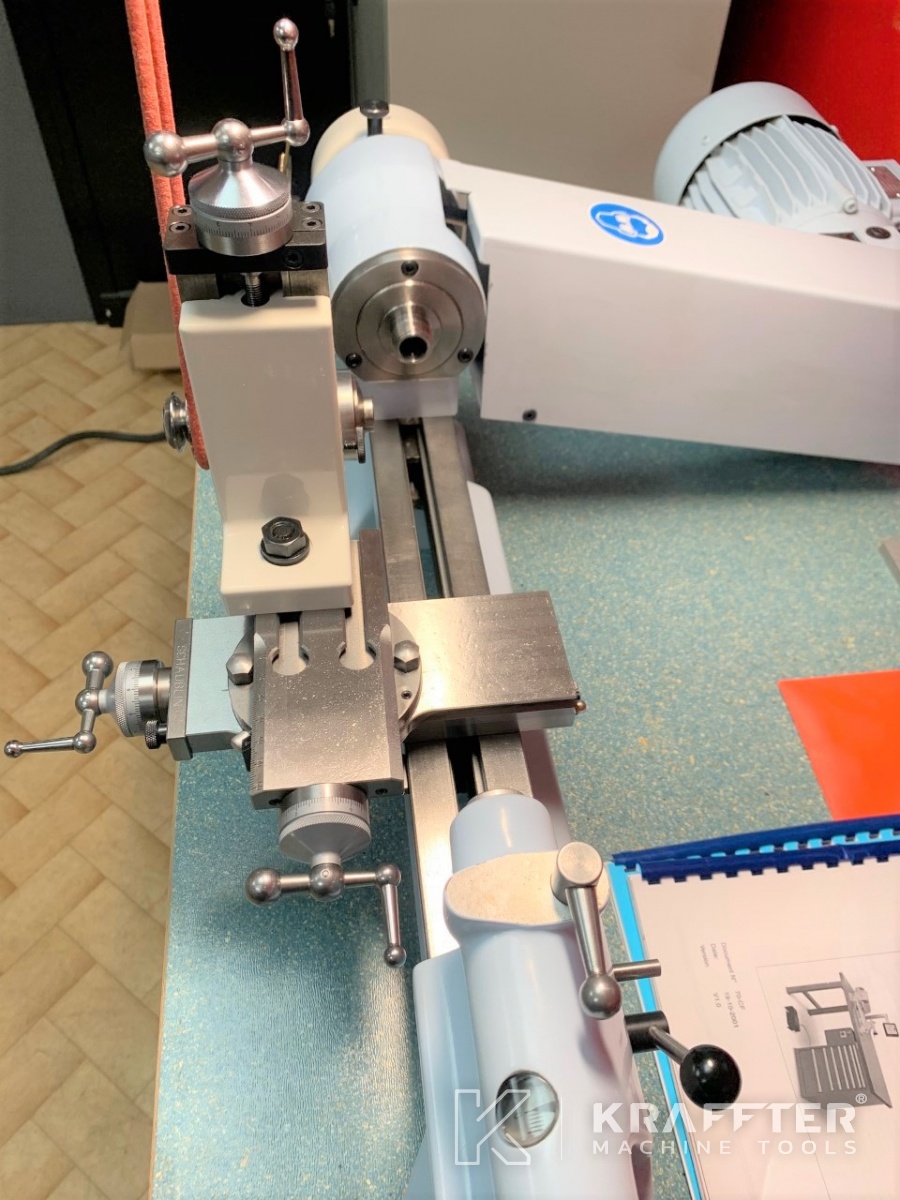

- 0070-45000-000 / 1 screw-operated carriage (screw/nut NEW on both axes)
- 1 foot-pedal for spindle control

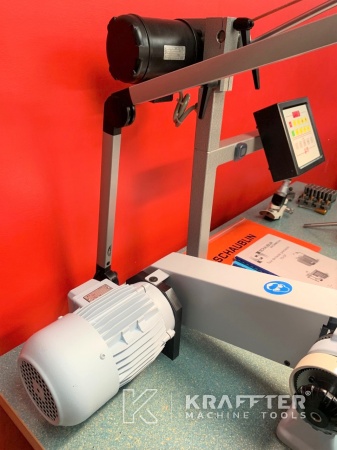

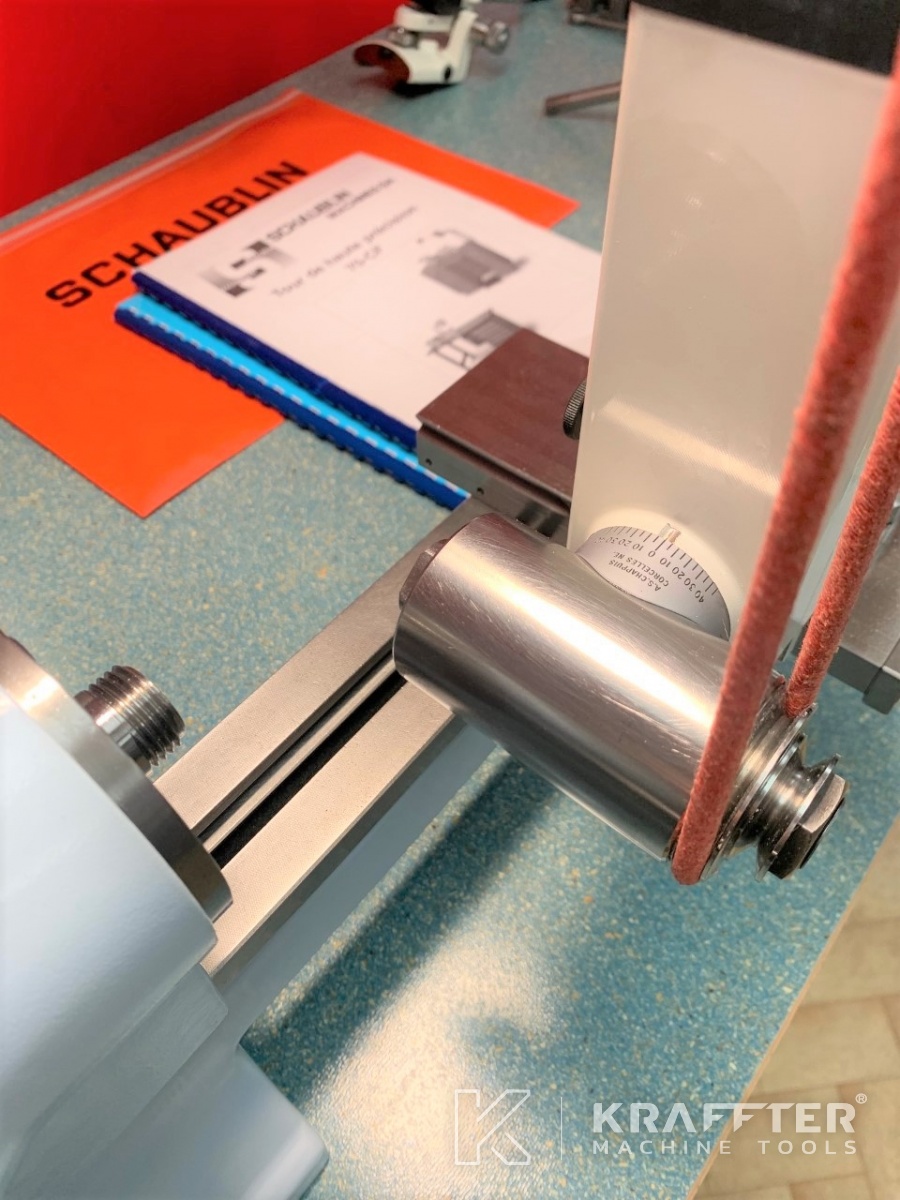

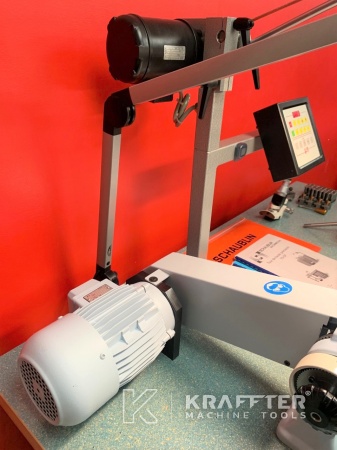

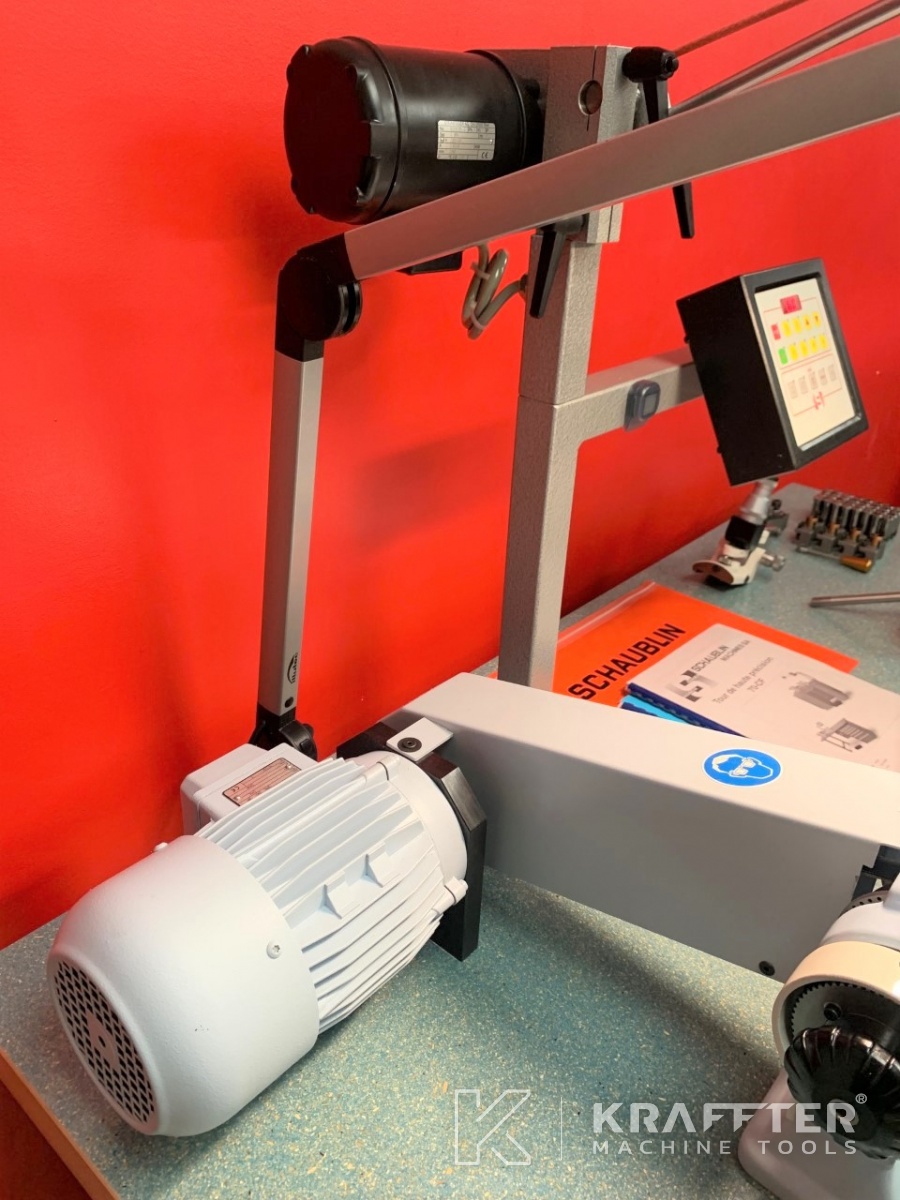

- 102-95.200 / 1 drive for CF version for milling or grinding attachment with belt including :
adjustable and swivelling belt-tensioning attachment

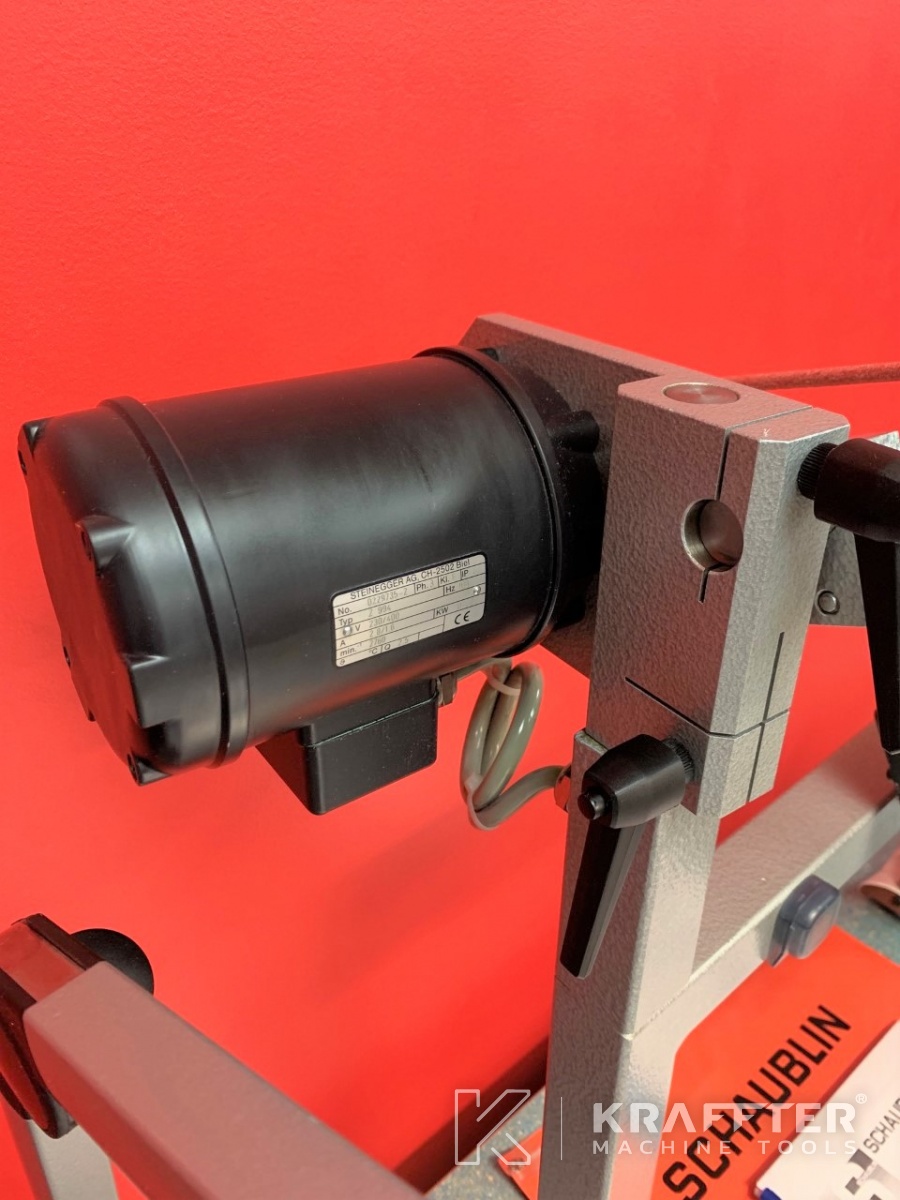

drive device complete with motor 0.44 kW
speed variation by frequency converter HF 3x 400 Vac
endless belt Ø6 [mm]

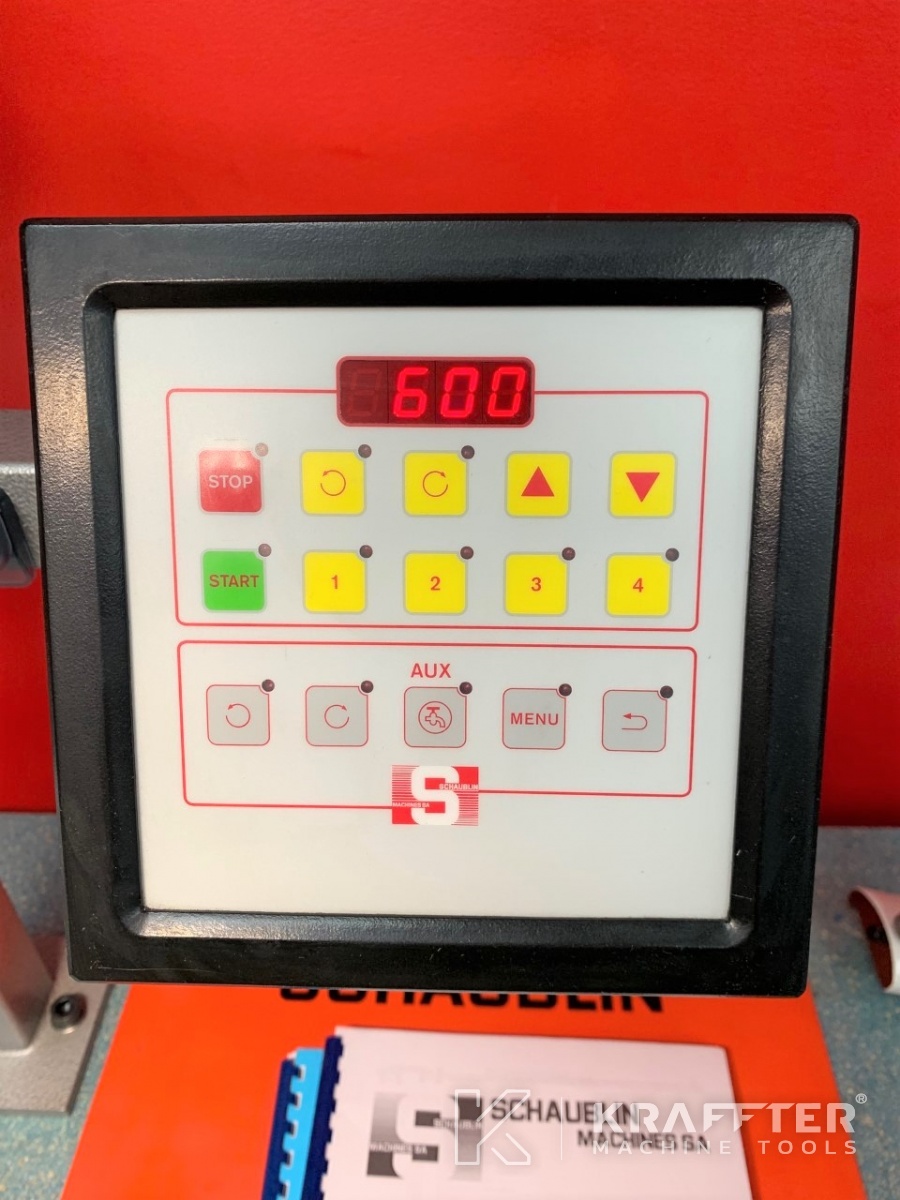

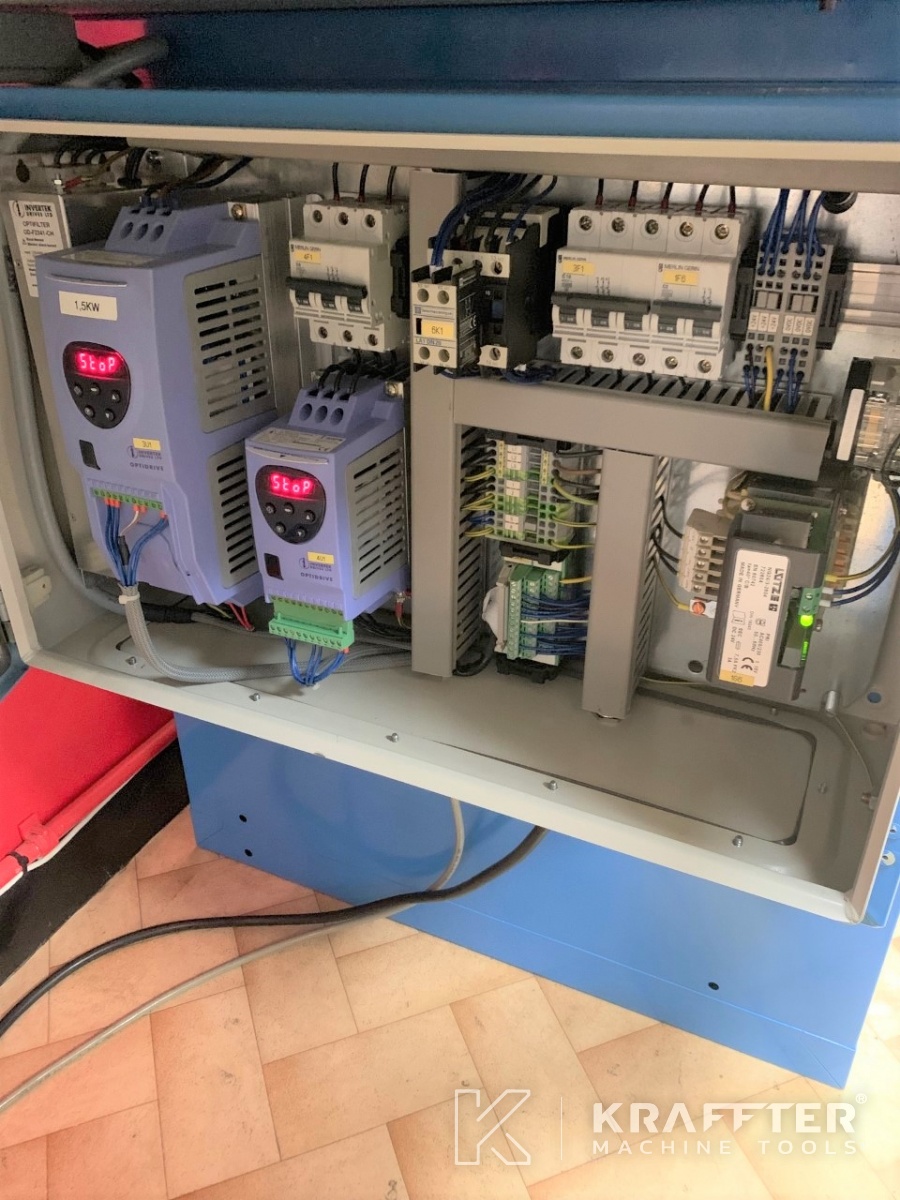

- 1 control pannel enabling the end user to programm the spindle, the milling/grinding attachment (if mounted) :
stepless adjustable spindle speed
preselection of spindle speeds
high torque at low speed
digital display of spindle speed
aditional controls for auxiliary functions
pedals functions configuration by menu

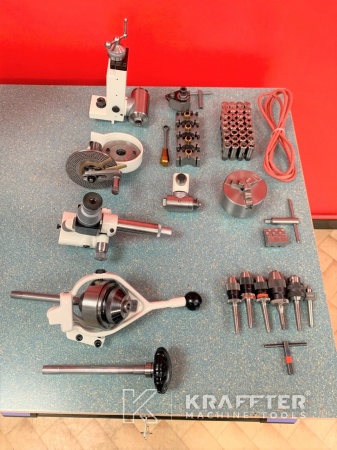

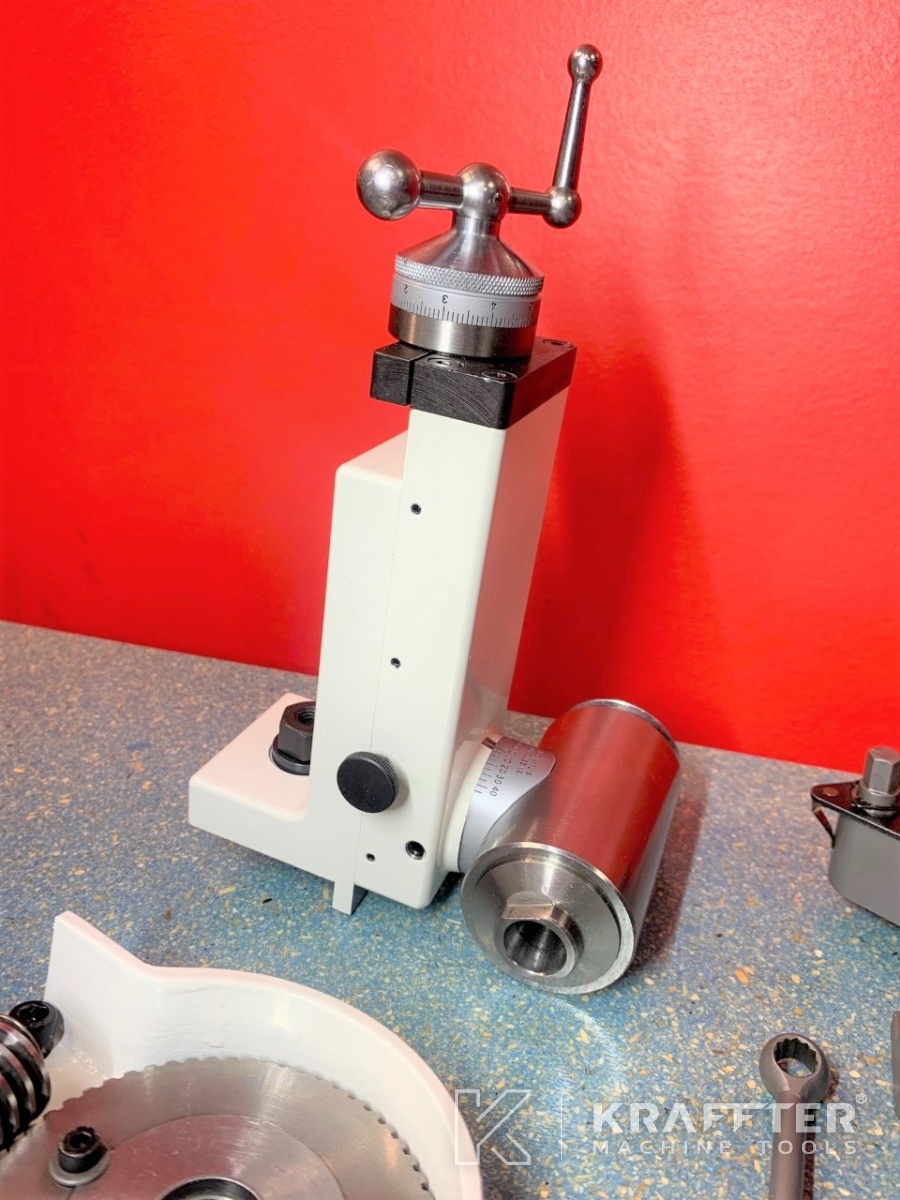

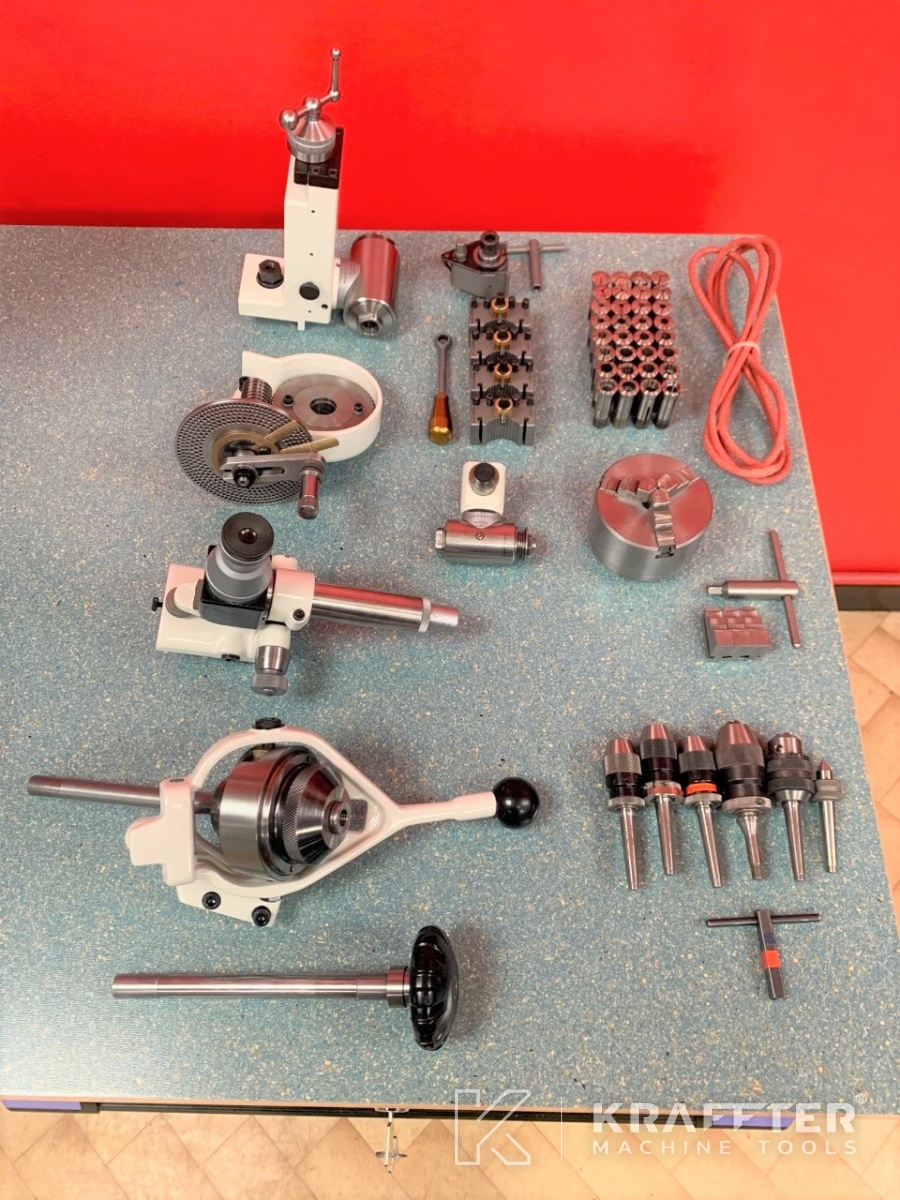

- 1 milling attachment A.S. CHAPPUIS for SCHAUBLIN W12 collets

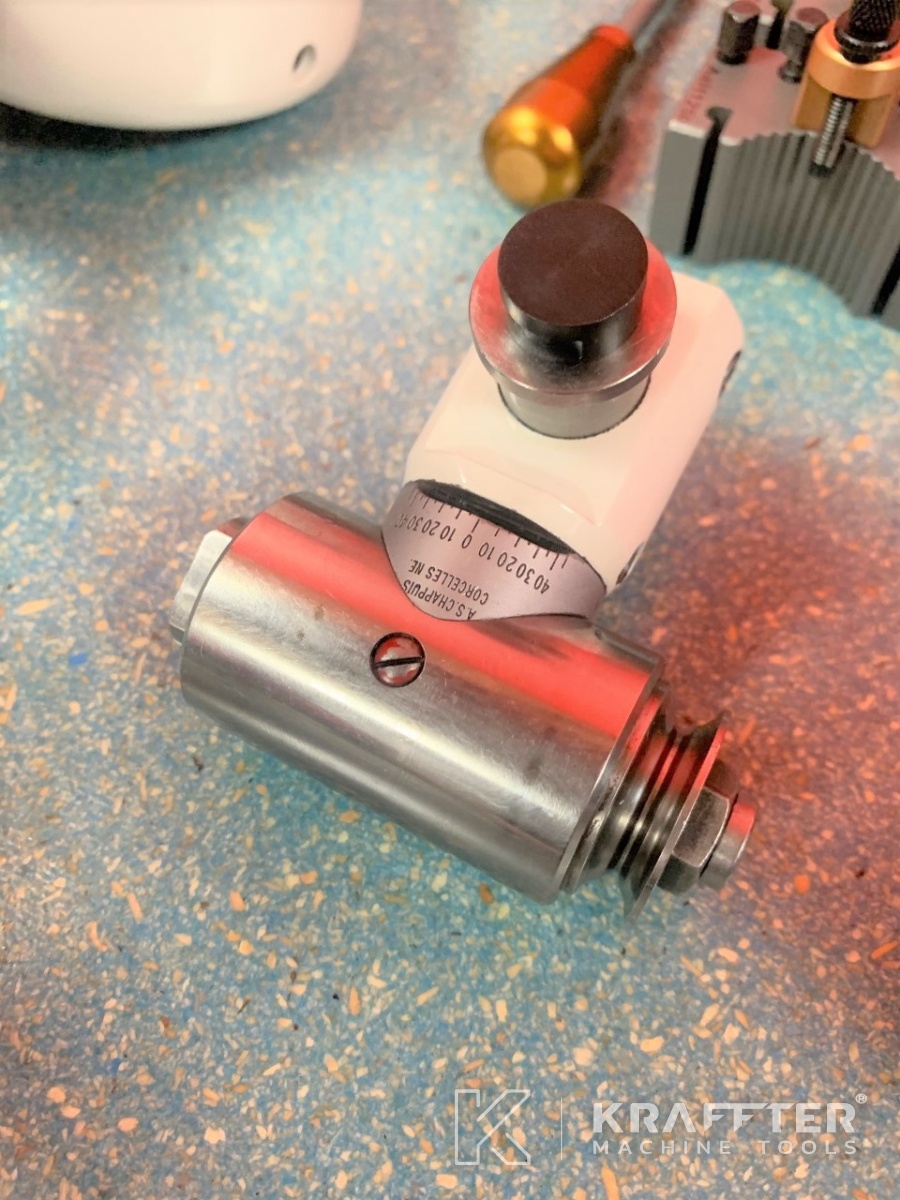

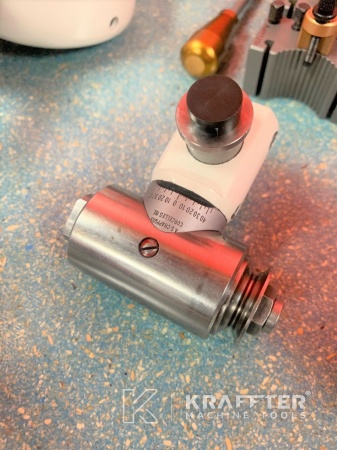

- 1 grinding attachment A.S. CHAPPUIS for B8 collets – speed max 30'000 RPM – spindle orientation over 360°

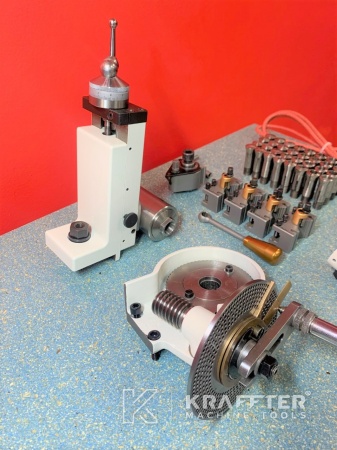

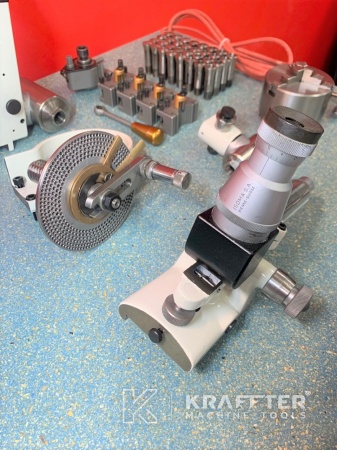

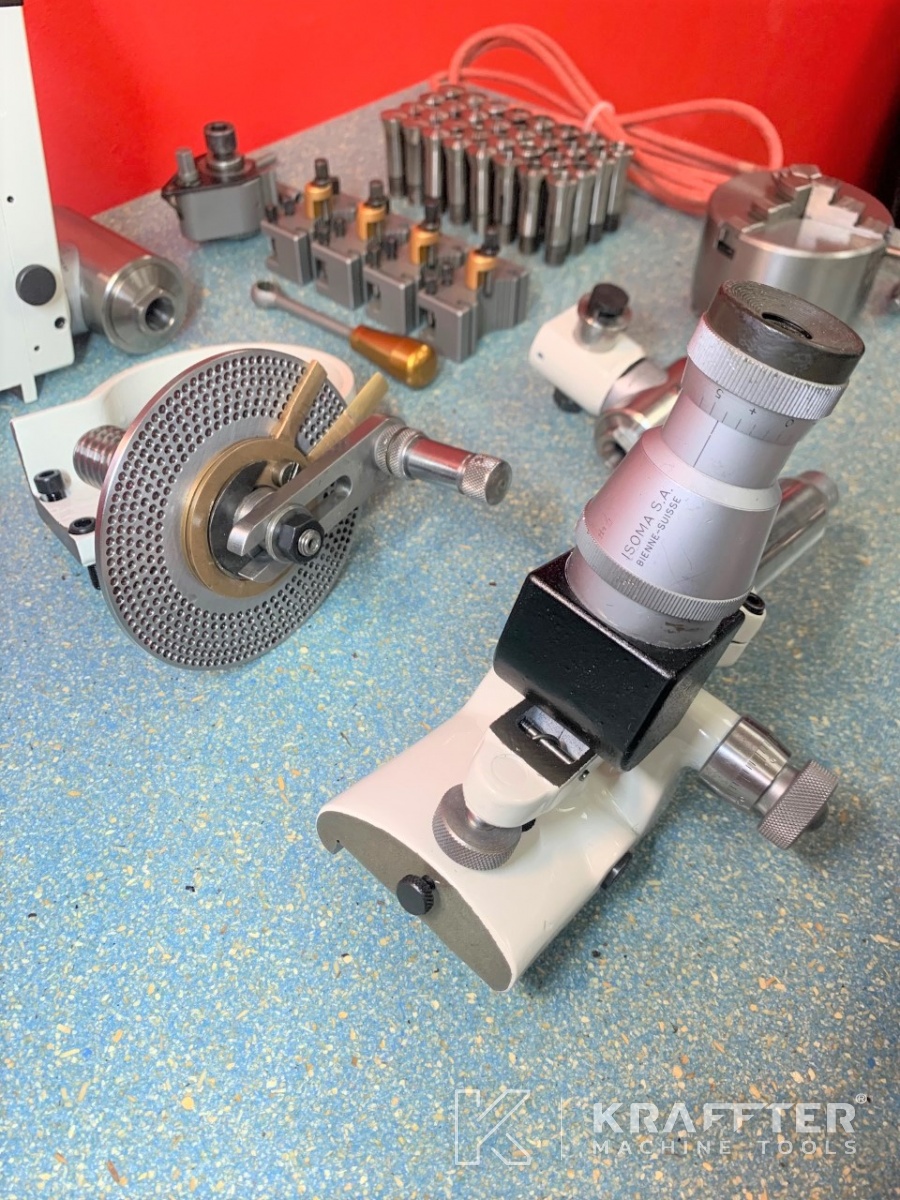

- 1 centring microscope ISOMA S.A. (BIENNE SWITZERLAND)

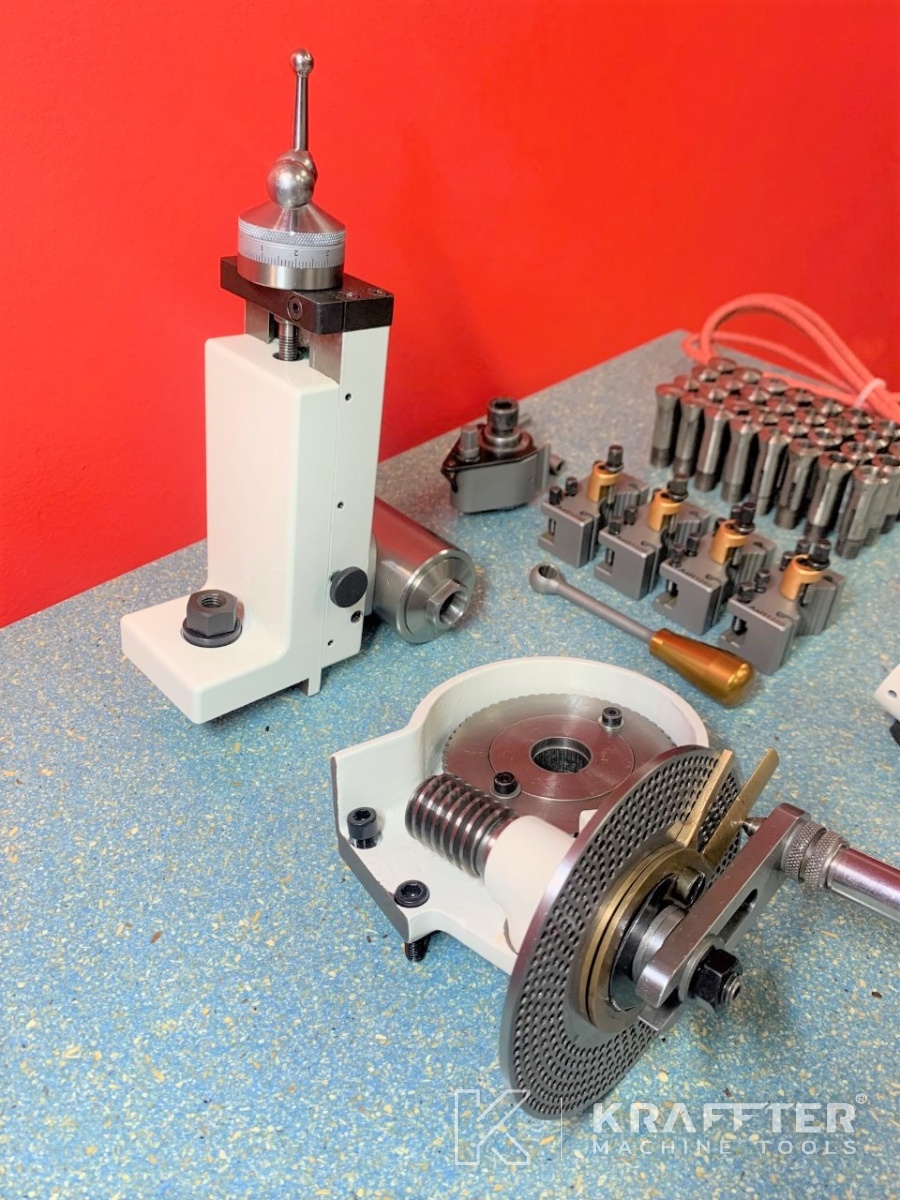

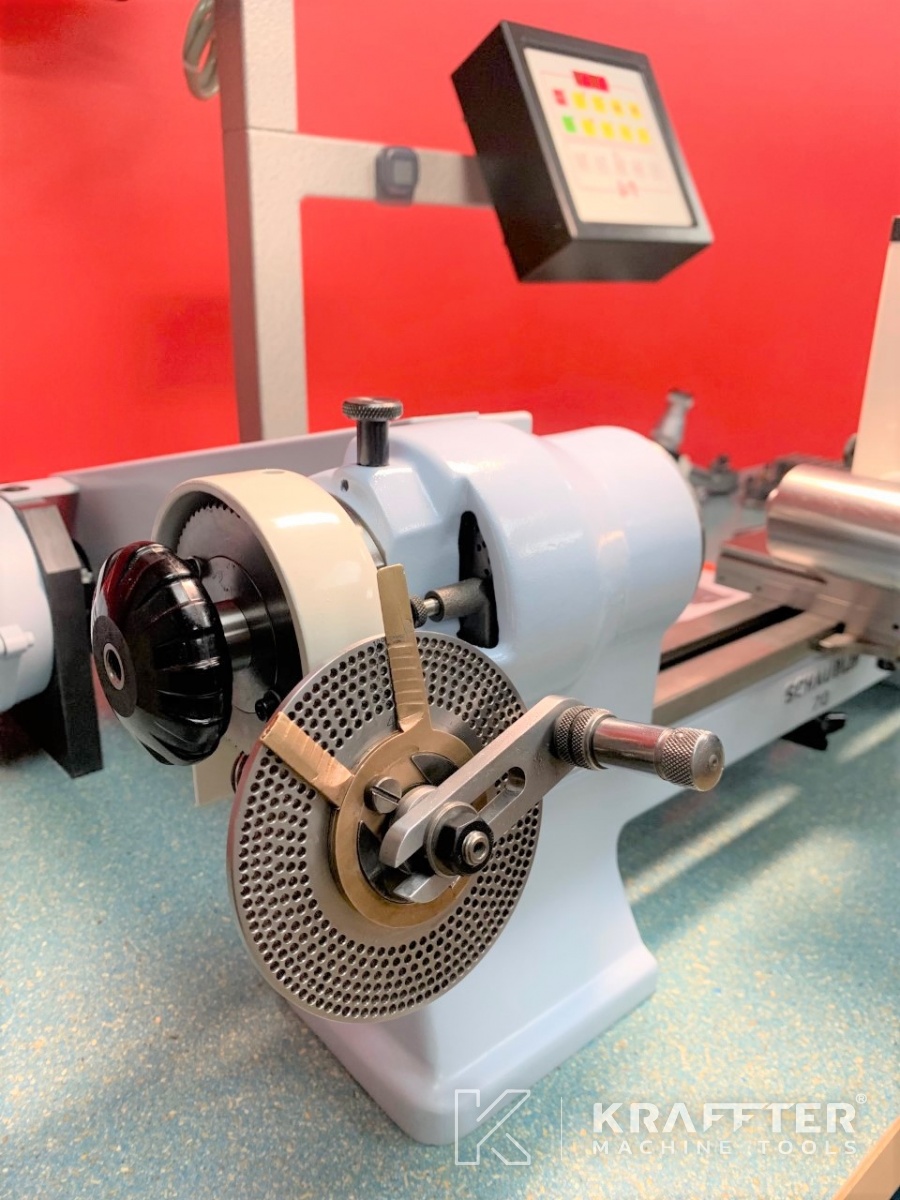

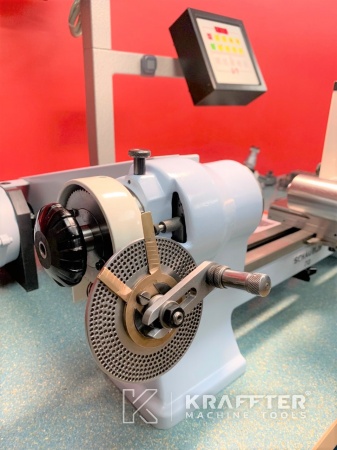

- 0070-21800-000 / 1 dividing attachment for W12 with 1 disc

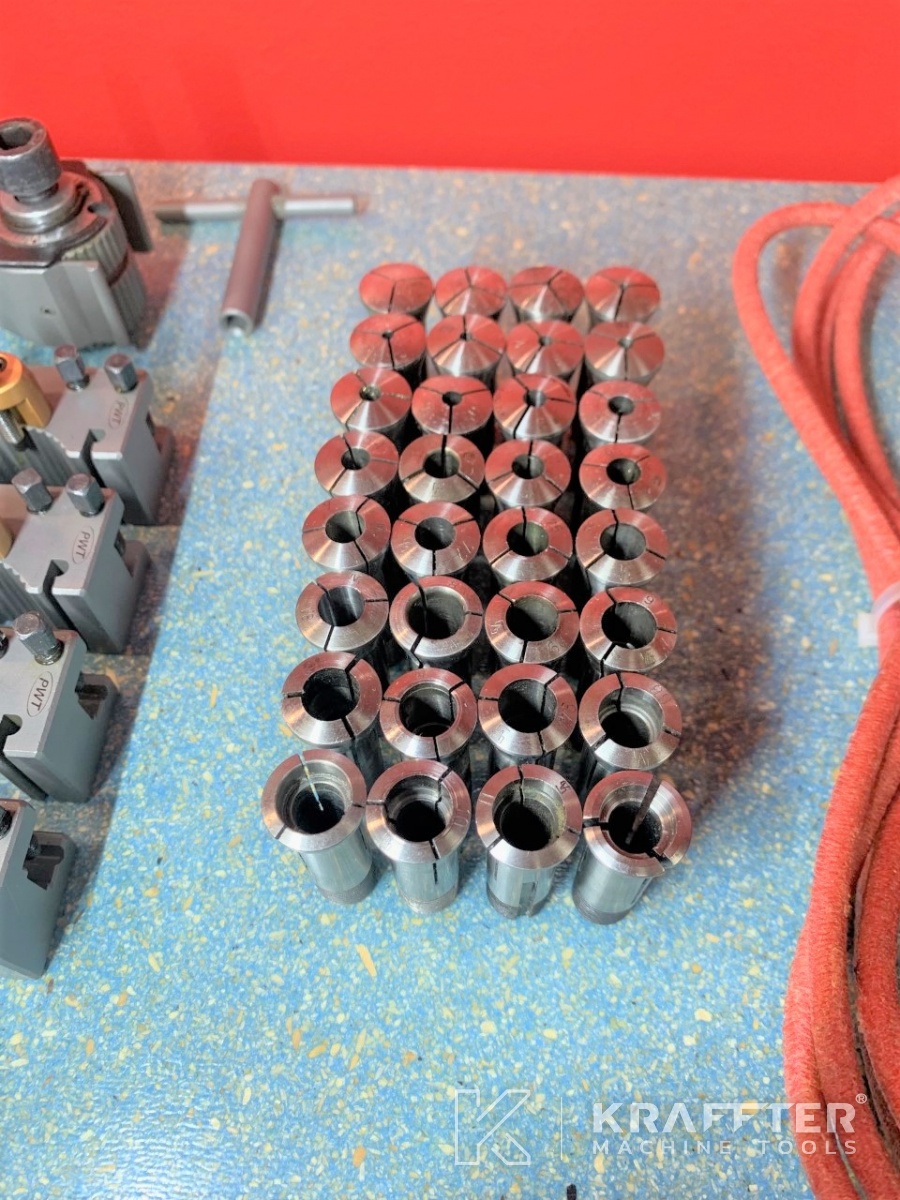

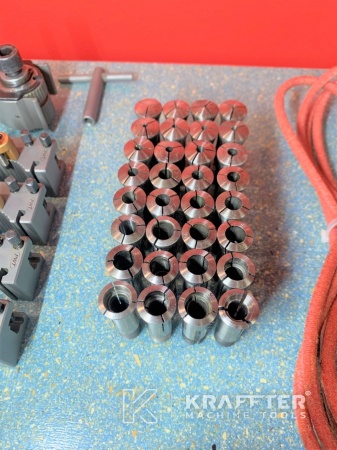

- 32 collets type SCHAUBLIN W12 from range Ø0.50 to 11.00 [mm]

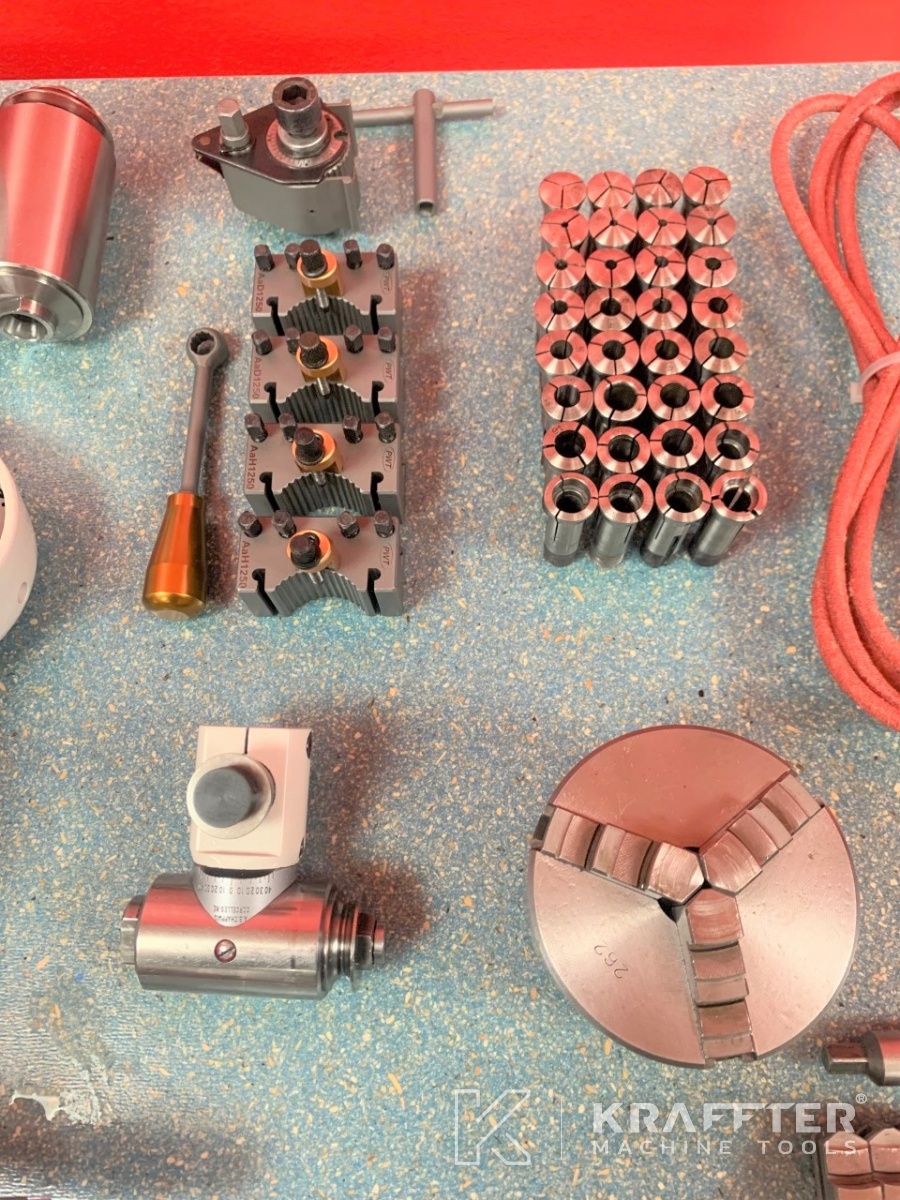

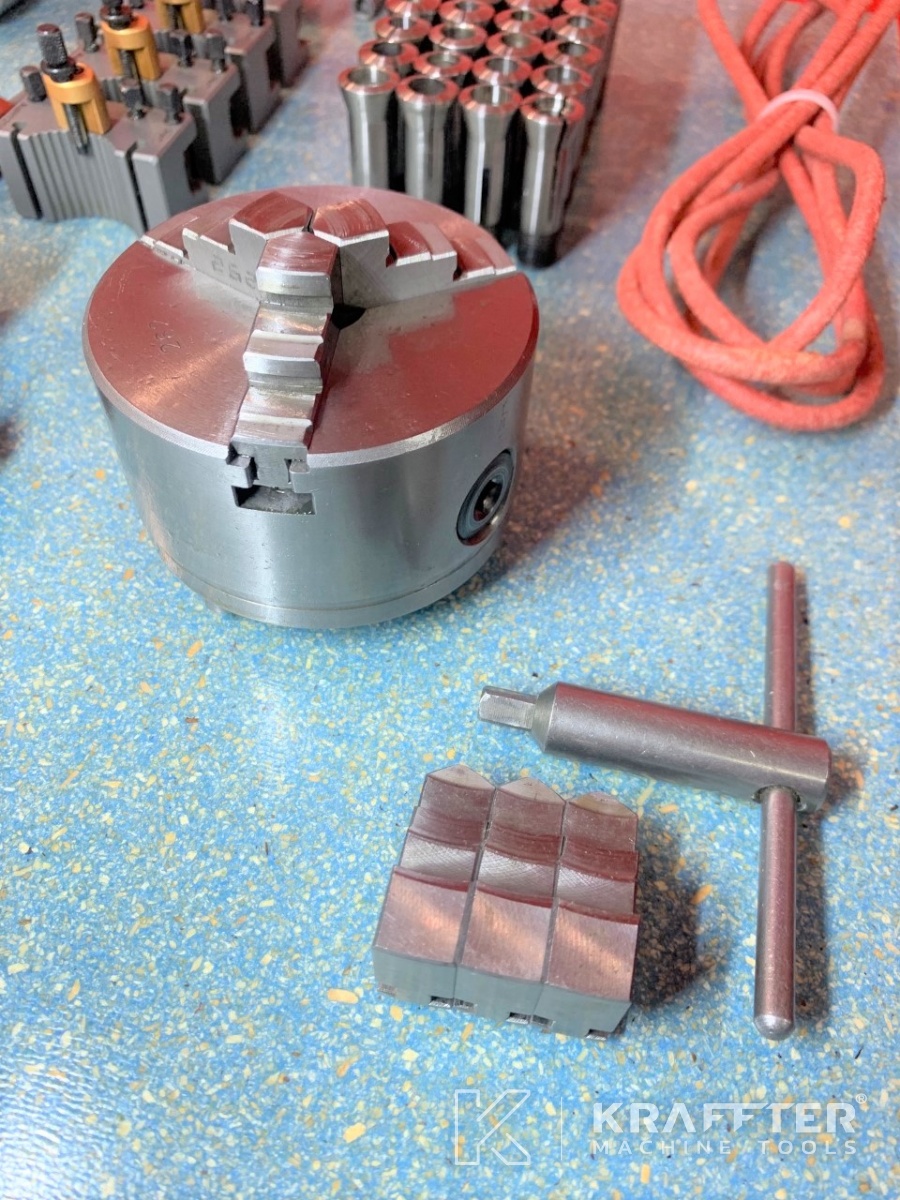

- 1 chuck Ø80 [mm] 3 concentric jaws
- 1 set of 3 external jaws for 3 jaw chuck Ø80 [mm]
- 1 set of 3 internal jaws for 3 jaw chuck Ø80 [mm]
- 1 quick-change toolholder turret MULTIFIX Aa design + 1 locking lever + 1 key + 1 bolt Aag 16 for T-slot
- 4 tool-holders MULTIFIX Aa design

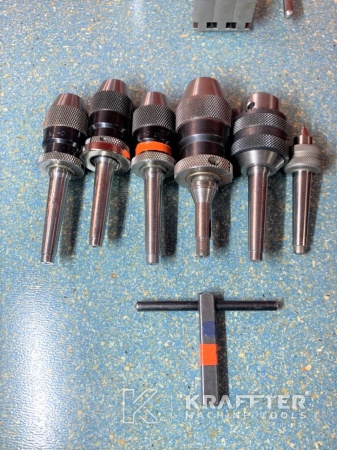

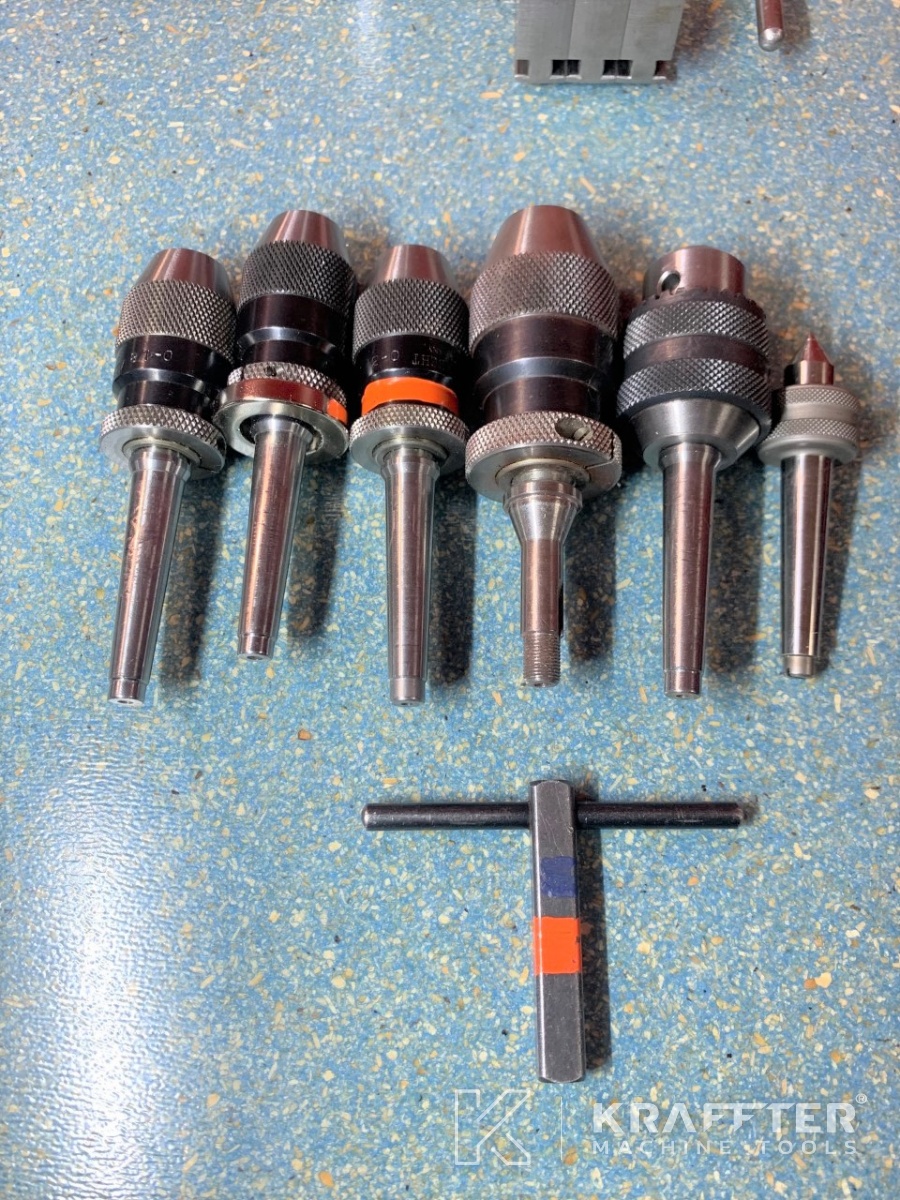

- 3 ALBRECHT GERMANY drill chucks, tapper 2°, on arbor, capacity 0-3 [mm]
- 1 drill chuck ALBRECHT GERMANY on type B8 arbor, capacity 0-5 [mm]
- 70-74.041 / 1 revolving male center 60°, with taper roller bearing
- 1 workbench lamp
